Glass cutting line machine

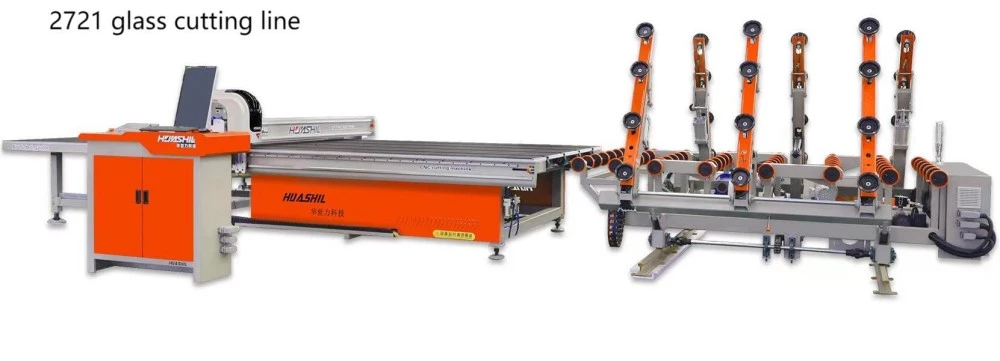

HSL-LSX2721 Glass Cutting Line Machine: Precision and Efficiency for Your Glass Processing Needs

Huashil Machine is a leading product manufacturer and supplier. Our HSL-LSX2721 glass cutting line machine offers unparalleled precision, efficiency, and versatility for various glass processing applications. With over a decade of export experience, Huashil Machine provides reliable, high-performance solutions backed by professional after-sales support.

Cutting finished product type:

Functions & Features:

1.Cutting technology and automatic oil supply:

A:Professional glass cutting control system realizes automatic cutting of straight and special-shaped glass, greatly improving glass cutting efficiency.

B:The pressure of the cutting head is controlled by an electromechanical precision pressure valve. The uniform output pressure of the cylinder allows the cutting head to perfectly fit the glass surface for cutting, thus avoiding the cutting phenomenon caused by glass quality problems .

C:When cutting glass, the cutting oil is automatically filled using pneumatic pressure control, and moves synchronously with the cutting head through the PLC control system .

 2.Optimization software and special-shaped libraries:

Compatible with the standard G code of Italian OPTIMA optimization software and domestic Guiyou software: achieving versatility in processing files in different formats.

3.Automatic edge positioning and intelligent special-shaped scanning:

Automatic edge-finding and positioning of glass: Accurately detects the actual position and deflection angle of the glass, and automatically adjusts the cutting path of the cutter head to improve efficiency.

4.Telescopic boom and automatic loading:

Equipped with 3 big arms, each big arm is equipped with 4 sets of NBR suction cups to absorb glass, ensuring the stability and reliability of loading large glass sheets.

5.Air floating countertop:

Cutting table and breaking table are equipped with air holes, and centrifugal fans provide high-pressure airflow to facilitate the transportation or shifting of glass while preventing scratches on the table.

6.Glass conveying:

After glass cutting, glass is transported to the air flotation breaking table through three synchronous conveying belts and the air flotation system for breaking operations.

7.Automatic labeling:

Replace manual labeling. The printer automatically prints out a label recording the glass information, and the fingers of the labeling cylinder grab the label and stick it on the surface of the corresponding glass piece. The standard machine head for labeling has high labeling efficiency. (Customers are recommended to configure the labeling function )

Why Choose Huashil?

✅ 10+ Years Expertise – Trusted by glass manufacturers in 30+ countries.
✅ End-to-End Customization – Tailor machines to your glass thickness, size, and workflow.
✅ Optima Software – Smart optimization for minimal material waste.
✅ Fast Delivery – Standard units ship in 15–20 days.
✅ 24/7 After-Sales Support – Global technicians and spare parts network.

Key Features & Advantages

✔ 3-Table System – Loading, cutting, and breaking tables for seamless workflow.
✔ Adjustable 2+2 Stations – Configure for above/under-ground rail operation.
✔ 6 Grand Arms (3 per side) – Secure handling for max glass size: 2700×2100mm.
✔ High-Accuracy Cutting – ±0.1mm precision with diamond wheel tech.
✔ Multi-Glass Compatibility – Processes architectural, automotive, solar, and more.

Product Parameters

Product Details

The HSL-LSX2721 glass cutting line machine is designed for optimal performance in various glass processing applications. Its three-table system ensures smooth workflow from loading to cutting and breaking. The Optima software maximizes material utilization, reducing waste and improving efficiency.

Quality Control

Huashil Machine implements rigorous quality control measures throughout the production process. Each product undergoes thorough testing and inspection before shipment.

Customization Options

We offer customization options to meet your specific requirements, including rail system configuration, station setup, and machine color.

Certification

Our products comply with international standards and come with necessary certifications for global markets.

After-Sales Service

Huashil Machine provides comprehensive after-sales support, including installation guidance, training, and prompt technical assistance.

Packaging

The HSL-LSX2721 glass cutting line machine is carefully packaged to ensure safe transportation and delivery.

Company Introduction

Huashil Machine is a professional product manufacturer with over ten years of experience in the industry. We prioritize innovation, quality, and customer satisfaction.

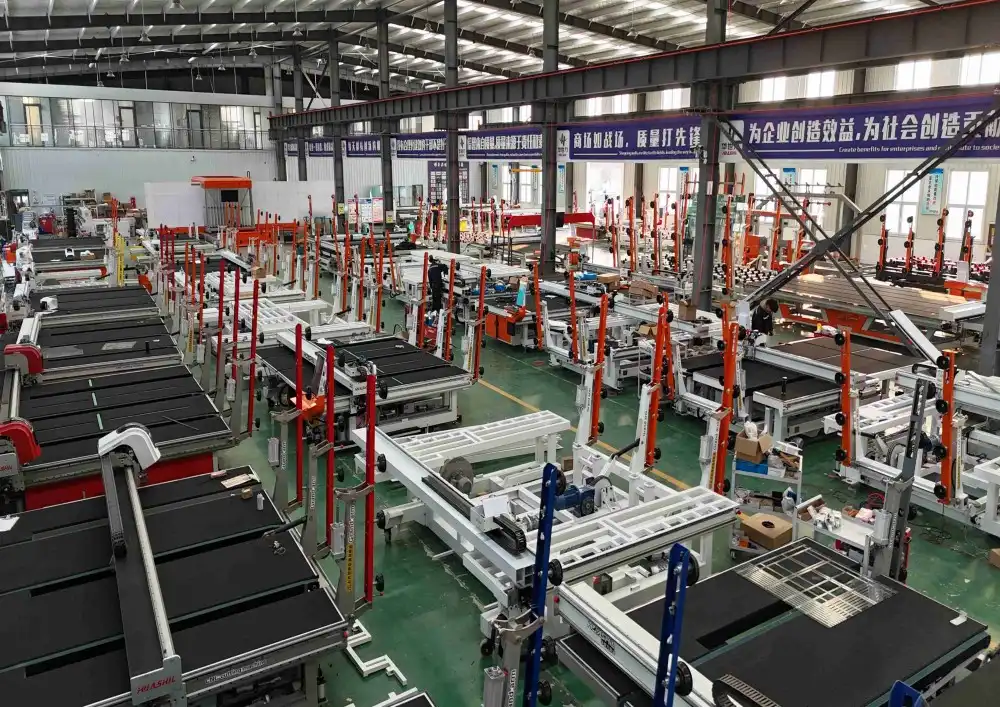

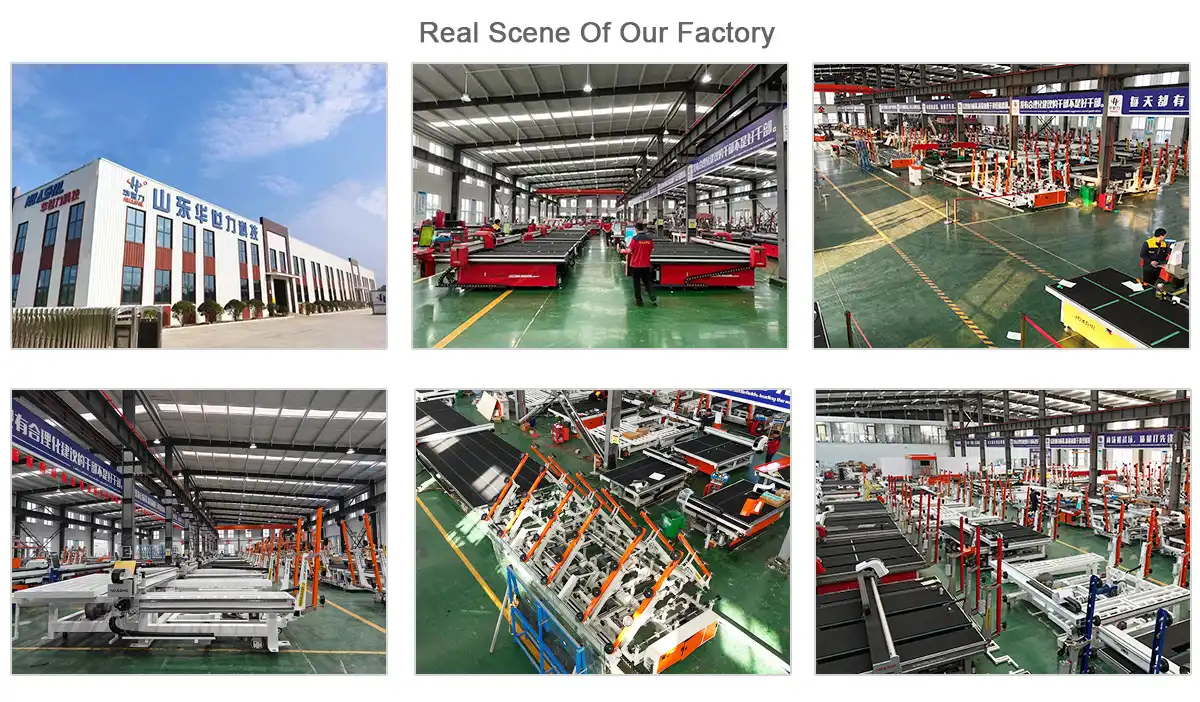

Our Factory

Our state-of-the-art factory is equipped with advanced production facilities and staffed by skilled technicians to ensure the highest quality standards.

Successful Cases

We have numerous successful installations of our products in various industries worldwide, demonstrating our machines' reliability and performance.

Exhibitions

Huashil Machine regularly participates in international trade shows to showcase our latest product innovations.

FAQ

Q: What is the warranty period for the HSL-LSX2721 glass cutting line machine?

A: We offer a standard one-year warranty with options for extended coverage.

Q: Can the machine handle different glass thicknesses?

A: Yes, the HSL-LSX2721 can be adjusted to accommodate various glass thicknesses.

Q: How long does installation and training take?

A: Typically, installation and basic training can be completed within a week.

Q: Do you provide spare parts for the product?

A: Yes, we stock a comprehensive range of spare parts for quick replacements.

Q: Can the Optima software be integrated with our existing systems?

A: Our technical team can assist with integrating the Optima software into your current workflow.

Contact Us

For more information about our product or to request a quote, please contact us at salescathy@sdhuashil.com. Choose Huashil Machine for your product needs and experience the difference in quality, efficiency, and support.
