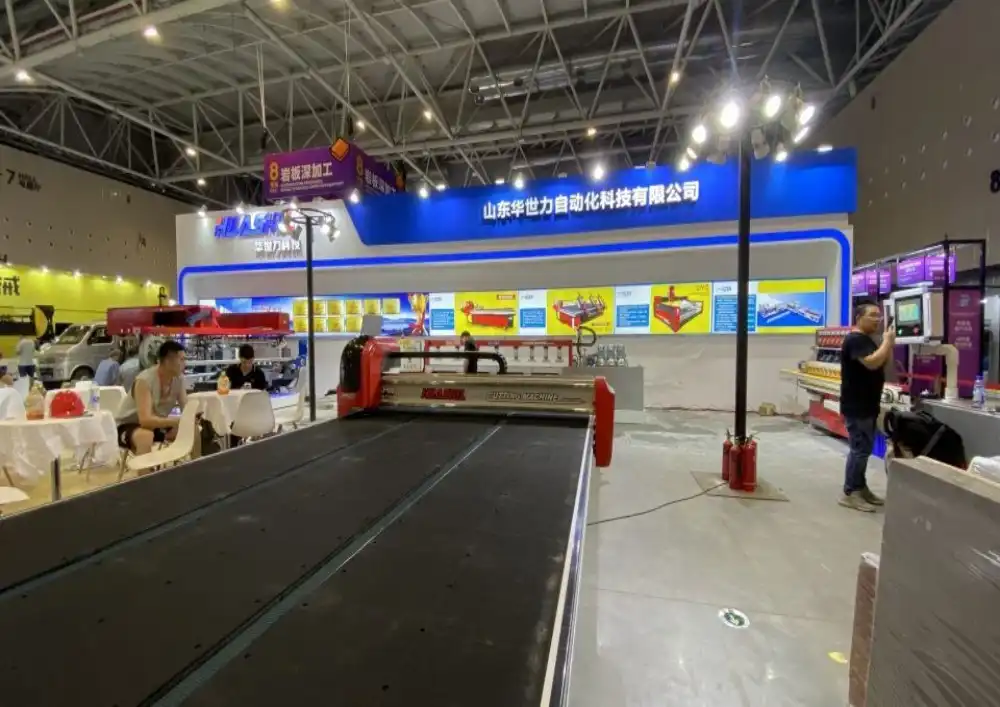

Portable tile cutting machine
2.Max size:2700*1600mm
3.Glass cutting thickness:3-18mm
4.Control system:Eos-cnc
5.Function: automatic pressure control,automatic edge finding,air flotation system
6.Application: sintered stone, ceramic slabs and tile cutting
- Product Description
Huashil Machine: Your Trusted Portable Tile Cutting Machine Supplier
Huashil Machine is a leading manufacturer and supplier of high-quality products. Our HSL-CNC2716 portable tile cutting machine offers unmatched precision, efficiency, and versatility for all your tile cutting needs. With over a decade of export experience and a commitment to innovation, Huashil Machine delivers reliable solutions backed by exceptional service.
Why Choose Us?
Original Factory & Mature R&D: In-house innovation ensures cutting-edge technology.
OEM Support: Customize machines to your brand or project needs.
Fast Delivery: Streamlined logistics for timely shipments.
High Cost Performance: Premium quality at competitive prices.
Reliable After-Sales: Global technical support and spare parts service.
Functions & Features：
| Cutting technology and automatic oil supply Professional glass cutting control system realizes automatic cutting of straight and special-shaped glass, greatly improving glass cutting efficiency. The pressure of the cutting head is controlled by an electromechanical precision pressure valve. The uniform output pressure of the cylinder allows the cutting head to perfectly fit the glass surface for cutting, thus avoiding the cutting skipping phenomenon caused by glass quality problems . When cutting glass, the cutting oil is automatically filled using pneumatic pressure control, and moves synchronously with the cutting head through the PLC control system . |
| Optimization software and special-shaped libraries Compatible with the standard G code of Italian OPTIMA optimization software and domestic Guiyou software: achieving versatility in processing files in different formats. Glass cutting optimization program is specially designed to cut flat glass into workpieces of different sizes, improving the cutting rate of glass and reducing the waste of original glass sheets. The special-shaped glass cutting library integrates various special-shaped glass patterns and templates to meet the needs of different glass cutting. |

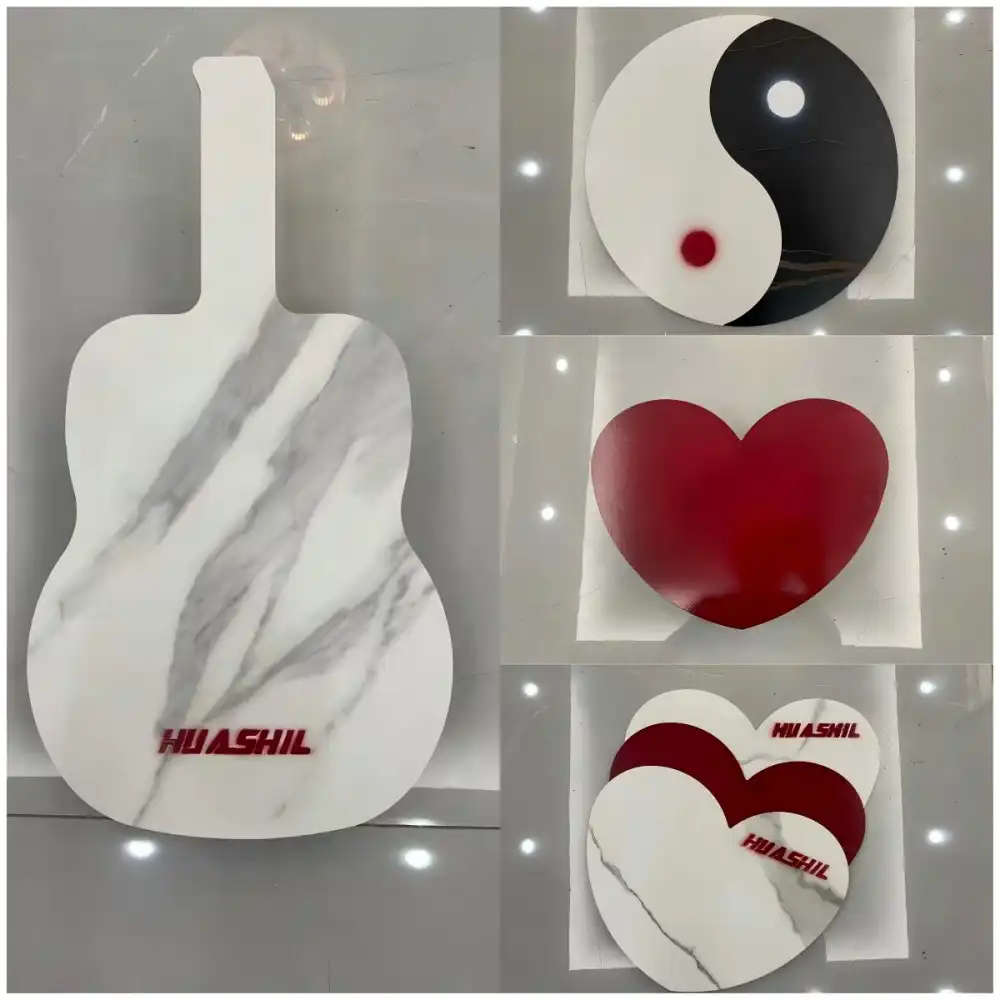

| Automatic edge positioning and intelligent special-shaped scanning Automatic edge-finding and positioning of glass: Accurately detects the actual position and deflection angle of the glass, and automatically adjusts the cutting path of the cutter head to improve efficiency. Intelligent special-shaped scanning: The detector can intelligently scan special-shaped templates and feedback to automatically generate graphics. The templates can be made of various types of materials to achieve profiling cutting. |
| Air floating countertop Cutting table and breaking table are equipped with air holes, and centrifugal fans provide high-pressure airflow to facilitate the transportation or shifting of glass while preventing scratches on the table. |
| Glass conveying After glass cutting, glass is transported to the air flotation breaking table through three synchronous conveying belts and the air flotation system for breaking operations. |
| Automatic rail lubrication glass cutting machine guide rail automatic lubrication system can realize automatic lubrication, reduce manual intervention, and improve the stability and reliability of lubrication. Lubrication reminder can be set. When lubrication is needed, press the oil filling button for 10 seconds to complete the operation, which is easy to operate. |
| Servo motor direct drive structure It adopts servo motor direct drive structure, which is directly driven by X and Y axis servo motors without using belts. With high precision and low noise, it is the preferred structure for high-end CNC equipment. |
| Automatic voltage control Automatic pressure control system uses a high-precision pressure regulating valve to control the pressure of the cutting head. The cutting pressure is evenly output, making it easy to break the slices. When cutting glass of different thicknesses, there is no need to manually adjust the pressure. The cutting system matches the corresponding pressure according to the optimized thickness of the original glass sheet, which is easy to operate. |
| Voltage detection Voltage detection can display the voltage condition during operation in real time, and cooperate with the machine's alarm system to easily monitor the machine's working condition .
|
| Automatic labeling Replace manual labeling. The printer automatically prints out a label recording the glass information, and the fingers of the labeling cylinder grab the label and stick it on the surface of the corresponding glass piece. The standard machine head for labeling has high labeling efficiency. (Customers are recommended to configure the labeling function ) Labels can be set with multiple contents, such as: glass size, customer information, serial number, process, QR code, etc. |
| High performance LOW-E film removal device The width of the film removal wheel used to remove the low-e layer is 20 mm or 25 mm (please note clearly when placing an order) . It has an automatic dust removal function. The dust removal function is automatically turned on after the film removal function is turned on . It has an automatic compensation function and a precision pressure reducing valve controls the pressure of the grinding wheel. There is no need to adjust the film removal depth during use. Can remove rectangular and special shapes. |
Key Features & Advantages
Automatic Pressure Control: Prevents material breakage for flawless cuts.
Air Flotation System: Reduces friction, enhancing cutting accuracy.
EOS-CNC Control System: User-friendly interface for seamless operation.
Multi-Material Compatibility: Cuts sintered stone, ceramic slabs, glass (3–18mm), and more.
Smart Factory Ready: Real-time data monitoring boosts productivity.
Product Parameters:
| Specification | Detail |
|---|---|
| Cutting Capacity | Up to 15mm thickness |
| Power Source | Electric |
| Blade Size | 2700*1600mm |
| Cutting Speed | 0-200m/min |
| Weight | 2500kg |
| Voltage | 380V |
| Cutting Angle Adjustment | 0° to 45° |
Product Details:
The HSL-CNC2716 product features a robust design optimized for precision and efficiency. Its advanced control system allows for seamless operation, while the automatic pressure control and edge finding capabilities ensure consistent, high-quality cuts. The air flotation system facilitates easy handling of large materials, making it ideal for various applications in the construction and manufacturing industries.
Quality Control:
At Huashil Machine, we maintain stringent quality control measures throughout the production process. Each portable tile cutting machine undergoes rigorous testing and inspection before shipment. We provide comprehensive mechanical test reports and offer video factory inspections for your peace of mind.
Customization Options:
We understand that every project has unique requirements. That's why we offer customization options for our products, including tailored cutting capacities, specialized functions, and custom color schemes to match your brand or workspace.
Certification:
Our products meet international quality and safety standards. We hold relevant industry certifications, demonstrating our commitment to excellence and regulatory compliance.
After-Sales Service:
Huashil Machine provides comprehensive after-sales support, including installation guidance, operator training, and prompt technical assistance. Our dedicated team ensures your product operates at peak performance throughout its lifespan.
Packaging:
We use robust, industry-standard packaging to ensure your product arrives in perfect condition. Our logistics team carefully prepares each shipment to withstand international transport.
Company Introduction:
Huashil Machine is a trusted name in the product industry. With our state-of-the-art manufacturing facility and experienced team, we deliver innovative solutions that drive productivity and quality in tile cutting operations worldwide.
FAQ:
Q: What materials can the HSL-CNC2716 cut?
A: It's designed for cutting sintered stone, ceramic slabs, and tiles.
Q: Can I request a custom color for my machine?
A: Yes, we offer customization options including machine color.
Q: What kind of after-sales support do you provide?
A: We offer installation guidance, training, and ongoing technical support.
Q: Is the HSL-CNC2716 suitable for large-scale production?
A: Absolutely. Its large cutting capacity and efficient design make it ideal for high-volume operations.
Q: How do I place an order for a product?
A: Contact our sales team at salescathy@sdhuashil.com to discuss your requirements and place an order.
