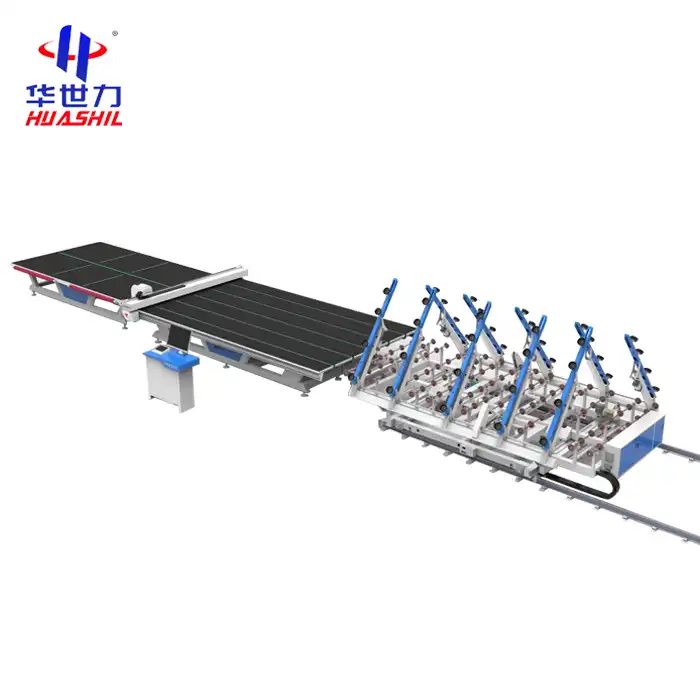

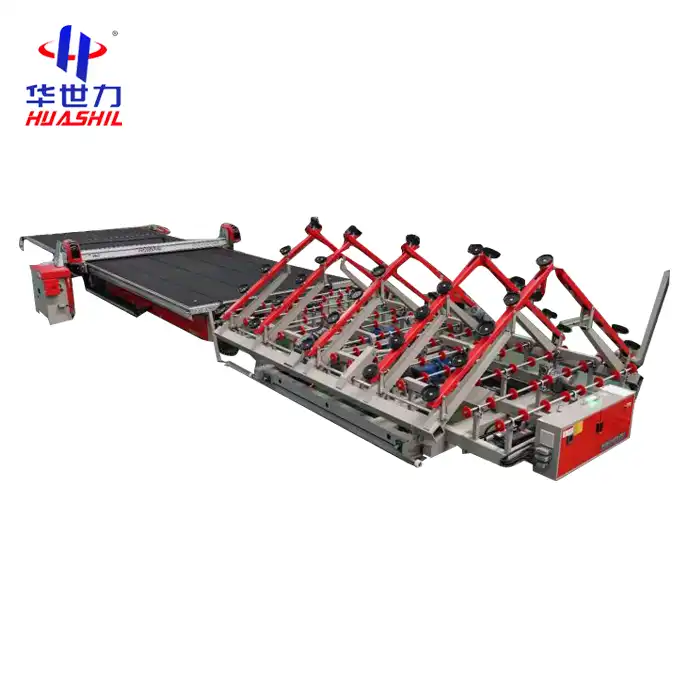

Automatic Glass Cutting Line for Low-E Glass: Precision and Efficiency by Huashil Machine

Huashil Machine is a leading manufacturer and supplier of automatic glass cutting lines for low-e glass. Our Automatic Glass Cutting Line for Low-E Glass offers unparalleled precision, efficiency, and reliability for processing low-e glass. With advanced features and industry-leading technology, Huashil Machine's automatic glass cutting line ensures superior results for your glass production needs.

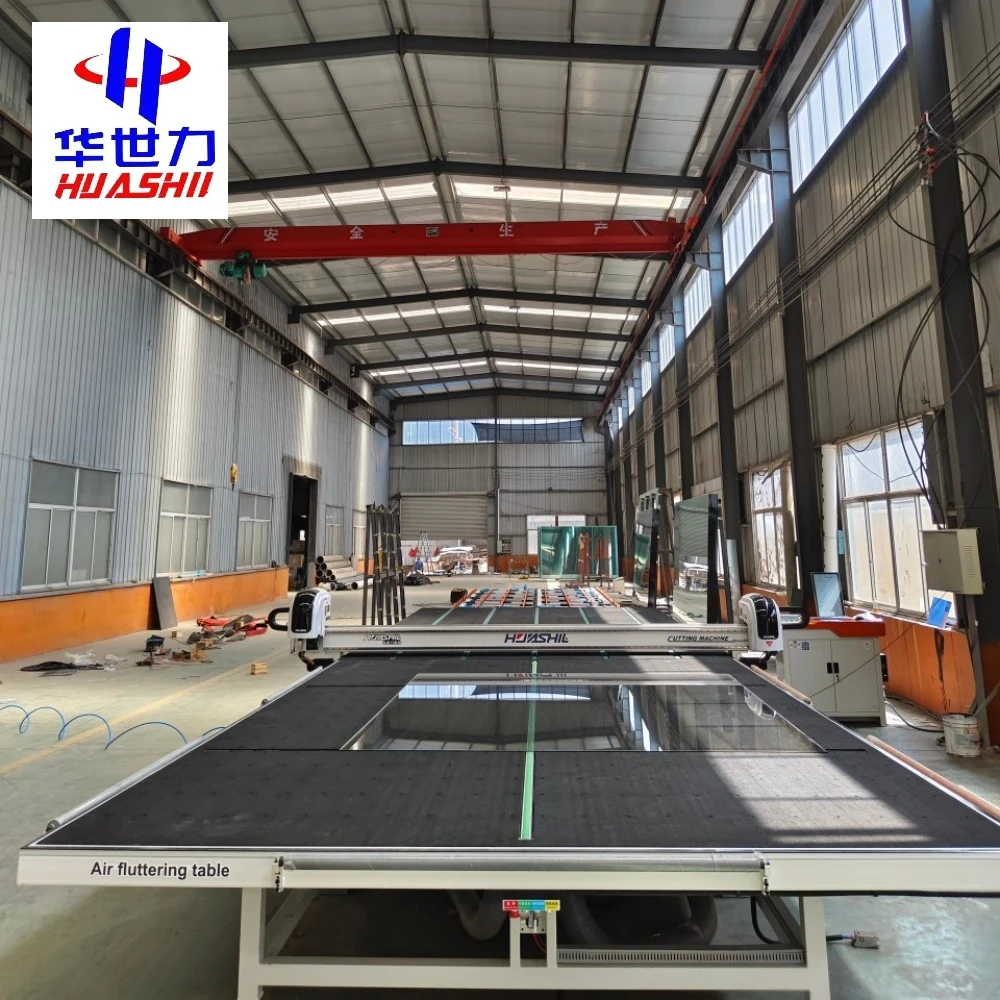

product-1-1

Functions & Features：

	Cutting technology and automatic oil supply Professional glass cutting control system realizes automatic cutting of straight and special-shaped glass, greatly improving glass cutting efficiency. The pressure of the cutting head is controlled by an electromechanical precision pressure valve. The uniform output pressure of the cylinder allows the cutting head to perfectly fit the glass surface for cutting, thus avoiding the cutting skipping phenomenon caused by glass quality problems . When cutting glass, the cutting oil is automatically filled using pneumatic pressure control, and moves synchronously with the cutting head through the PLC control system .
	Optimization software and special-shaped libraries Compatible with the standard G code of Italian OPTIMA optimization software and domestic Guiyou software: achieving versatility in processing files in different formats. Glass cutting optimization program is specially designed to cut flat glass into workpieces of different sizes, improving the cutting rate of glass and reducing the waste of original glass sheets. The special-shaped glass cutting library integrates various special-shaped glass patterns and templates to meet the needs of different glass cutting.
	Automatic edge positioning and intelligent special-shaped scanning Automatic edge-finding and positioning of glass: Accurately detects the actual position and deflection angle of the glass, and automatically adjusts the cutting path of the cutter head to improve efficiency. Intelligent special-shaped scanning: The detector can intelligently scan special-shaped templates and feedback to automatically generate graphics. The templates can be made of various types of materials to achieve profiling cutting.
	Air floating countertop Cutting table and breaking table are equipped with air holes, and centrifugal fans provide high-pressure airflow to facilitate the transportation or shifting of glass while preventing scratches on the table.
	Glass conveying After glass cutting, glass is transported to the air flotation breaking table through three synchronous conveying belts and the air flotation system for breaking operations.
	Automatic rail lubrication glass cutting machine guide rail automatic lubrication system can realize automatic lubrication, reduce manual intervention, and improve the stability and reliability of lubrication. Lubrication reminder can be set. When lubrication is needed, press the oil filling button for 10 seconds to complete the operation, which is easy to operate.
	Servo motor direct drive structure It adopts servo motor direct drive structure, which is directly driven by X and Y axis servo motors without using belts. With high precision and low noise, it is the preferred structure for high-end CNC equipment.
	Automatic voltage control Automatic pressure control system uses a high-precision pressure regulating valve to control the pressure of the cutting head. The cutting pressure is evenly output, making it easy to break the slices. When cutting glass of different thicknesses, there is no need to manually adjust the pressure. The cutting system matches the corresponding pressure according to the optimized thickness of the original glass sheet, which is easy to operate.
	Voltage detection Voltage detection can display the voltage condition during operation in real time, and cooperate with the machine's alarm system to easily monitor the machine's working condition .
	Automatic labeling Replace manual labeling. The printer automatically prints out a label recording the glass information, and the fingers of the labeling cylinder grab the label and stick it on the surface of the corresponding glass piece. The standard machine head for labeling has high labeling efficiency. (Customers are recommended to configure the labeling function ) Labels can be set with multiple contents, such as: glass size, customer information, serial number, process, QR code, etc.
	High performance LOW-E film removal device The width of the film removal wheel used to remove the low-e layer is 20 mm or 25 mm (please note clearly when placing an order) . It has an automatic dust removal function. The dust removal function is automatically turned on after the film removal function is turned on . It has an automatic compensation function and a precision pressure reducing valve controls the pressure of the grinding wheel. There is no need to adjust the film removal depth during use. Can remove rectangular and special shapes.

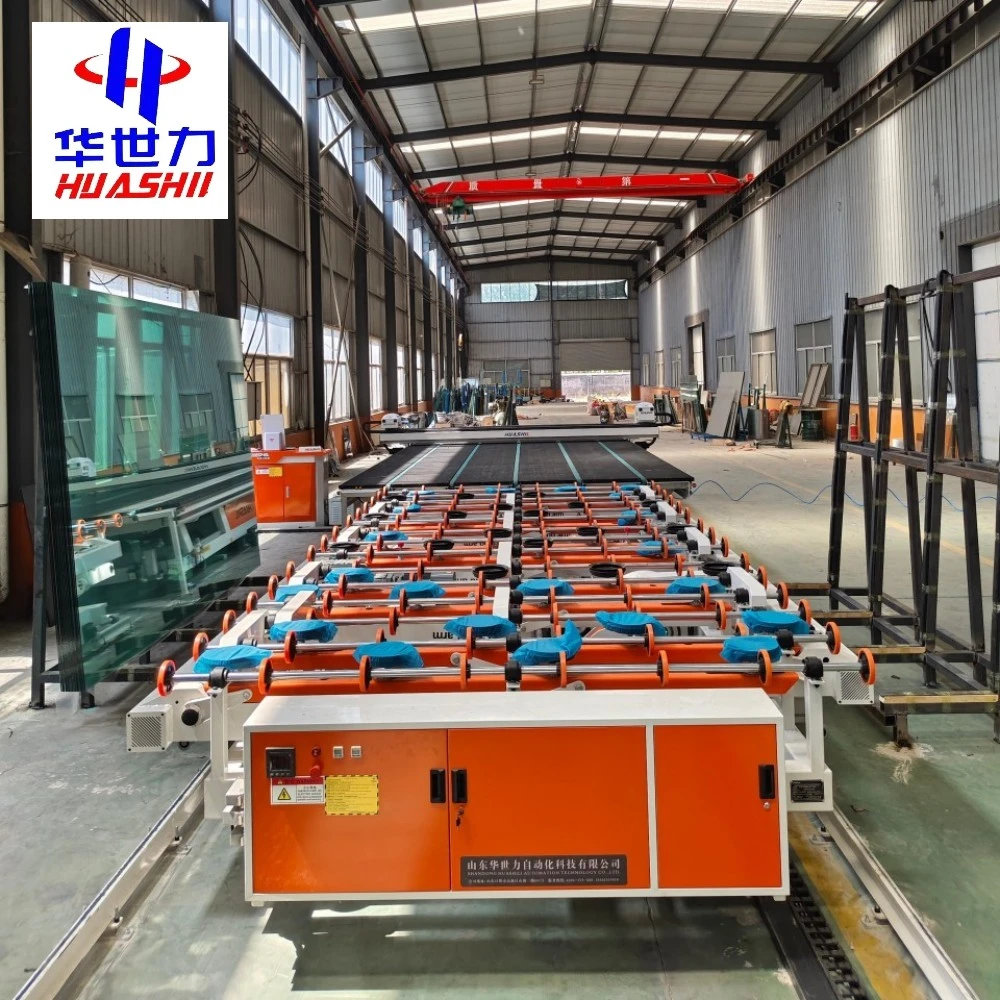

product-1-1

Why Choose Us?

10+ Years of Export Experience: Trusted by manufacturers worldwide.

Mature R&D Team: Customizable solutions for architectural, automotive, and solar glass.

Smart Factory Integration: Real-time data monitoring and automated assembly.

Low-E Deletion Function: Ensures clean, precise cuts for coated glass.

Complete Certifications: CE, ISO, and mechanical test reports provided.

glass cutting machine

Key Features & Advantages

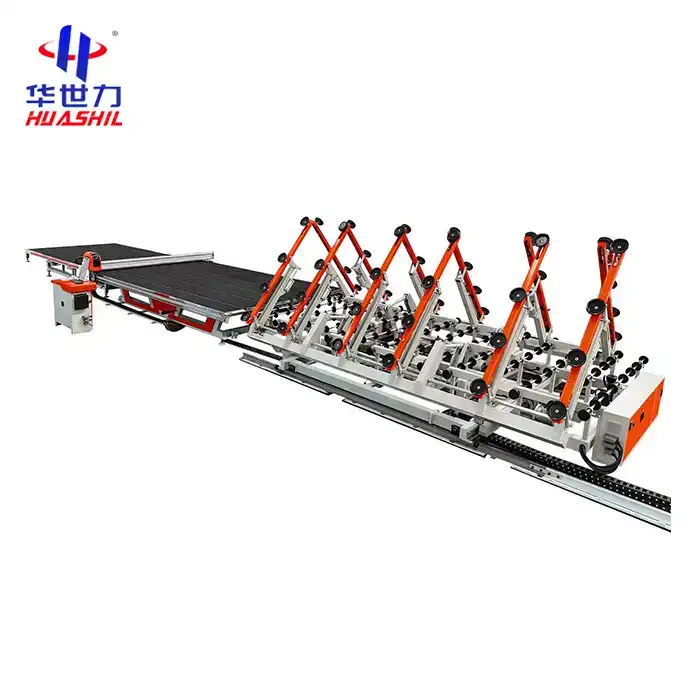

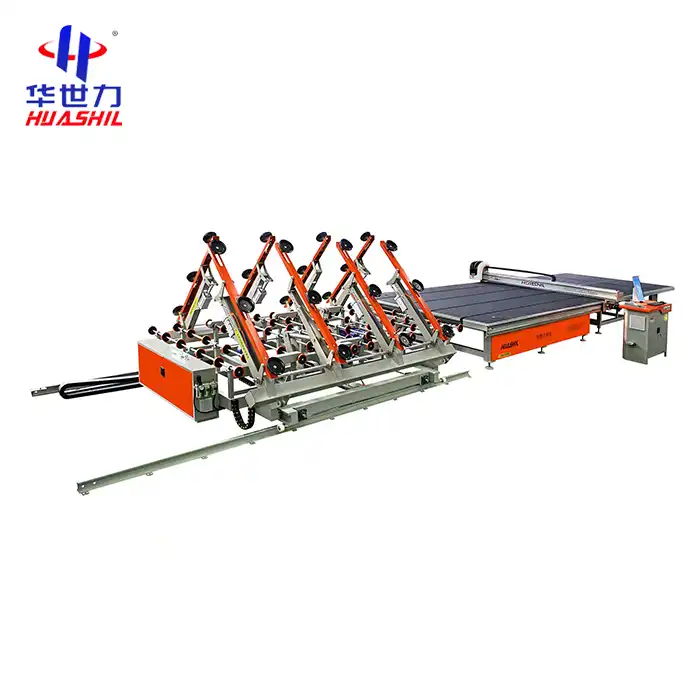

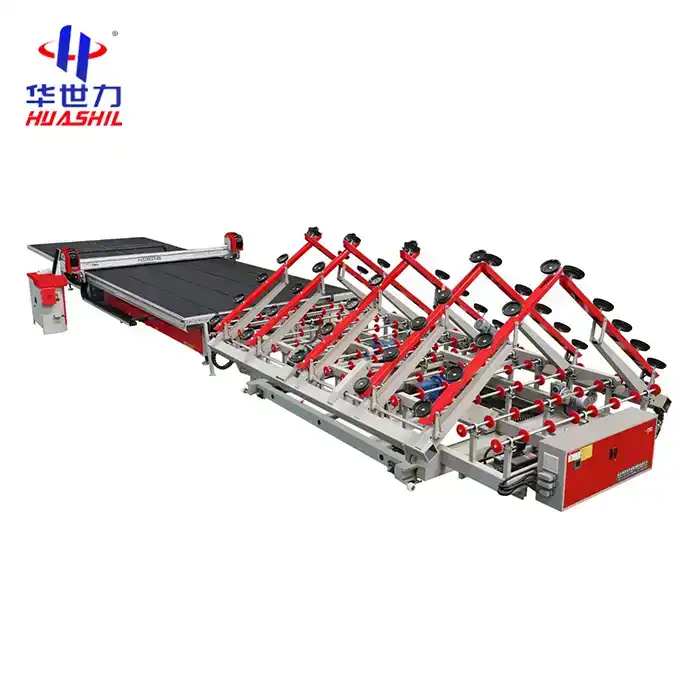

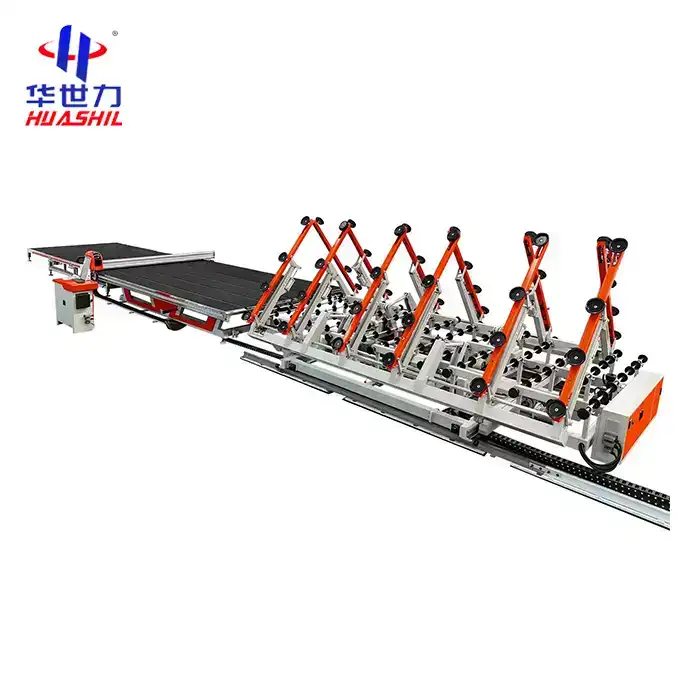

✔ Three-Table Design: Loading, cutting, and breaking tables for seamless workflow.
✔ Optimization Software: Optima for maximum material efficiency.
✔ 2+2 Stations: Flexible above/under-ground rail options.
✔ Five Grand Arms per Side: Enhanced stability for large-format glass (up to 5100x3300mm).
✔ High-Speed Cutting: Boosts productivity for insulated glass, furniture, and decorative glass.
✔ Low Maintenance: Durable high-end machine tools reduce downtime.

Product Parameters:

Specification	Detail
Cutting Speed	Up to 200 m/min
Glass Thickness Range	3-15 mm
Precision	±0.2 mm
Automation Level	Fully automated
Max. Glass Dimensions	Customizable
Power Supply	380V/50Hz
Control System	Advanced CNC system

Product Details:

The HSL-LSX5133 automatic glass cutting line for low-e glass is designed for high-precision cutting of various glass types. Its three-table system ensures smooth operation from loading to breaking. The Optima software optimizes cutting patterns for minimal waste, while the flexible station configuration adapts to different production needs.

Quality Control:

Our rigorous quality control process includes:

In-house testing of all components
Strict adherence to international manufacturing standards
Regular calibration and maintenance of equipment
Comprehensive pre-delivery inspections

Customization Options:

Custom machine color to match your facility
Tailored software integration for your specific production workflow
Adjustable cutting speed and pressure settings
Optional add-ons for enhanced functionality

Certification:

CE Certified
ISO 9001:2015 Quality Management System
ISO 14001:2015 Environmental Management System

glass cutting machine

After-Sales Service:

24/7 technical support
Remote troubleshooting capabilities
On-site service available when required
Regular maintenance and update packages

Packaging:

Secure wooden crate packaging for international shipping
Anti-shock and moisture-resistant materials
Clear labeling and handling instructions

Company Introduction:

Huashil Machine is at the forefront of glass processing technology, providing innovative solutions for the global market. Our commitment to quality, efficiency, and customer satisfaction drives our continuous improvement and industry leadership.

Automatic Glass Cutting Line For Low-E Glass

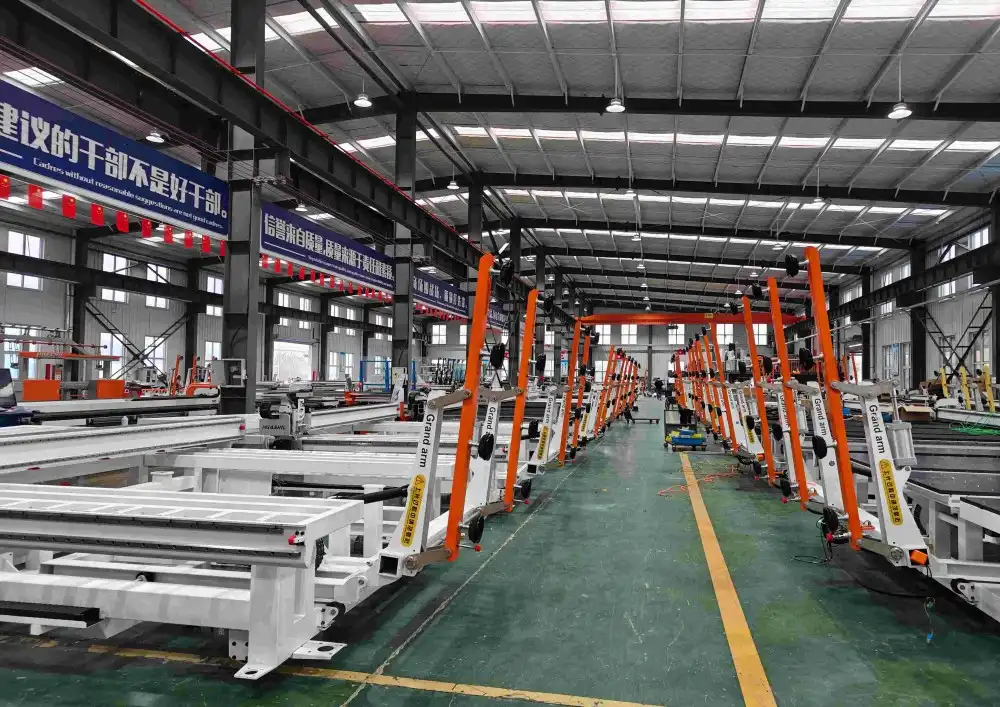

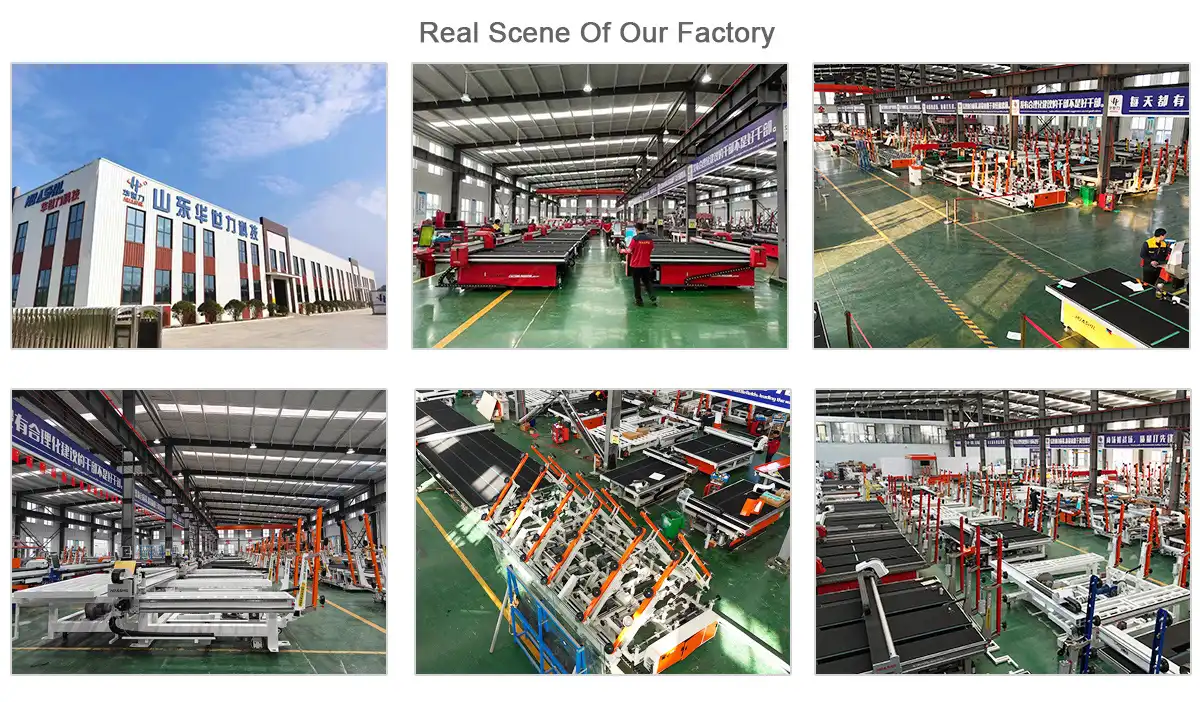

Our Factory:

Our state-of-the-art manufacturing facility spans over 50,000 square meters, equipped with advanced production lines and staffed by skilled technicians. We maintain strict quality control measures throughout the production process.

Automatic Glass Cutting Line For Low-E Glass

Successful Cases:

We have successfully implemented our product in numerous projects worldwide, including:

Major architectural glass manufacturers in Europe
Leading automotive glass suppliers in North America
Prominent solar panel producers in Asia

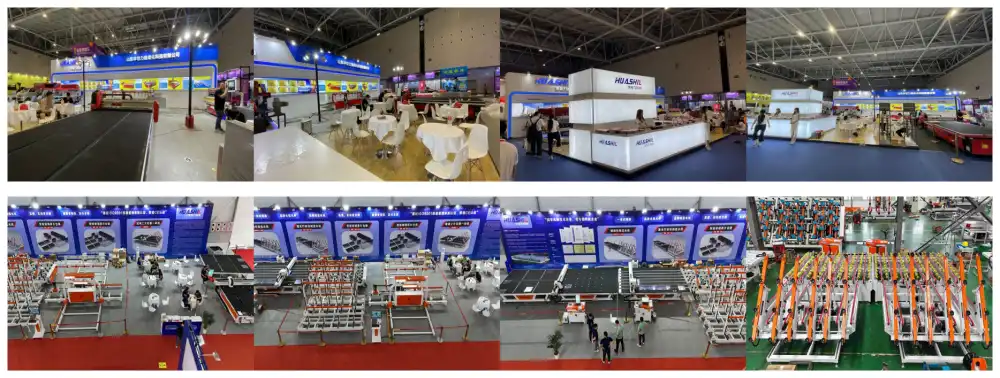

Exhibitions:

Huashil Machine regularly participates in international trade shows, showcasing our latest innovations in automatic glass cutting technology for low-e glass and other specialized applications.

glass cutting machine

FAQ:

Q: What is the production capacity of the HSL-LSX5133?
A: The production capacity varies depending on glass type and cutting complexity, but it can process up to 1000 square meters per shift.

Q: Can the machine handle different glass thicknesses?
A: Yes, the HSL-LSX5133 can accommodate glass thicknesses from 2mm to 19mm.

Q: How does the low-e deletion function work?
A: The low-e deletion function uses a specialized tool to remove the low-e coating along the edges of the glass, ensuring proper sealing in insulated glass units.

Q: What kind of maintenance does the machine require?
A: Regular maintenance includes daily cleaning, weekly lubrication, and monthly calibration checks. We provide a detailed maintenance schedule with each machine.

Q: Is operator training included with the purchase?
A: Yes, we offer comprehensive operator training both on-site and through remote sessions to ensure optimal use of the product.
