Name: Automatic Glass Cutting Assembly Line
SKU: N/A

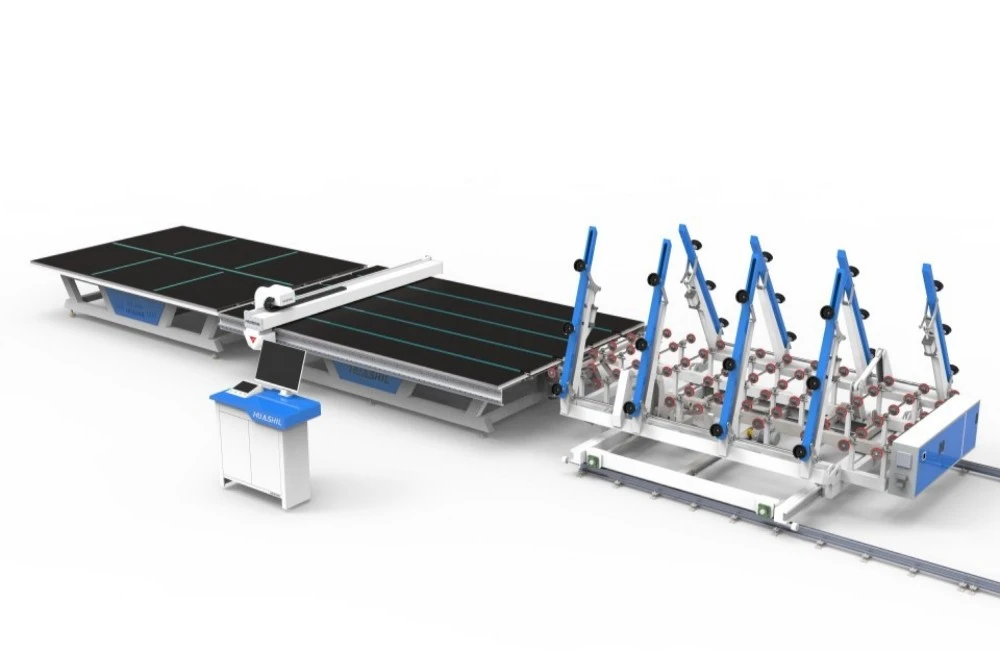

Automatic Glass Cutting Assembly Line: Revolutionize Your Glass Production

Huashil Machine, a leading manufacturer and supplier of Automatic Glass Cutting Assembly Line, proudly presents the HSL-LSX4228 model. Our cutting-edge solution combines precision, efficiency, and reliability to transform your glass production process. With Huashil's expertise in automation and Industry 4.0 integration, we deliver unparalleled value to glass manufacturers worldwide.

product-1-1

Functions & Features：

	Cutting technology and automatic oil supply Professional glass cutting control system realizes automatic cutting of straight and special-shaped glass, greatly improving glass cutting efficiency. The pressure of the cutting head is controlled by an electromechanical precision pressure valve. The uniform output pressure of the cylinder allows the cutting head to perfectly fit the glass surface for cutting, thus avoiding the cutting skipping phenomenon caused by glass quality problems . When cutting glass, the cutting oil is automatically filled using pneumatic pressure control, and moves synchronously with the cutting head through the PLC control system .
	Optimization software and special-shaped libraries Compatible with the standard G code of Italian OPTIMA optimization software and domestic Guiyou software: achieving versatility in processing files in different formats. Glass cutting optimization program is specially designed to cut flat glass into workpieces of different sizes, improving the cutting rate of glass and reducing the waste of original glass sheets. The special-shaped glass cutting library integrates various special-shaped glass patterns and templates to meet the needs of different glass cutting.
	Automatic edge positioning and intelligent special-shaped scanning Automatic edge-finding and positioning of glass: Accurately detects the actual position and deflection angle of the glass, and automatically adjusts the cutting path of the cutter head to improve efficiency. Intelligent special-shaped scanning: The detector can intelligently scan special-shaped templates and feedback to automatically generate graphics. The templates can be made of various types of materials to achieve profiling cutting.
	Air floating countertop Cutting table and breaking table are equipped with air holes, and centrifugal fans provide high-pressure airflow to facilitate the transportation or shifting of glass while preventing scratches on the table.
	Glass conveying After glass cutting, glass is transported to the air flotation breaking table through three synchronous conveying belts and the air flotation system for breaking operations.
	Automatic rail lubrication glass cutting machine guide rail automatic lubrication system can realize automatic lubrication, reduce manual intervention, and improve the stability and reliability of lubrication. Lubrication reminder can be set. When lubrication is needed, press the oil filling button for 10 seconds to complete the operation, which is easy to operate.
	Servo motor direct drive structure It adopts servo motor direct drive structure, which is directly driven by X and Y axis servo motors without using belts. With high precision and low noise, it is the preferred structure for high-end CNC equipment.
	Automatic voltage control Automatic pressure control system uses a high-precision pressure regulating valve to control the pressure of the cutting head. The cutting pressure is evenly output, making it easy to break the slices. When cutting glass of different thicknesses, there is no need to manually adjust the pressure. The cutting system matches the corresponding pressure according to the optimized thickness of the original glass sheet, which is easy to operate.
	Voltage detection Voltage detection can display the voltage condition during operation in real time, and cooperate with the machine's alarm system to easily monitor the machine's working condition .
	Automatic labeling Replace manual labeling. The printer automatically prints out a label recording the glass information, and the fingers of the labeling cylinder grab the label and stick it on the surface of the corresponding glass piece. The standard machine head for labeling has high labeling efficiency. (Customers are recommended to configure the labeling function ) Labels can be set with multiple contents, such as: glass size, customer information, serial number, process, QR code, etc.
	High performance LOW-E film removal device The width of the film removal wheel used to remove the low-e layer is 20 mm or 25 mm (please note clearly when placing an order) . It has an automatic dust removal function. The dust removal function is automatically turned on after the film removal function is turned on . It has an automatic compensation function and a precision pressure reducing valve controls the pressure of the grinding wheel. There is no need to adjust the film removal depth during use. Can remove rectangular and special shapes.

Why Choose Huashil’s Automatic Glass Cutting Assembly Line?

✅ Industry 4.0 Integration – Smart automation and real-time data monitoring for improved efficiency.
✅ High Precision Cutting – Advanced Optima software ensures accurate glass processing.
✅ Customizable Layout – Choose between above/underground rails and 2+2 station configurations.
✅ Robust Construction – Four grand arms per side for stable handling of large glass sheets (up to 4200×2800mm).
✅ Global Compliance – CE-certified with mechanical test reports for quality assurance.

product-1-1


Key Features & Advantages

✔ Optimized Workflow – Features loading, cutting, and breaking tables for seamless operation.
✔ Smart Control System – Optima software enhances cutting accuracy and reduces waste.
✔ Heavy-Duty Performance – Handles architectural, automotive, solar, and furniture glass with ease.
✔ Modular Design – Adaptable to different production needs with OEM customization.
✔ Fast Delivery & Support – Reliable after-sales service with remote troubleshooting.

product-1-1

Product Parameters:

Feature	Specification
Glass Thickness Range	2mm to 19mm
Cutting Precision	±0.2mm
Maximum Cutting Speed	200m/min
Control System	Advanced PLC with user-friendly interface
Power Requirement	Customizable
Glass Size Compatibility	Up to 4200mm x 2800mm

Product Details:

The HSL-LSX4228 Automatic Glass Cutting Assembly Line is designed for optimal performance in modern glass manufacturing facilities. Its modular structure allows for easy integration into existing production lines, while the advanced CNC control system ensures precise cutting and minimal waste.

Quality Control:

Our rigorous quality control process includes multiple inspection points throughout production and comprehensive testing before shipment. Each HSL-CNC3829 glass sheet cutting machine undergoes strict performance evaluations to meet our high standards.

Customization Options:

We understand that every glass manufacturer has unique needs. Our team can tailor the HSL-LSX4228 to your specific requirements, including custom dimensions, software integrations, and color options.

product-1-1

Certification:

Huashil Machine's product complies with international safety and quality standards, including CE certification.

After-Sales Service:

Our commitment doesn't end with delivery. We offer comprehensive after-sales support, including installation guidance, operator training, and prompt technical assistance to ensure your HSL-CNC3829 glass sheet cutting machine operates at peak efficiency.

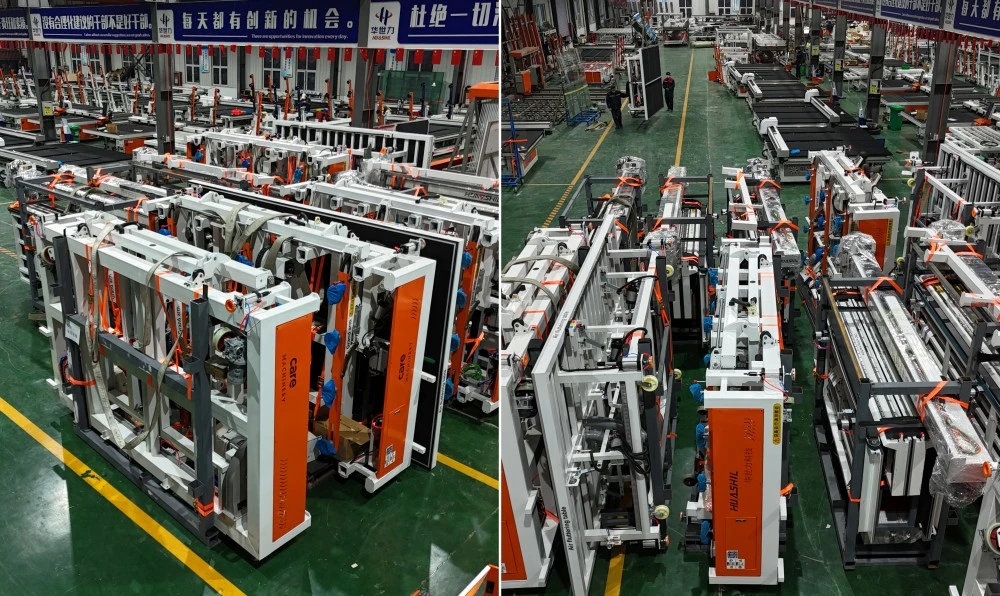

Packaging:

The HSL-LSX4228 is securely packaged to withstand international shipping, with options for sea or air freight to meet your delivery timeline.

Company Introduction:

Huashil Machine is at the forefront of glass processing automation, pioneering Industry 4.0 solutions for smart factories. Our focus on innovation and quality has made us a trusted partner for glass manufacturers globally.

Automatic Glass Cutting Assembly Line

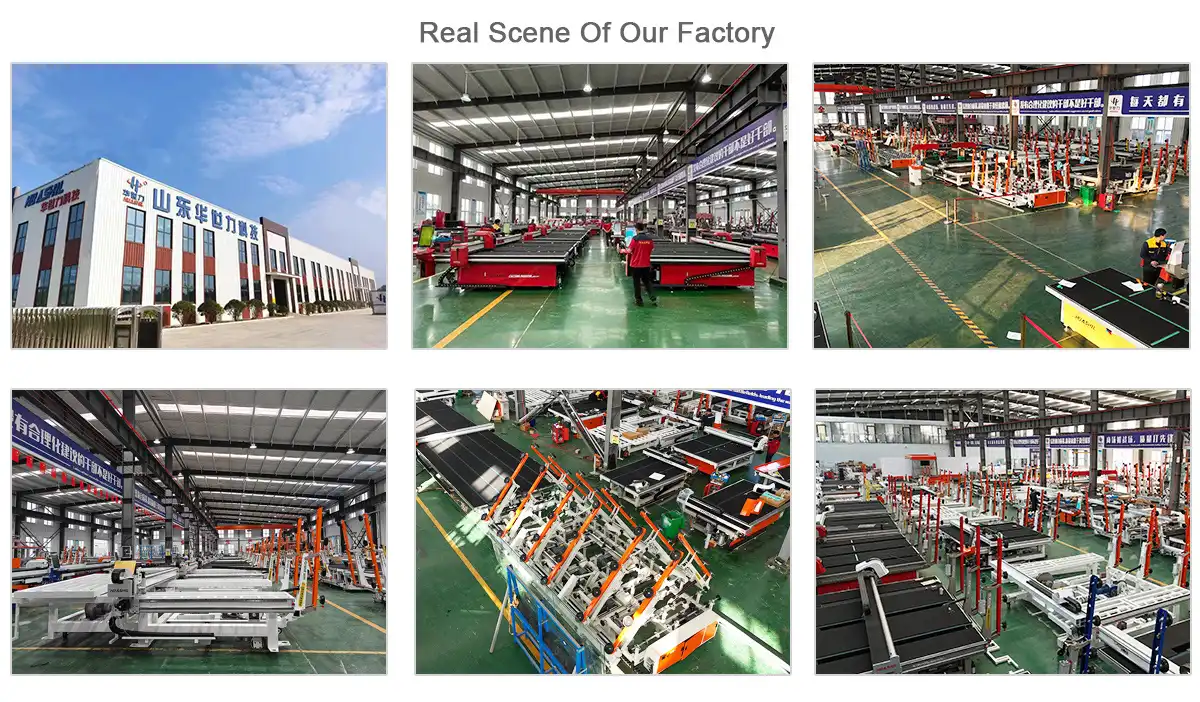

Our Factory:

Located in Shandong, China, our state-of-the-art facility combines advanced manufacturing capabilities with stringent quality control measures.

Automatic Glass Cutting Assembly Line

Successful Cases:

We've implemented our product solutions for leading glass manufacturers across Europe, America, and Southeast Asia, consistently delivering improved efficiency and product quality.

Exhibitions:

Huashil Machine regularly showcases our latest innovations, including the HSL-CNC3829 glass sheet cutting machine, at international trade fairs and industry exhibitions.

Exhibitions

FAQ:

Q1: What is the production capacity of the HSL-LSX4228?
A1: The capacity varies based on glass type and thickness but typically ranges from 800-1200 m²/shift.

Q2: Can the system handle low-E glass?
A2: Yes, our product is equipped to process low-E and other specialty glasses.

Q3: What is the warranty period?
A3: We offer a standard 12-month warranty with options for extended coverage.

Q4: How long does installation and setup take?
A4: Typically, installation and commissioning take 7-10 days, depending on site conditions.

Q5: Is remote diagnostics support available?
A5: Yes, our HSL-CNC3829 glass sheet cutting machine includes remote diagnostic capabilities for efficient troubleshooting.
