Glass Cutting Table: Precision and Efficiency for Your Glass Processing Needs

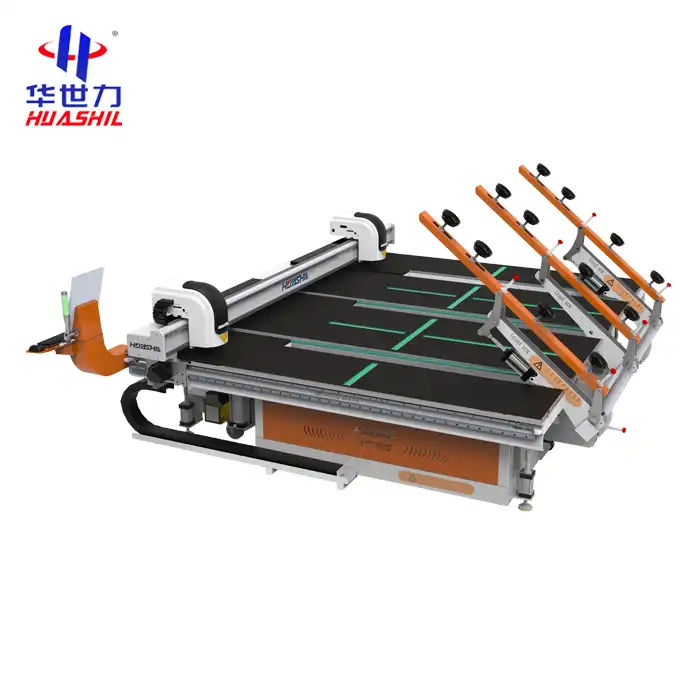

Huashil Machine is a leading product manufacturer and supplier. Our HSL-YTJ3826 glass cutting table offers unparalleled precision and efficiency for various glass processing applications. With advanced features and superior quality, Huashil Machine's product are the ideal choice for businesses seeking to optimize their glass cutting operations.

Functions & Features：

	Cutting technology and automatic oil supply Professional glass cutting control system realizes automatic cutting of straight and special-shaped glass, greatly improving glass cutting efficiency. The pressure of the cutting head is controlled by an electromechanical precision pressure valve. The uniform output pressure of the cylinder allows the cutting head to perfectly fit the glass surface for cutting, thus avoiding the cutting skipping phenomenon caused by glass quality problems . When cutting glass, the cutting oil is automatically filled using pneumatic pressure control, and moves synchronously with the cutting head through the PLC control system .
	Optimization software and special-shaped libraries Compatible with the standard G code of Italian OPTIMA optimization software and domestic Guiyou software: achieving versatility in processing files in different formats. Glass cutting optimization program is specially designed to cut flat glass into workpieces of different sizes, improving the cutting rate of glass and reducing the waste of original glass sheets. The special-shaped glass cutting library integrates various special-shaped glass patterns and templates to meet the needs of different glass cutting.
	Automatic edge positioning and intelligent special-shaped scanning Automatic edge-finding and positioning of glass: Accurately detects the actual position and deflection angle of the glass, and automatically adjusts the cutting path of the cutter head to improve efficiency. Intelligent special-shaped scanning: The detector can intelligently scan special-shaped templates and feedback to automatically generate graphics. The templates can be made of various types of materials to achieve profiling cutting.
	Air floating countertop Cutting table and breaking table are equipped with air holes, and centrifugal fans provide high-pressure airflow to facilitate the transportation or shifting of glass while preventing scratches on the table.
	Glass conveying After glass cutting, glass is transported to the air flotation breaking table through three synchronous conveying belts and the air flotation system for breaking operations.
	Automatic rail lubrication glass cutting machine guide rail automatic lubrication system can realize automatic lubrication, reduce manual intervention, and improve the stability and reliability of lubrication. Lubrication reminder can be set. When lubrication is needed, press the oil filling button for 10 seconds to complete the operation, which is easy to operate.
	Servo motor direct drive structure It adopts servo motor direct drive structure, which is directly driven by X and Y axis servo motors without using belts. With high precision and low noise, it is the preferred structure for high-end CNC equipment.
	Automatic voltage control Automatic pressure control system uses a high-precision pressure regulating valve to control the pressure of the cutting head. The cutting pressure is evenly output, making it easy to break the slices. When cutting glass of different thicknesses, there is no need to manually adjust the pressure. The cutting system matches the corresponding pressure according to the optimized thickness of the original glass sheet, which is easy to operate.
	Voltage detection Voltage detection can display the voltage condition during operation in real time, and cooperate with the machine's alarm system to easily monitor the machine's working condition .
	Automatic labeling Replace manual labeling. The printer automatically prints out a label recording the glass information, and the fingers of the labeling cylinder grab the label and stick it on the surface of the corresponding glass piece. The standard machine head for labeling has high labeling efficiency. (Customers are recommended to configure the labeling function ) Labels can be set with multiple contents, such as: glass size, customer information, serial number, process, QR code, etc.
	High performance LOW-E film removal device The width of the film removal wheel used to remove the low-e layer is 20 mm or 25 mm (please note clearly when placing an order) . It has an automatic dust removal function. The dust removal function is automatically turned on after the film removal function is turned on . It has an automatic compensation function and a precision pressure reducing valve controls the pressure of the grinding wheel. There is no need to adjust the film removal depth during use. Can remove rectangular and special shapes.

Why Choose Huashil’s Glass Cutting Table?

10+ Years of Export Expertise: Trusted by manufacturers in Europe, North America, and Southeast Asia.
Smart Factory Ready: Real-time data monitoring and Optima software optimize cutting paths.
OEM Flexibility: Customize dimensions, functions, or colors to match your production line.
Fast Delivery: Standard machines ship within 15 days.
End-to-End Support: 24/7 technical assistance and spare parts availability.

glass cutting machine

Key Features & Advantages

Ejector Rod System: Effortlessly remove cut glass without manual handling.
Air Flotation Transport: Prevents scratches on coated or laminated glass.
360° Remote Control: Operate large-format cuts (up to 3660x2440mm) safely.
Automatic Pressure Control: Ensures clean breaks for 2–19mm thicknesses.
CE & ISO9001 Certified: Meets global safety and quality standards.

Product Parameters

Specification	Details
Cutting Precision	±0.2 mm
Cutting Thickness Range	2 mm - 12mm
Table Dimensions	Customizable
Power Supply	380V/50Hz
Automation Level	Fully-automatic
Operating Temperature	0°C - 50°C

glass cutting machine

Product Details

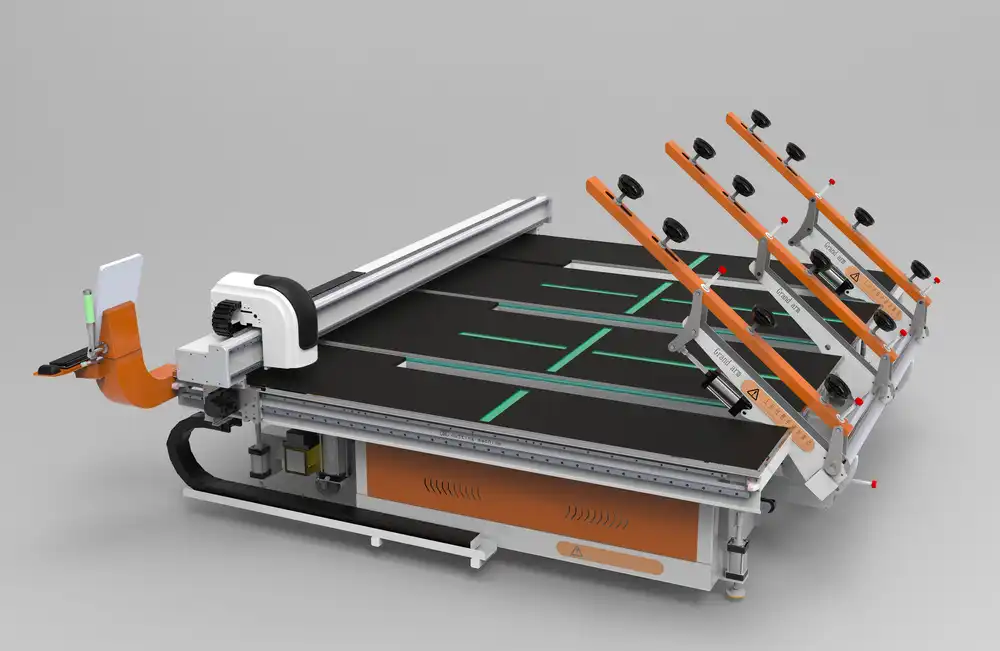

Our HSL-YTJ3826 glass cutting table is designed for precision and efficiency. The automatic loading system and air flotation technology ensure smooth glass handling, while the automatic pressure control and edge finding features guarantee accurate cuts. The 360-degree remote control walking allows for easy operation from any angle.

Quality Control

At Huashil Machine, we prioritize quality in every aspect of our product. Our rigorous quality control process includes:

Strict material selection
Comprehensive testing during production
Final inspection before shipment
Mechanical test reports for each machine

glass cutting machine

Customization Options

We understand that every glass processing operation is unique. That's why we offer customization options for our product, including:

Custom dimensions to fit your workspace
Specific color options to match your facility
Additional features tailored to your production needs

Certification

Our HSL-YTJ3826 glass cutting table is CE certified and manufactured in an ISO9001 certified facility, ensuring compliance with international quality and safety standards.

After-Sales Service

Huashil Machine provides comprehensive after-sales support, including:

Installation guidance
Operator training
Regular maintenance advice
Prompt technical support

Packaging

Our product are carefully packaged to ensure safe transportation:

Heavy-duty wooden crates
Shock-absorbing materials
Moisture-proof wrapping
Secure strapping for stability

Company Introduction

Huashil Machine is a pioneer in Industry 4.0 glass processing solutions. We integrate automation and digital technologies to improve production transparency and efficiency. Our smart factory solutions help shorten production cycles and improve yields through real-time data monitoring and automated assembly.

Glass Cutting Table

Our Factory

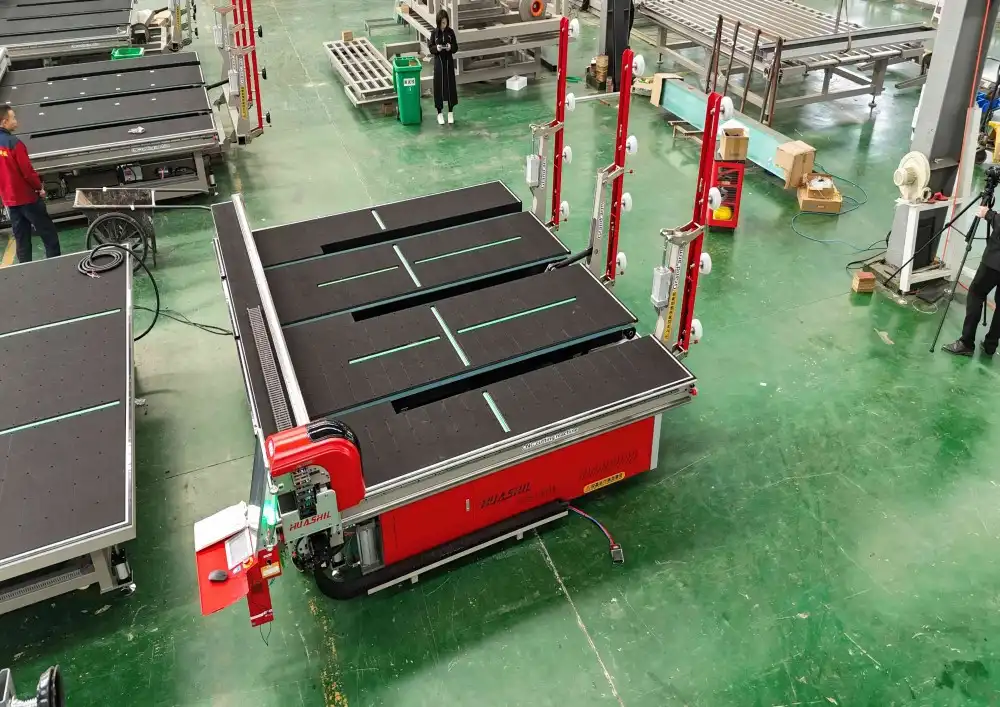

Our state-of-the-art factory is equipped with advanced manufacturing technology and staffed by skilled technicians. We maintain strict quality control measures throughout the production process to ensure each product meets our high standards.

Successful Cases

We have successfully supplied product to numerous clients worldwide, including major glass manufacturers and processing plants. Our machines have consistently improved productivity and cut quality for our customers.

Exhibitions

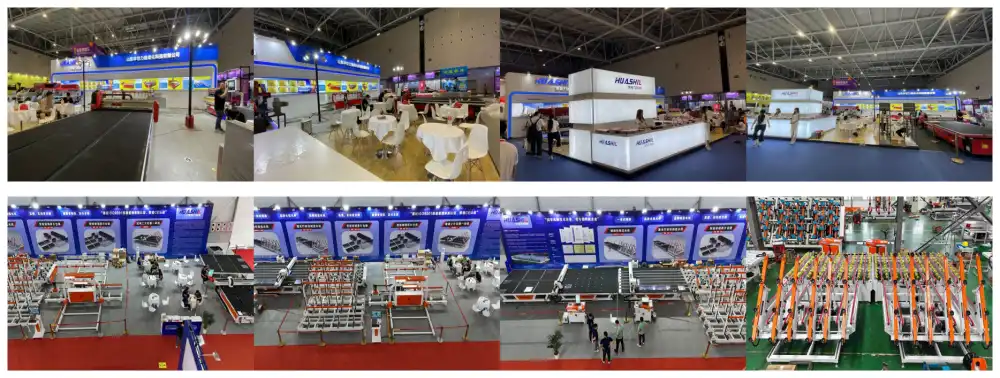

Huashil Machine regularly participates in international glass industry exhibitions to showcase our latest innovations in glass cutting technology.

glass cutting machine

FAQ

Q: What types of glass can be cut with the HSL-YTJ3826?
A: Our product is suitable for architectural, coated, automotive, insulating, furniture, bathroom, decorative, solar, and cabinet glass.
Q: How does the air flotation system work?
A: The air flotation system creates a cushion of air beneath the glass, allowing for smooth and effortless movement during the cutting process.
Q: Can I integrate this product into my existing production line?
A: Yes, our product are designed for easy integration with various production setups.
Q: What is the warranty period for the HSL-YTJ3826 product?
A: We offer a standard one-year warranty, with extended warranty options available.
Q: How often should maintenance be performed on the product?
A: We recommend regular maintenance checks every 3-6 months, depending on usage intensity.

Contact Us

For more information about our HSL-YTJ3826 glass cutting table or to request a quote, please contact us at salescathy@sdhuashil.com. Our team is ready to assist you in finding the perfect glass cutting solution for your business.
