Stained glass cutting machine
2.Max glass size:3660*2800*mm
3.Glass cutting thickness:2-19mm

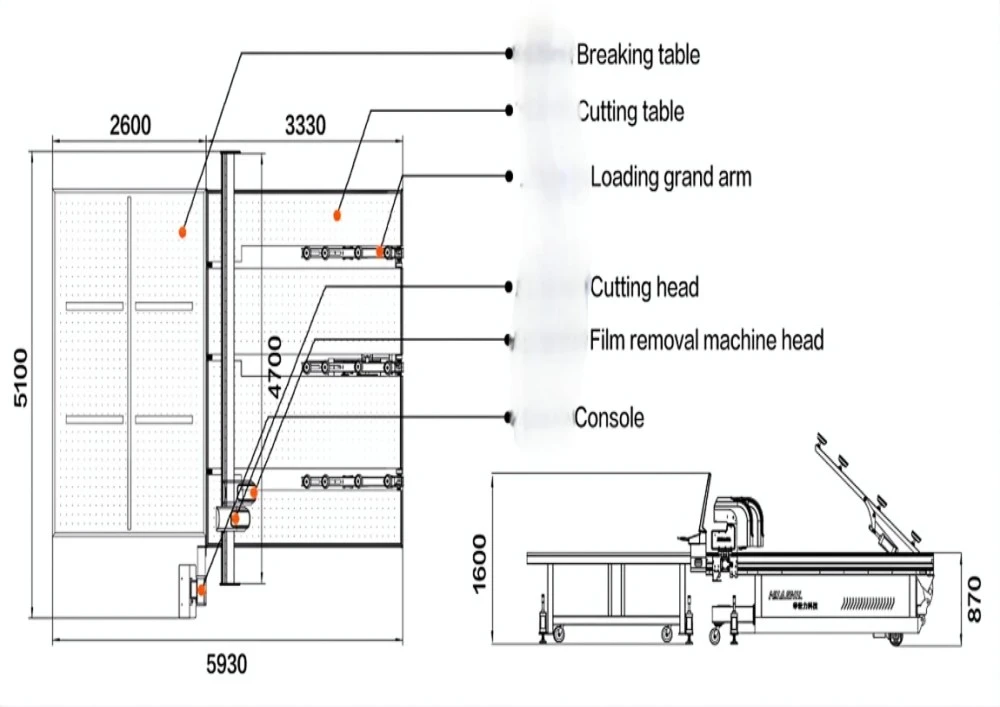

4.Dimension:6400*5100mm
5.Optimization software:Optima
6.Function: automatic loading,automatic pressure control,automatic edge finding,air flotation system, with breaking table,360 degree remote control walking,low-e film removal
7.Certificate:CE, ISO9001 8.Glass conveying by synchronous belts
- Product Description
Revolutionize Your Stained Glass Creations with Huashil Machine's Cutting-Edge Technology

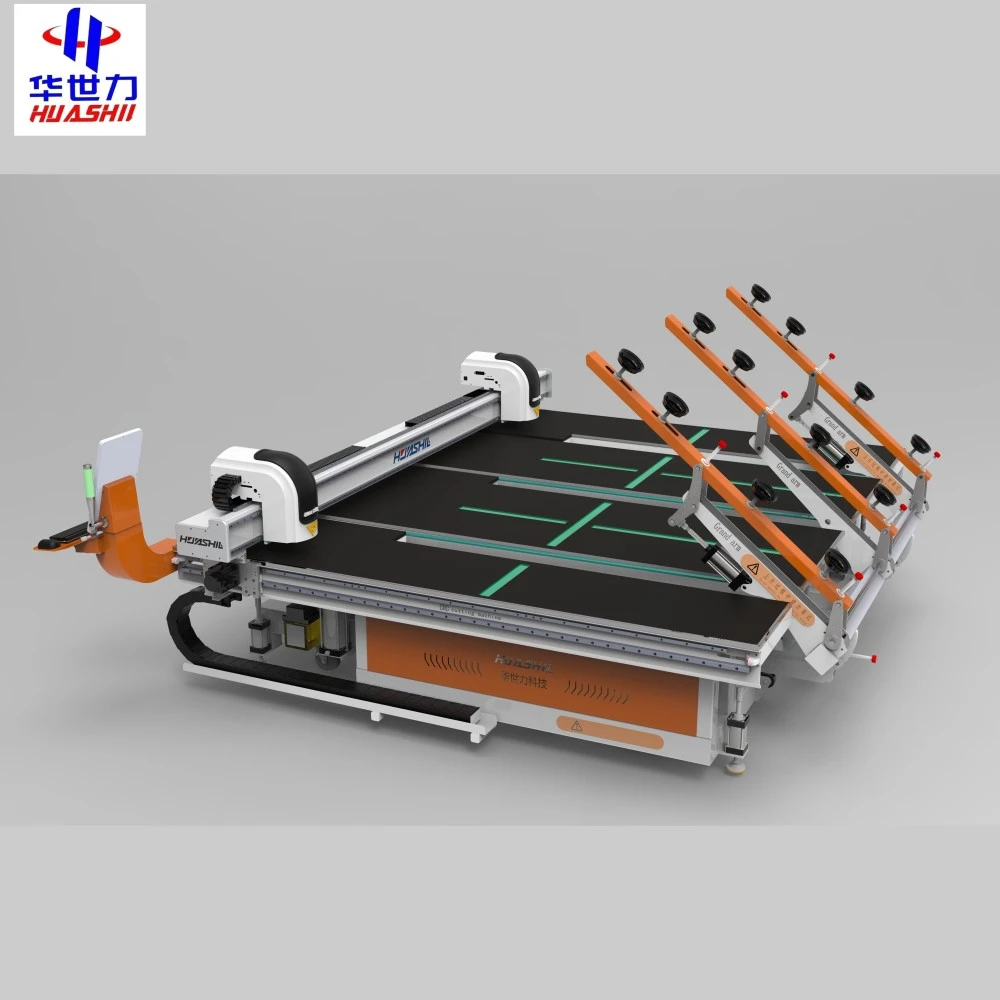

Huashil Machine, a leading stained glass cutting machine manufacturer and supplier, proudly presents our innovative HSL-YTJ3829 model. Our product combines precision, efficiency, and versatility to elevate your artistic projects. With Huashil's advanced technology, you'll experience unparalleled quality and performance.
Functions & Features:
| Cutting technology and automatic oil supply Professional glass cutting control system realizes automatic cutting of straight and special-shaped glass, greatly improving glass cutting efficiency. The pressure of the cutting head is controlled by an electromechanical precision pressure valve. The uniform output pressure of the cylinder allows the cutting head to perfectly fit the glass surface for cutting, thus avoiding the cutting skipping phenomenon caused by glass quality problems . When cutting glass, the cutting oil is automatically filled using pneumatic pressure control, and moves synchronously with the cutting head through the PLC control system . |
Optimization software and special-shaped libraries Compatible with the standard G code of Italian OPTIMA optimization software and domestic Guiyou software: achieving versatility in processing files in different formats. Glass cutting optimization program is specially designed to cut flat glass into workpieces of different sizes, improving the cutting rate of glass and reducing the waste of original glass sheets. The special-shaped glass cutting library integrates various special-shaped glass patterns and templates to meet the needs of different glass cutting. | |
Automatic edge positioning and intelligent special-shaped scanning Automatic edge-finding and positioning of glass: Accurately detects the actual position and deflection angle of the glass, and automatically adjusts the cutting path of the cutter head to improve efficiency. Intelligent special-shaped scanning: The detector can intelligently scan special-shaped templates and feedback to automatically generate graphics. The templates can be made of various types of materials to achieve profiling cutting. | |
Air floating countertop Cutting table and breaking table are equipped with air holes, and centrifugal fans provide high-pressure airflow to facilitate the transportation or shifting of glass while preventing scratches on the table. | |
Glass conveying After glass cutting, glass is transported to the air flotation breaking table through three synchronous conveying belts and the air flotation system for breaking operations. | |
Automatic rail lubrication Glass cutting machine guide rail automatic lubrication system can realize automatic lubrication, reduce manual intervention, and improve the stability and reliability of lubrication. Lubrication reminder can be set. When lubrication is needed, press the oil filling button for 10 seconds to complete the operation, which is easy to operate. | |
Servo motor direct drive structure It adopts servo motor direct drive structure, which is directly driven by X and Y axis servo motors without using belts. With high precision and low noise, it is the preferred structure for high-end CNC equipment. | |
Automatic voltage control Automatic pressure control system uses a high-precision pressure regulating valve to control the pressure of the cutting head. The cutting pressure is evenly output, making it easy to break the slices. When cutting glass of different thicknesses, there is no need to manually adjust the pressure. The cutting system matches the corresponding pressure according to the optimized thickness of the original glass sheet, which is easy to operate. | |
Voltage detection Voltage detection can display the voltage condition during operation in real time, and cooperate with the machine's alarm system to easily monitor the machine's working condition .
| |
| Automatic labeling Replace manual labeling. The printer automatically prints out a label recording the glass information, and the fingers of the labeling cylinder grab the label and stick it on the surface of the corresponding glass piece. The standard machine head for labeling has high labeling efficiency. (Customers are recommended to configure the labeling function ) Labels can be set with multiple contents, such as: glass size, customer information, serial number, process, QR code, etc. |
| High performance LOW-E film removal device The width of the film removal wheel used to remove the low-e layer is 20 mm or 25 mm (please note clearly when placing an order) . It has an automatic dust removal function. The dust removal function is automatically turned on after the film removal function is turned on . It has an automatic compensation function and a precision pressure reducing valve controls the pressure of the grinding wheel. There is no need to adjust the film removal depth during use. Can remove rectangular and special shapes. |
Why Choose Huashil’s Stained Glass Cutting Machine?
Industry 4.0 Ready: Automated workflows with real-time data monitoring for smarter production.
Decade-Long Expertise: 10+ years of exporting to global markets (Europe, North America, Southeast Asia).
End-to-End Support: OEM customization, fast delivery, and 24/7 after-sales service.
High Cost Performance: Competitive pricing without compromising precision or durability.
Certified Quality: CE and ISO9001 certifications ensure compliance with international standards.
Key Features & Advantages
Automatic Edge Finding & Pressure Control: Ensures flawless cuts for intricate stained glass designs.
Air Flotation System: Protects glass surfaces during transport.
360° Remote Control: Easy operation for large-format glass (up to 3660x2800mm).
Breaking Table Included: Streamlines the cutting process for coated, tempered, or decorative glass.
Optima Software: Optimizes cutting paths to reduce waste and improve yield.
Product Parameters:
Specification | Details |
---|---|
Cutting Precision | ±0.2 mm |
Glass Thickness Range | 2 - 12 mm |
Cutting Speed | Up to 200meters/minute |
Power Requirements | 380V |
Machine Dimensions | 6400mm x 5100mm x 1600mm |
Weight | 3500 kg |
Software Compatibility | Windows, Compatible CAD Software |
Product Details:
Our HSL-CNC3829 glass sheet cutting machine is designed for precision and efficiency. It features a robust structure with advanced cutting mechanisms, ensuring clean and accurate cuts for various glass types. The machine's intuitive interface allows for easy operation and programming.
Quality Control:
We implement rigorous quality control measures throughout the production process. Each stained glass cutting machine undergoes extensive testing to ensure optimal performance and durability.
Customization Options:
Tailor your HSL-CNC3829 glass sheet cutting machine to your specific needs. We offer customizable features, including machine color options and specialized cutting tools for unique glass types.
Certification:
Our product is CE and ISO9001 certified, guaranteeing compliance with international safety and quality standards.
After-Sales Service:
Experience peace of mind with our comprehensive after-sales support, including installation guidance, operator training, and prompt technical assistance.
Packaging:
We ensure secure packaging for safe transportation of your product, protecting it from damage during transit.
Company Introduction:
Huashil Machine is committed to innovation in glass processing technology. Our state-of-the-art facilities and experienced team consistently deliver cutting-edge solutions for the global market.
Our Factory:
Tour our modern production facility, showcasing our commitment to quality and efficiency in manufacturing product.
Successful Cases:
Discover how our HSL-CNC3829 glass sheet cutting machine has transformed operations for leading glass manufacturers worldwide.
Exhibitions:
Find us at major industry exhibitions, where we showcase the latest advancements in stained glass cutting technology.
FAQ:
Q: What types of glass can the HSL-YTJ3829 cut?
A: It's suitable for architectural, coated, automotive, insulating, furniture, bathroom, decorative, solar, and cabinet glass.
Q: Is training provided for machine operation?
A: Yes, we offer comprehensive training for optimal use of our stained glass cutting machine.
Q: Can I request a custom color for the machine?
A: Absolutely! We can customize the color to your specifications.
Q: What kind of warranty do you offer?
A: We provide a standard warranty and extended service plans for your peace of mind.
Q: Do you offer on-site installation?
A: Yes, our expert technicians can provide on-site installation and setup services.
Contact Us:
Ready to elevate your stained glass production? contact us at salescathy@sdhuashil.com to learn more about our innovative HSL-CNC3829 glass sheet cutting machine and how it can transform your operations.
