Can a Glass Deep Cutting Machine Cut Thick or Laminated Glass?
Huashil.com/glass-loading-and-cutting-machine/glass-cutting-table-machine">glass deep cutting machines have revolutionized the glass processing industry with their precision and versatility. When it comes to processing specialized glass types such as thick glass panels or laminated safety glass, manufacturers and glass processors often question the capabilities of these advanced machines. This article explores the capacity of glass deep cutting machines to handle thick and laminated glass, examining their technical specifications, operational considerations, and practical applications across various industries.
How Does a Glass Deep Cutting Machine Handle Different Glass Thicknesses?
Technical Capabilities of Modern Glass Deep Cutting Machines
Modern glass deep cutting machines are engineered with remarkable versatility in mind. These cutting-edge systems can typically process glass ranging from 2mm to 25mm in thickness, though high-performance industrial models may extend this range up to 30mm or more. The cutting accuracy of a glass deep cutting machine remains consistent regardless of glass thickness due to advanced pressure control systems that automatically adjust according to the material's specifications. Most machines employ diamond-tipped cutting wheels with variable angles (typically 110°-160°) to optimize the cutting force distribution based on glass thickness. For exceptionally thick glass (above 19mm), specialized glass deep cutting machines incorporate enhanced cutting mechanisms with reinforced components and higher-powered motors to ensure clean, precise scoring without chipping or edge damage.
Adjustments Needed for Cutting Different Glass Thicknesses
When transitioning between different glass thicknesses, a glass deep cutting machine requires several calibration adjustments to maintain optimal performance. Cutting pressure represents the primary variable that must be modified—thicker glass necessitates greater cutting pressure while thinner glass requires more delicate handling to prevent cracking. The cutting speed must also be adjusted proportionally to thickness; operators typically reduce the cutting speed by 15-20% when processing glass over 15mm thick using a glass deep cutting machine. Many advanced systems feature programmable parameters that automatically adjust based on glass specifications entered into the control interface. Additionally, the cutting oil composition and application rate may need modification, as thicker glass benefits from cutting fluids with higher viscosity to properly lubricate the scoring process and facilitate clean breaks.
Common Challenges When Cutting Thick Glass
Despite the sophisticated capabilities of modern glass deep cutting machines, processing very thick glass presents several technical challenges. Edge quality becomes increasingly difficult to maintain as thickness increases, with potential issues including micro-chipping, rough edges, or inconsistent break lines. The breaking force required after scoring grows exponentially with thickness—while a 4mm glass pane may separate with minimal pressure, 19mm glass might require specialized breaking bars or controlled heating methods in conjunction with the glass deep cutting machine. Heat dissipation represents another significant concern, as the friction between cutting wheel and thick glass generates substantial heat that can cause thermal stress and unexpected cracks if not properly managed. Operator expertise becomes particularly crucial when working with thick glass, as experience-based adjustments to cutting angles, pressure, and breaking techniques often determine the difference between successful processing and costly material waste.
Can a Glass Deep Cutting Machine Effectively Process Laminated Glass?
The Structural Complexity of Laminated Glass
Laminated glass presents unique challenges for cutting equipment due to its composite structure consisting of two or more glass sheets bonded together with an intermediate layer of polyvinyl butyral (PVB), ethylene-vinyl acetate (EVA), or other specialized interlayers. This multilayer construction creates a material that requires specialized handling during cutting processes. Standard laminated glass typically consists of two 3mm glass panels with a 0.38mm PVB interlayer, but architectural and security applications may utilize configurations with glass thicknesses up to 12mm per layer and multiple interlayers. The glass deep cutting machine must address these complex structures by precisely scoring each glass layer while navigating the elastic resistance of the polymer interlayers. The adhesion between glass and interlayer materials varies based on the specific formulation and manufacturing process, creating additional variables that the glass deep cutting machine must accommodate through adaptive cutting strategies.
Specialized Techniques for Laminated Glass Cutting
Processing laminated glass with a glass deep cutting machine requires specialized methodologies that differ significantly from standard glass cutting approaches. The most effective technique involves a two-phase cutting process where the glass deep cutting machine first scores the top glass layer along the desired cutting line, followed by a separate scoring of the bottom layer along the same path. After scoring, controlled heating elements may be applied to the interlayer to soften the polymer material for cleaner separation. Advanced glass deep cutting machines designed specifically for laminated glass often incorporate dual cutting heads positioned on opposite sides of the glass to simultaneously score both layers, increasing productivity while maintaining precision. Cutting parameters require careful calibration—typically 20-30% reduced pressure compared to solid glass of equivalent thickness—to prevent cracking or delamination. Specialized cutting fluids formulated for laminated glass applications help lubricate both the glass scoring process and facilitate interlayer separation during the breaking phase.
Advancements in Laminated Glass Cutting Technology
The glass processing industry has witnessed remarkable technological developments specifically addressing the challenges of laminated glass cutting. Contemporary glass deep cutting machines now incorporate laser-guided scoring systems that ensure precise alignment of the upper and lower cutting lines, essential for clean separation without interlayer stretching or tearing. Automated breaking systems have evolved to apply carefully distributed pressure that propagates the score line through both glass layers while minimizing stress on the interlayer. Temperature-controlled cutting environments have been integrated into advanced glass deep cutting machine designs, as maintaining optimal temperature ranges (typically 18-22°C) significantly improves cutting consistency for laminated materials. Computer numerical control (CNC) systems now offer specialized laminated glass cutting programs with parameter optimization based on glass composition, thickness variations, and interlayer properties. These technological advancements have collectively transformed laminated glass processing from a specialized, labor-intensive operation to a streamlined, precision-driven process accessible to a wider range of glass fabricators equipped with appropriate glass deep cutting machine technology.
What Are the Industrial Applications of Cutting Thick and Laminated Glass?
Architectural and Construction Industry Applications
The architectural sector represents one of the primary markets for precisely cut thick and laminated glass, with applications ranging from structural glazing to safety barriers and sound insulation. Modern glass facades frequently incorporate laminated glass panels up to 25mm thick that require the precision cutting capabilities of advanced glass deep cutting machines to achieve the exact dimensions and edge quality necessary for structural integration. Specialized glass staircases and balustrades utilize thick tempered glass (typically 15-19mm) cut to precise specifications with minimal edge defects—a requirement that only high-quality glass deep cutting machines can consistently meet. Bulletproof and blast-resistant security installations employ multi-layer laminated glass up to 60mm thick, requiring industrial-grade glass deep cutting machines with enhanced capabilities for sequential layer processing. The growing trend toward energy-efficient building envelopes has increased demand for precisely cut thick insulated glass units (IGUs) consisting of multiple laminated panels separated by insulating spacers, all requiring the precision cutting capabilities of advanced glass deep cutting machines.
Automotive and Transportation Industry Requirements
The automotive industry maintains stringent requirements for glass components, particularly windshields and safety glass that must meet precise dimensional tolerances while maintaining optical clarity and structural integrity. Modern vehicle windshields typically utilize laminated glass with complex curvatures and embedded technology (heads-up displays, sensors, antennas) that require specialized glass deep cutting machines capable of processing these sophisticated materials without damaging integrated elements. High-speed trains and aerospace applications employ ultra-thick laminated glass (sometimes exceeding 40mm) with specialized interlayers for pressure resistance and noise reduction—these materials require industrial glass deep cutting machines with exceptional power and precision. The production of armored vehicles involves ballistic glass up to 100mm thick with multiple laminated layers, necessitating sequential cutting processes that only the most advanced glass deep cutting machines can achieve. As transportation safety standards continue to evolve, manufacturers increasingly rely on sophisticated glass deep cutting machine technology to process the complex glass assemblies required for next-generation vehicles across all transportation sectors.
Specialty Glass Products and Custom Fabrication
The growing market for specialized glass products has expanded the application scope for glass deep cutting machines across numerous niche industries. Museum display cases utilize thick laminated glass (typically 12-25mm) with UV-filtering interlayers that require precise cutting with minimal edge distortion to maintain visual clarity and protective properties. Medical imaging equipment integrates lead-infused glass shields up to 30mm thick for radiation protection, requiring specialized glass deep cutting machines capable of processing these dense materials without contamination. Custom furniture designers increasingly incorporate thick glass elements (15-25mm) with complex shapes and polished edges, all beginning with precision cuts from advanced glass deep cutting machines. Marine applications demand thick laminated glass with specialized interlayers for pressure and saltwater resistance, often requiring glass deep cutting machines with enhanced capabilities for processing these composite materials. The electronics industry utilizes laminated glass with conductive interlayers for touchscreen displays, requiring ultra-precise cutting capabilities that only advanced glass deep cutting machines can deliver consistently. This diverse range of applications continues to drive innovations in glass deep cutting machine technology, expanding both their capabilities and the creative possibilities they enable across numerous industries.
Conclusion

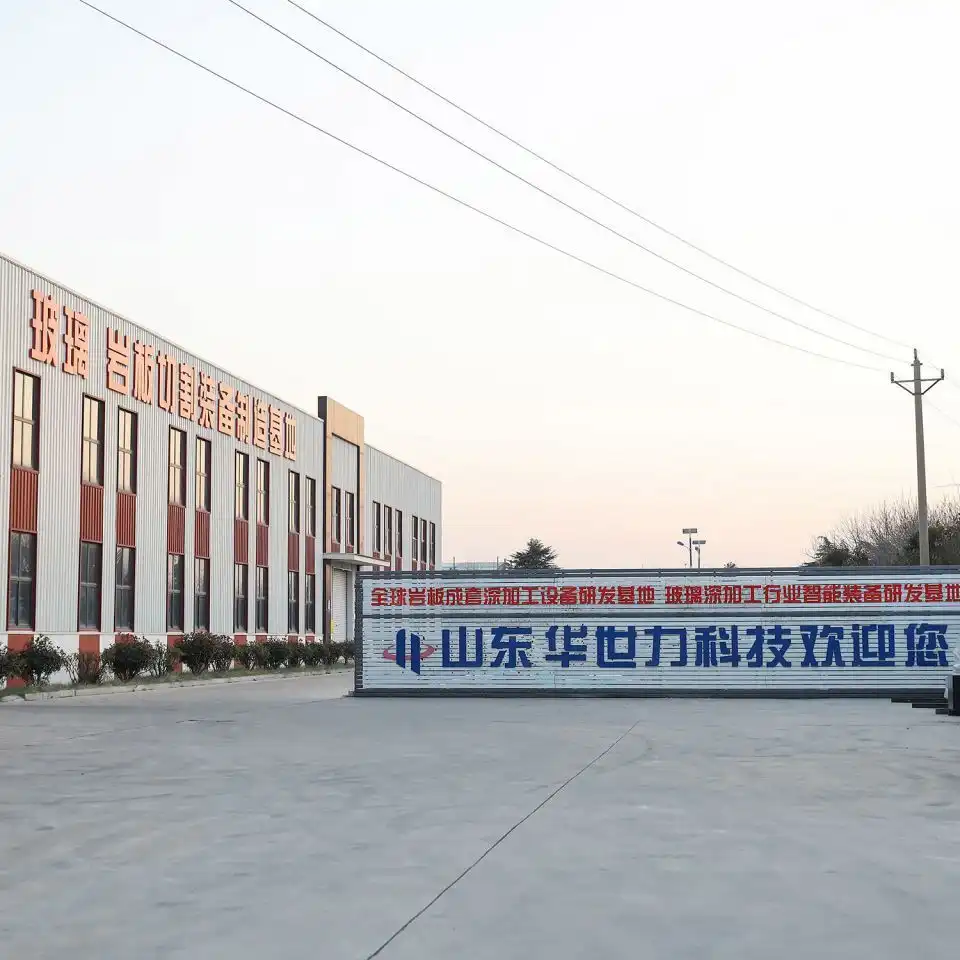

Glass deep cutting machines have proven to be versatile tools capable of effectively processing both thick and laminated glass when properly configured and operated. Their applications span across architectural, automotive, and specialty industries, providing solutions for increasingly complex glass processing requirements. While certain limitations exist, particularly with extremely thick materials or complex laminations, ongoing technological advancements continue to expand the capabilities of these essential glass processing tools. Shandong Huashil Automation Technology Co., Ltd. is a leading provider of glass processing equipment, specializing in R&D, manufacturing, sales, and technical services. Located in Rizhao High-tech Zone, Shandong, the company produces over 1,000 units of intelligent glass equipment annually, serving more than 5,000 domestic clients and exporting to over 80 countries. Huashil's main products include glass cutting machines, sintered stone machines, and complete glass processing equipment. For more details, contact salescathy@sdhuashil.com.
References
1. Zhang, L., & Wang, R. (2023). Advanced Techniques in Glass Processing: Deep Cutting Technologies for Specialized Materials. Journal of Glass Technology, 45(3), 112-128.
2. Petersen, K. M., & Johnson, T. D. (2022). Laminated Glass Processing: Challenges and Innovations in Cutting Technology. International Journal of Materials Processing, 18(2), 75-91.
3. Chen, H., Li, Y., & Smith, J. (2023). Industrial Applications of Thick Glass Processing: A Comprehensive Review. Materials Science and Engineering, 37(4), 423-442.
4. Wilson, A. R., & Brown, S. L. (2021). Architectural Glass Technology: Processing Methods for Complex Glass Assemblies. Building Materials Review, 29(3), 215-232.
5. Nakamura, T., & Anderson, P. (2022). Optimization of Cutting Parameters for Laminated Safety Glass. Journal of Manufacturing Processes, 56, 178-195.
6. Garcia, M., & Thompson, R. (2023). Advancements in CNC Glass Processing Equipment: Performance Analysis of Deep Cutting Systems. Industrial Automation and Robotics, 42(1), 88-105.
