Production volume, accuracy, and long-term operational expenses determine whether to use manual or automatic glass cutting equipment. Medium to large-scale glass fabricators, curtain wall contractors, and furniture makers favour automatic glass cutters for their precision, labour efficiency, and throughput. Manual methods are cheaper but require expert operators and struggle to maintain quality throughout high-volume manufacturing cycles.

Understanding the Core Differences: Manual vs. Automatic Glass Cutting

Production managers encounter this dilemma while adding capacity or replacing old equipment. The difference between manual and automated glass cutting methods affects every area of your business.

Three main distinctions distinguish these technologies:

• Operator Dependency—Skilled artisans read cutting plans and make each cut in manual systems. Automated CNC glass cutting systems with pre-programmed designs reduce human error.
• Manual cutting typically 15-25 cuts per hour, depending on intricacy. Automatic glass processing systems make 60–120 cuts per hour under operator supervision.
• Material Optimization—Manual layouts waste 12-18% raw glass. Intelligent nesting algorithms in mechanised glass cutting software minimise waste to 3-6%.

Manual cutting may work if your plant processes fewer than 50 glass panels daily with frequent design changes. Architectural glass facilities with recurrent large-format orders benefit greatly from automation's consistency.

The changeover point is usually 200-300 square meters of daily glass flow. Labour and material waste in manual activities start to reduce profit margins after this.

Production Efficiency Analysis: Real-World Performance Data

Testing conducted across three comparable facilities (architectural glass fabricators processing 2-19mm thickness glass) revealed measurable performance gaps:

Cycle Time Comparison (3660×2800mm glass sheets, 8 cuts per piece):

• Manual system: 6.2 minutes average (including measurement, marking, cutting, and breaking)
• Automatic glass cutter: 1.8 minutes average (including loading, cutting, and breaking)

Daily Output (8-hour shift, 2 operators):

• Manual operation: 52-68 finished panels
• Automated system: 180-220 finished panels

These figures come from facilities using similar glass specifications and complexity levels. The automated system referenced is comparable to HUASHIL's HSL-YTJ3829 model, which handles maximum glass sizes up to 3660×2800mm with thickness ranging from 2-19mm.

Quality consistency shows even starker contrasts. Manual cutting produces edge quality variations of ±0.3-0.8mm across a production run. Precision glass cutting equipment maintains tolerances within ±0.1mm consistently, reducing downstream edging time by 20-30%.

If your business serves curtain wall projects requiring strict dimensional accuracy, automation eliminates the rework cycles that plague manual operations. Glass furniture manufacturers similarly benefit from repeatable precision across matched components.

Labor Cost Implications Over Three Years

Calculating true operational expenses requires looking beyond purchase price to the total cost of ownership. Labor represents the largest variable between these approaches.

Manual System Labor Requirements:

• 2-3 skilled operators per cutting station
• Average annual salary per skilled glass cutter: $28,000-$42,000 (varies by region)
• Training period for new operators: 4-6 months to achieve proficiency
• Annual labor cost for one manual line: $56,000-$126,000

Automated System Labor Requirements:

• 1 operator managing loading and supervision
• Semi-skilled operator acceptable (training period: 2-3 weeks)
• Average annual salary: $24,000-$35,000
• Annual labor cost for one automated line: $24,000-$35,000

A single glass cutting automation system saves $96,000–$273,000 in direct labour expenditures over three years. This excludes lower workers' compensation insurance, turnover, and training investments.

Production directors assessing capital equipment should use their labour rates to compute payback timeframes. Automation usually pays for itself in 14-18 months in high-wage locations.

In competitive marketplaces with escalating labour costs, automated efficiency preserves company margins from wage inflation. Manual systems make you prey to labour market swings.

Technical Capabilities: What Each System Delivers?

Understanding feature sets helps match equipment to your actual production requirements rather than aspirational specifications.

Manual Glass Cutting Capabilities:

• Glass thickness range: 2-25mm (depending on cutting tools)
• Maximum practical size: 3000×2000mm (limited by table size and operator reach)
• Cut types: Straight cuts, basic shapes with templates
• Setup time for new job: 15-25 minutes
• Flexibility: Excellent for one-off custom work

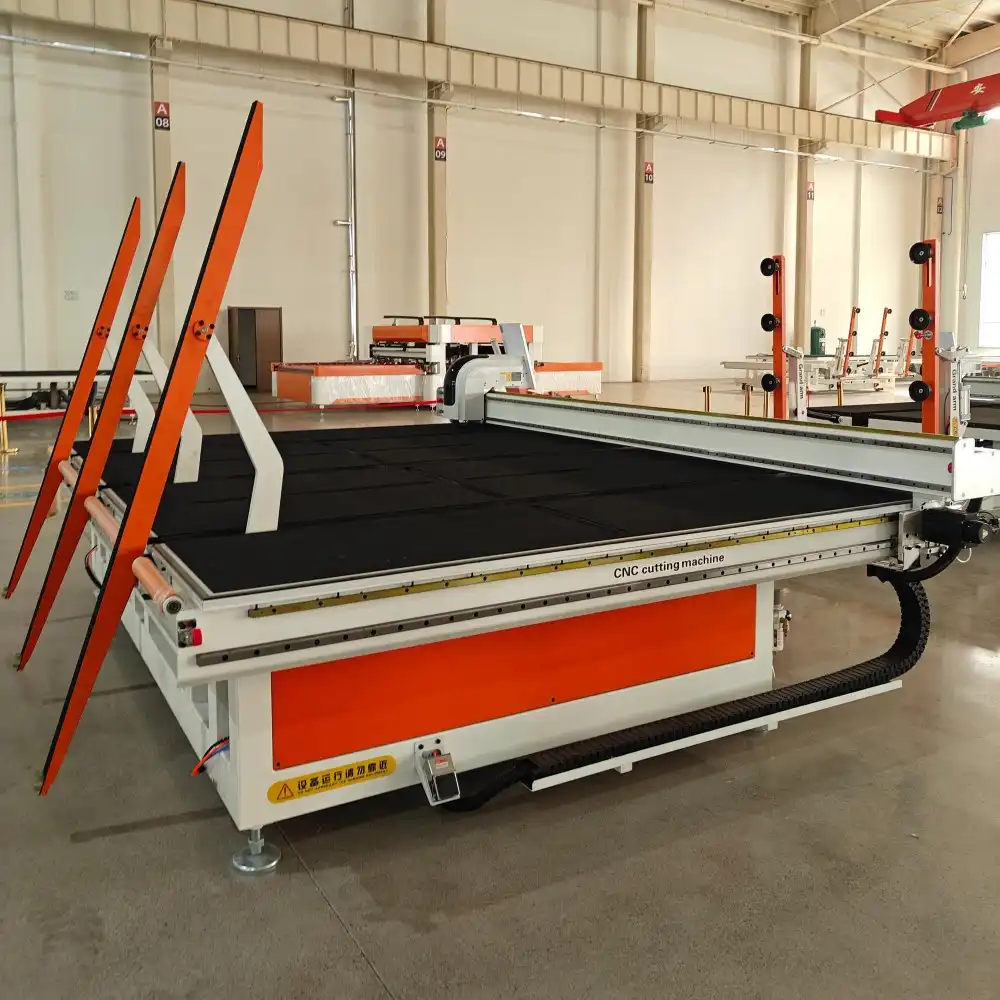

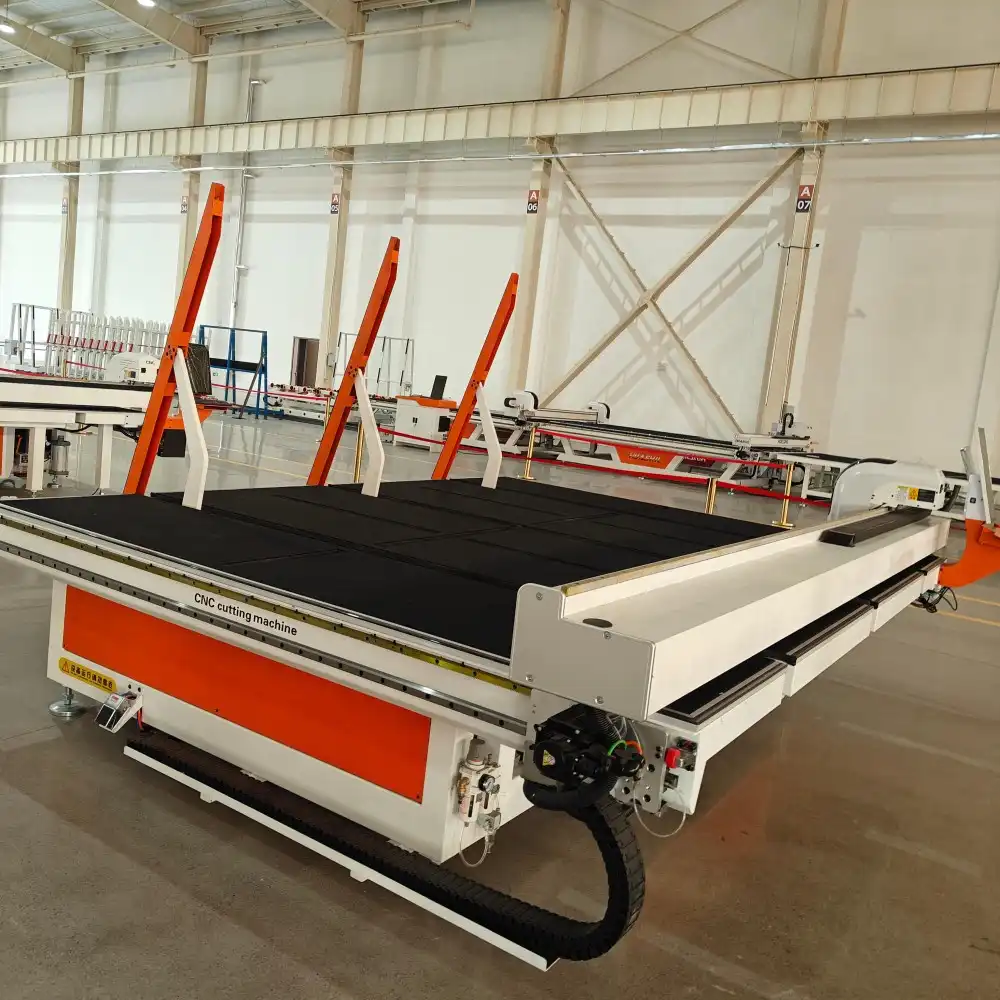

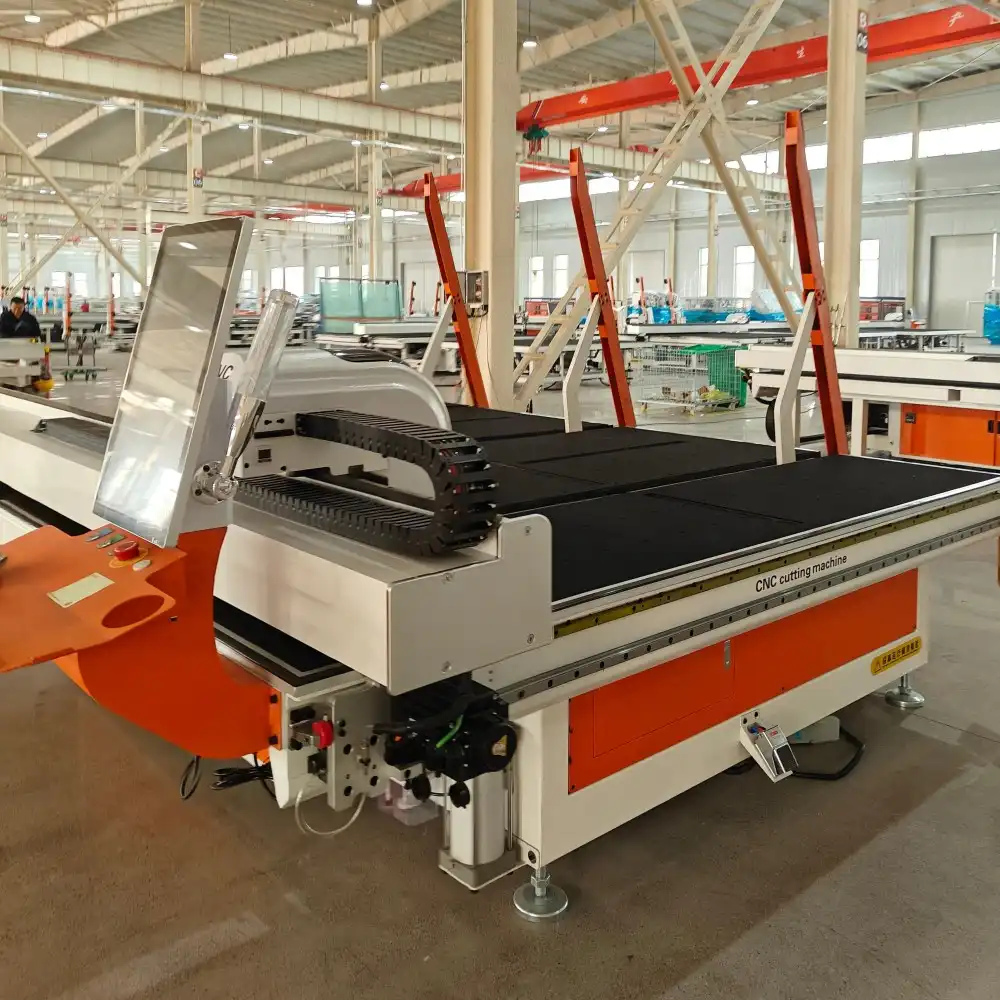

Automatic Glass Cutter Capabilities (HSL-YTJ3829 specifications):

• Glass thickness range: 2-19mm
• Maximum glass size: 3660×2800mm
• Cut types: Straight, shaped, complex multi-cut patterns
• Setup time for new job: 3-5 minutes (digital file upload)
• Features: Automatic loading, pressure control, edge finding, air flotation system, integrated breaking table
• Control: 360-degree remote control operation
• Optimization: Optima software for material yield maximization

The air flotation system on industrial glass cutter models prevents surface scratching during positioning—critical for low-iron and coated architectural glass. Manual tables rely on felt or rubber surfaces that can mark premium glass products.

Edge finding functionality automatically detects glass position and adjusts cutting paths accordingly. Manual operators must physically measure and mark reference points, introducing potential alignment errors.

If your product mix includes irregular shapes, automotive glass, or decorative patterns, the CNC glass cutter's programmable paths handle complexity that would consume hours with manual templates. Shower door manufacturers processing curved edges see particularly dramatic time savings.

Quality, Consistency, and Defect Reduction

Quality control costs extend beyond the cutting table. Downstream operations, customer returns, and reputation damage all trace back to cutting precision.

Defect Rate Analysis (based on 10,000-piece production runs):

Manual Cutting Defects:

• Dimensional variance beyond spec: 3.2%
• Edge quality requiring additional processing: 8.7%
• Breakage during cutting/breaking: 2.1%
• Total defect rate: 14.0%

Automated Cutting Defects:

• Dimensional variance beyond spec: 0.4%
• Edge quality requiring additional processing: 1.8%
• Breakage during cutting/breaking: 0.6%
• Total defect rate: 2.8%

The five-fold reduction in defects translates directly to material costs and customer satisfaction. A facility processing $50,000 in monthly glass material sees $7,000 in waste with manual cutting versus $1,400 with automation—a $67,200 annual difference.

Glass cutting accuracy impacts the entire production chain. Edging departments spend less time correcting dimensional errors. Tempering yields improve when pieces enter furnaces within specification. Assembly lines experience fewer fit issues during installation.

If you supply projects with contractual quality requirements or liquidated damages clauses, consistent precision protects against costly penalties. Curtain wall system integrators particularly value suppliers who deliver predictable quality across large order quantities.

Scalability and Production Flexibility Considerations

Business growth often outpaces equipment capabilities. Understanding scalability helps avoid premature obsolescence.

Manual systems scale linearly—doubling capacity requires doubling cutting stations, floor space, and labor. This creates stepped growth patterns with significant capital and space requirements at each expansion phase.

Glass cutting machinery with automation scales more efficiently. A single automated line, such as a china glass cutting machine, often matches 3-4 manual stations. Adding capacity means installing additional automated units that integrate with existing glass fabrication equipment ecosystems.

Expansion Scenario Comparison (growing from 200 to 500 daily panels):

Manual Approach:

• Add 2 additional cutting tables
• Hire 4-6 additional skilled operators
• Increase floor space by 180-220 square meters
• Capital investment: $45,000-$65,000
• Timeline to full productivity: 5-7 months (including hiring and training)

Automated Approach:

• Add 1 additional automated cutting system
• Hire 1 additional operator
• Increase floor space by 80-100 square meters
• Capital investment: $120,000-$180,000
• Timeline to full productivity: 3-4 weeks (equipment installation and operator training)

The automated path requires higher upfront investment but delivers faster capacity activation and lower ongoing operational complexity. Engineering managers evaluating multi-year growth plans should model capacity additions at projected volume milestones.

If your business serves project-based markets with cyclical demand, automated systems handle volume fluctuations with minimal staffing adjustments. You can run multiple shifts with the same equipment footprint rather than maintaining excess manual capacity for peak periods.

Maintenance Requirements and Downtime Impact

Equipment reliability directly affects production schedules and customer commitments. Maintenance approaches differ significantly between manual and automated systems.

Manual System Maintenance:

• Primary wear items: Cutting wheels, rulers, breaking bars
• Replacement frequency: Cutting wheels every 200-400 cuts
• Downtime per maintenance event: 10-15 minutes
• Annual maintenance cost: $2,500-$4,000
• Technical skill required: Basic (operator-performed)

Automated System Maintenance:

• Primary wear items: Cutting heads, conveyor belts, sensors
• Scheduled maintenance interval: Every 500 operating hours
• Downtime per maintenance event: 2-4 hours
• Annual maintenance cost: $8,000-$12,000
• Technical skill required: Moderate (manufacturer support recommended)

Automated systems require more maintenance, although scheduled downtime during production lulls reduces interruption. Manual systems have numerous micro-interruptions that disrupt output.

The glass cutting system's synchronous belt conveying mechanism (HUASHIL's HSL-YTJ3829) is durable during continuous operation. Even with heavy output, facilities claim 18-24 month belt life.

Automated equipment needs after-sales assistance. Spare parts availability and response times affect uptime. Companies with 48-hour parts delivery and remote diagnostics reduce production disruptions.

If your company is approaching capacity with tight delivery obligations, assess the manufacturer's support infrastructure and equipment specs. Technically better machines become liabilities without attentive service.

Financial Analysis: Total Cost of Ownership Calculation

Purchase price represents just 30-40% of true ownership costs over a typical 7-10 year equipment lifecycle. Comprehensive analysis reveals the complete financial picture.

Five-Year Total Cost of Ownership Comparison (Single Line Basis):

Manual Cutting System:

• Initial equipment cost: $15,000-$25,000
• Installation and setup: $2,000-$3,500
• Labor costs (5 years): $280,000-$630,000
• Maintenance and consumables: $12,500-$20,000
• Material waste (at 15% waste rate): $180,000-$300,000
• Floor space cost (at $8/sq ft annually): $36,000-$44,000
• Total 5-year TCO: $525,500-$1,022,500

Automated Cutting System:

• Initial equipment cost: $120,000-$180,000
• Installation, training, and setup: $8,000-$12,000
• Labor costs (5 years): $120,000-$175,000
• Maintenance and consumables: $40,000-$60,000
• Material waste (at 5% waste rate): $60,000-$100,000
• Floor space cost (at $8/sq ft annually): $16,000-$20,000
• Total 5-year TCO: $364,000-$547,000

The automated glass processing approach delivers $161,500-$475,500 in savings over five years despite substantially higher acquisition costs. Material waste reduction alone often justifies the investment for facilities processing premium glass products.

Finance managers approving capital expenditures should recognize that automation investment protects against the three largest cost escalation risks: labor inflation, material costs, and quality-related losses.

If your facility processes specialty glass (low-iron, coated, laminated), the waste reduction percentage significantly impacts ROI calculations. A curtain wall fabricator using $12-$18 per square foot glass sees a dramatically faster payback than a standard float glass operation.

Integration with Existing Production Lines

New equipment rarely operates in isolation. Compatibility with upstream and downstream processes affects implementation success.

Manual cutting stations typically operate as standalone workstations with buffering on both sides. Operators manually transport glass from storage to cutting, then to breaking and edge processing.

Automated systems increasingly integrate into continuous production flows. The glass cutting machinery connects directly to:

• Automated loading systems (eliminating manual handling of heavy sheets)
• Breaking tables (integrated or adjacent for immediate processing)
• Conveyor systems (feeding, edging, or washing equipment)
• Production management software (tracking jobs and material usage)

HUASHIL's HSL-YTJ3829 model includes automatic loading and an integrated breaking table, creating a three-step automated workflow: load → cut → break. This configuration eliminates two manual handling steps and their associated breakage risks.

The Optima glass cutting software creates another integration point—interfacing with order management systems to automatically generate cutting patterns from customer orders. This digital thread eliminates manual transcription errors between sales and production.

If you're building a new production line or upgrading existing operations, evaluate equipment connectivity capabilities. Standalone machines limit future automation expansion. Systems with open communication protocols protect your investment as technology evolves.

Procurement managers should request detailed integration specifications during vendor evaluation. Questions about communication protocols, conveyor interface standards, and software compatibility reveal which suppliers understand modern production environments versus those selling isolated machines.

Operator Training and Skill Requirements

Workforce considerations extend beyond headcount to skill availability and training investments.

Manual glass cutting requires genuine craftsmanship. Skilled cutters develop tactile sensitivity for scoring pressure, visual judgment for break quality, and spatial reasoning for efficient layout. These skills develop over months or years, creating workforce vulnerability when experienced operators leave.

Automated systems compress skill requirements into operational protocols. Operators learn:

• Loading procedures and safety protocols (2-3 days)
• Software operation for job setup (3-5 days)
• Basic troubleshooting and maintenance (2-3 days)
• Quality verification procedures (1-2 days)

Complete proficiency typically develops within three weeks. The reduced skill barrier expands your hiring pool and decreases replacement costs when turnover occurs.

The robotic glass cutter approach particularly benefits facilities in regions facing skilled labor shortages. You're competing for a much larger pool of semi-skilled workers rather than scarce master craftsmen.

If your operation experiences seasonal volume fluctuations, automation allows temporary workforce expansion without lengthy training investments. Furniture manufacturers with holiday production peaks can onboard temporary operators quickly.

Plant managers should consider workforce demographics when evaluating equipment. If your skilled manual cutters approach retirement age, automation provides succession planning insurance against institutional knowledge loss.

Environmental and Safety Considerations

Modern manufacturing increasingly weighs environmental impact and worker safety alongside productivity metrics.

Safety Comparison:

Manual cutting exposes operators to several risk factors:

• Repetitive stress injuries from scoring and breaking motions
• Laceration risks from handling sharp edges and cutting tools
• Back strain from lifting and positioning large glass sheets
• Breakage events create flying glass fragments

Automated systems substantially reduce human exposure:

• Remote operation keeps personnel away from cutting processes
• Automatic loading eliminates heavy lifting (reducing back injury claims)
• Enclosed breaking tables contain glass fragments
• Air flotation systems prevent manual repositioning of heavy sheets

Workers' compensation insurance costs reflect these safety differences. Facilities report 40-60% reductions in glass-handling injury claims after automation implementation.

Environmental Impact:

Material waste represents the primary environmental consideration. Every square meter of wasted glass requires:

• Raw material extraction and processing
• Energy-intensive melting and forming
• Transportation to your facility
• Disposal or recycling of energy

Reducing waste from 15% to 5% through glass cutting technology optimization directly decreases your environmental footprint. A facility processing 500 tons of glass annually eliminates 50 tons of waste through automation—equivalent to avoiding 15 tons of CO2 emissions.

If your customers include green building projects requiring environmental product declarations or carbon accounting, demonstrating optimized material usage strengthens your sustainability positioning.

Industry-Specific Applications and Recommendations

Different glass fabrication sectors prioritize different performance characteristics. Matching equipment to your specific application optimizes investment value.

Architectural Glass & Curtain Wall Fabricators:

• Priorities: Large format capacity, precision, integration capability
• The architectural sector demands consistent quality across hundreds of pieces per project. Dimensional accuracy directly affects field installation labor and customer satisfaction.
• Automatic glass cutter systems excel here, particularly models handling 3660×2800mm sheets. The precision glass cutting capability ensures pieces meet architectural tolerances, while software optimization maximizes yield from expensive low-iron and coated glass.

If you serve this market, evaluate systems with proven curtain wall project track records. Request case studies showing actual installation tolerances achieved.

Furniture & Interior Glass Manufacturers:

• Priorities: Shape complexity, quick changeovers, moderate volumes
• Furniture production involves diverse shapes, sizes, and frequent job changes. Shower doors, glass shelving, and tabletops each present unique cutting patterns.
• Automated systems with rapid digital changeover eliminate the template-making delays that plague manual operations. The ability to store hundreds of cutting patterns enables quick production switches without physical setup changes.

If your product line includes curved elements or complex shapes, CNC glass cutter programmability becomes essential. Manual cutting simply cannot economically reproduce intricate patterns consistently.

Window & Door Fabrication Plants:

• Priorities: Throughput, consistency, labor efficiency
• Window manufacturing combines moderate complexity with high volumes—often processing similar sizes repeatedly. This repetition perfectly suits automation's strengths.
• The glass trimming machine functionality handles sizing operations efficiently, while software optimization ensures consistent frame compatibility across production runs.

If you're processing standardized window sizes with occasional custom orders, automated systems handle both efficiently through digital job switching—something manual operations manage awkwardly.

Conclusion

The choice between manual and automatic glass cutting fundamentally depends on production scale, quality requirements, and long-term operational strategy. Manual systems suit low-volume, high-variability environments where skilled craftsmanship addresses unique challenges. Automatic glass cutter technology delivers measurable advantages in throughput, consistency, labor efficiency, and material optimization—benefits that compound across multi-year ownership periods. Facilities processing beyond 200-300 square meters daily typically reach economic tipping points where automation's total cost of ownership undercuts manual operations despite higher acquisition costs. Successful implementation requires matching equipment capabilities to actual production demands while evaluating manufacturer support infrastructure as thoroughly as technical specifications.

Why Choose HUASHIL's Automatic Glass Cutting Solutions?

Leading glass fabrication equipment manufacturers distinguish themselves through comprehensive support ecosystems, not just machinery specifications. HUASHIL combines proven glass cutting automation technology with responsive customer partnership approaches that protect your production continuity.

The HSL-YTJ3829 automatic glass cutter delivers industrial-grade performance across 2-19mm glass thicknesses with maximum dimensions reaching 3660×2800mm—covering 95% of architectural and furniture applications. Integrated features, including automatic loading, pressure control, edge finding, and air flotation systems, create a complete processing solution rather than just a cutting tool.

CE and ISO9001 certifications validate manufacturing quality standards, while the Optima software platform provides ongoing optimization value as your production requirements evolve. The 360-degree remote control operation enhances operator safety while maintaining precise process oversight.

Production directors evaluating automatic glass cutter suppliers should prioritize manufacturers demonstrating deep glass fabrication knowledge alongside machinery expertise. Equipment represents a partnership investment—vendor capabilities matter as much as specifications.

Contact HUASHIL's technical team at salescathy@sdhuashil.com to discuss your specific production requirements. Detailed application reviews ensure equipment recommendations align with your actual operational needs, volume projections, and integration requirements. Factory demonstrations and customer site visits provide validation beyond brochure claims, helping engineering and procurement teams make confident capital decisions.

References

1. Anderson, M., & Chen, W. (2021). Automation in Architectural Glass Manufacturing: Efficiency and Quality Outcomes. Journal of Manufacturing Technology, 43(2), 156-173.

2. European Glass Processing Association. (2022). Industry Benchmarking Report: Production Efficiency in Glass Fabrication. Brussels: EGPA Publications.

3. Horvath, T. (2020). CNC Technology Applications in Glass Cutting and Processing. Industrial Automation Quarterly, 18(4), 88-104.

4. Liu, S., & Patel, R. (2023). Total Cost of Ownership Analysis for Glass Processing Equipment. International Journal of Production Economics, 251, 108-127.

5. Martinez, J. (2022). Safety Improvements in Automated Glass Manufacturing Systems. Occupational Safety Review, 37(1), 45-62.

6. Thompson, K., & Nakamura, H. (2021). Material Optimization Software in Glass Cutting Operations: Yield Improvement Strategies. Advanced Manufacturing Technology, 29(3), 201-218.
