An Automatic Glass Cutting Assembly Line for Large Glass Sheets is a game-changing idea for modern glass making plants. This combined system automates the whole process, from loading raw glass sheets to precise cutting and controlled breaking. This gets rid of the need for manual work that isn't efficient and ensures consistent quality. Advanced optimization software and precise mechanics are at the heart of the technology. It can handle large glass panels (up to 4200x2800mm), which would normally need multiple workers and pose safety risks. By making these tasks easier, companies that work with architectural, car, and decorative glass can increase output, make better use of materials, and keep workers safer.
Understanding Automatic Glass Cutting Assembly Lines for Large Glass Sheets
The architectural design and operating intelligence of a high-performance automated glass processing system are what make it work. Modern automated cutting lines are much more advanced than simple motorized cutters. They use advanced technologies that are designed to handle the unique difficulties of working with large-format glass.
Core Components and System Architecture

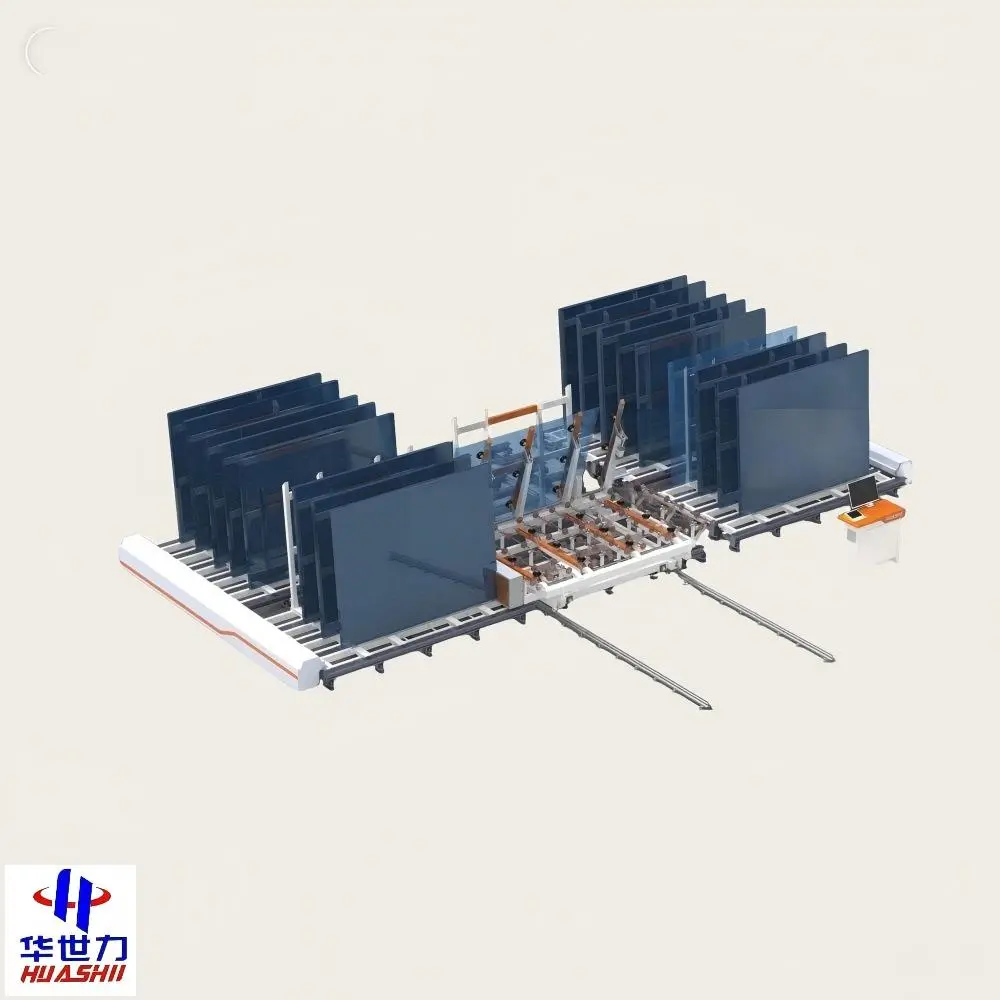

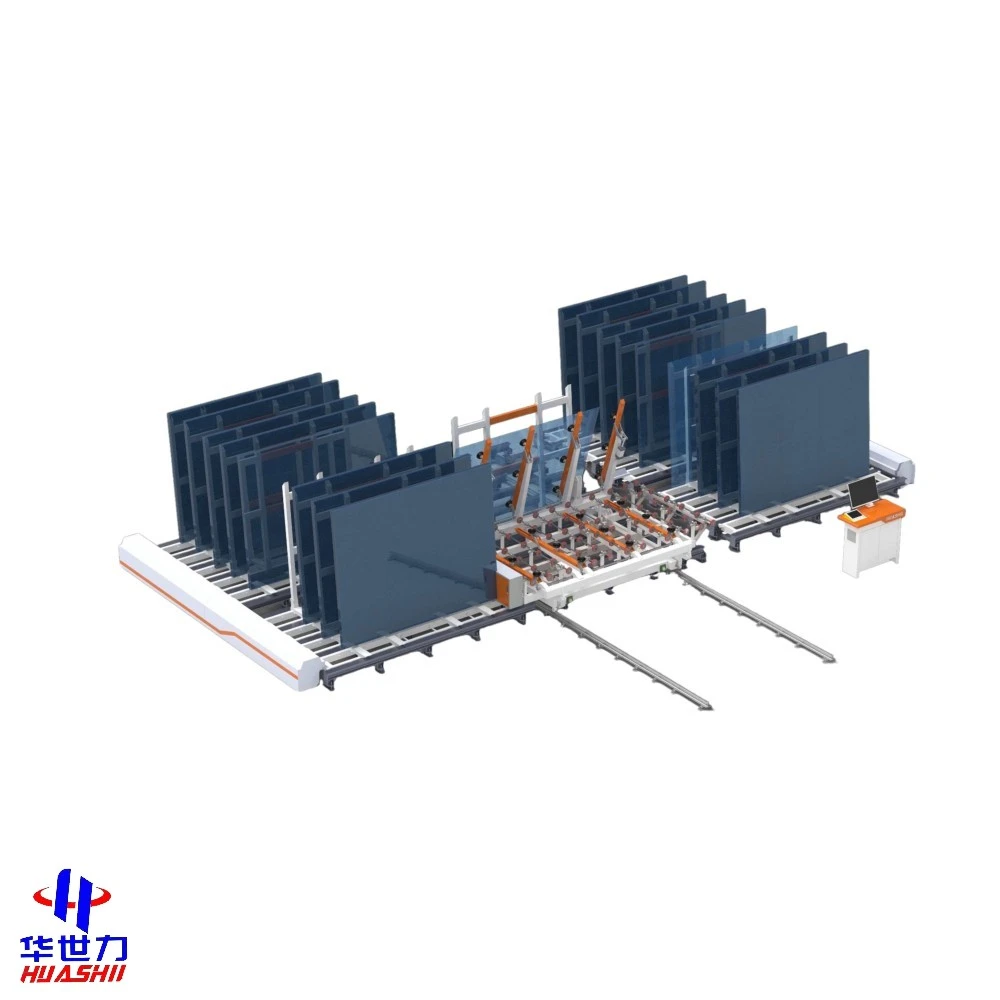

The three-table layout of the HSL-LSX4228 model shows how advanced system design can be. The loading table takes in raw glass sheets and places them so they can be worked on. The cutting table, which has precise CNC-controlled cutting heads, makes the best cuts. The breaking table then uses controlled pressure to neatly separate each piece along the score lines. This segmented method lets work go on continuously, so one sheet can be loaded while two are being cut and a third is being broken. This makes the best use of the equipment.

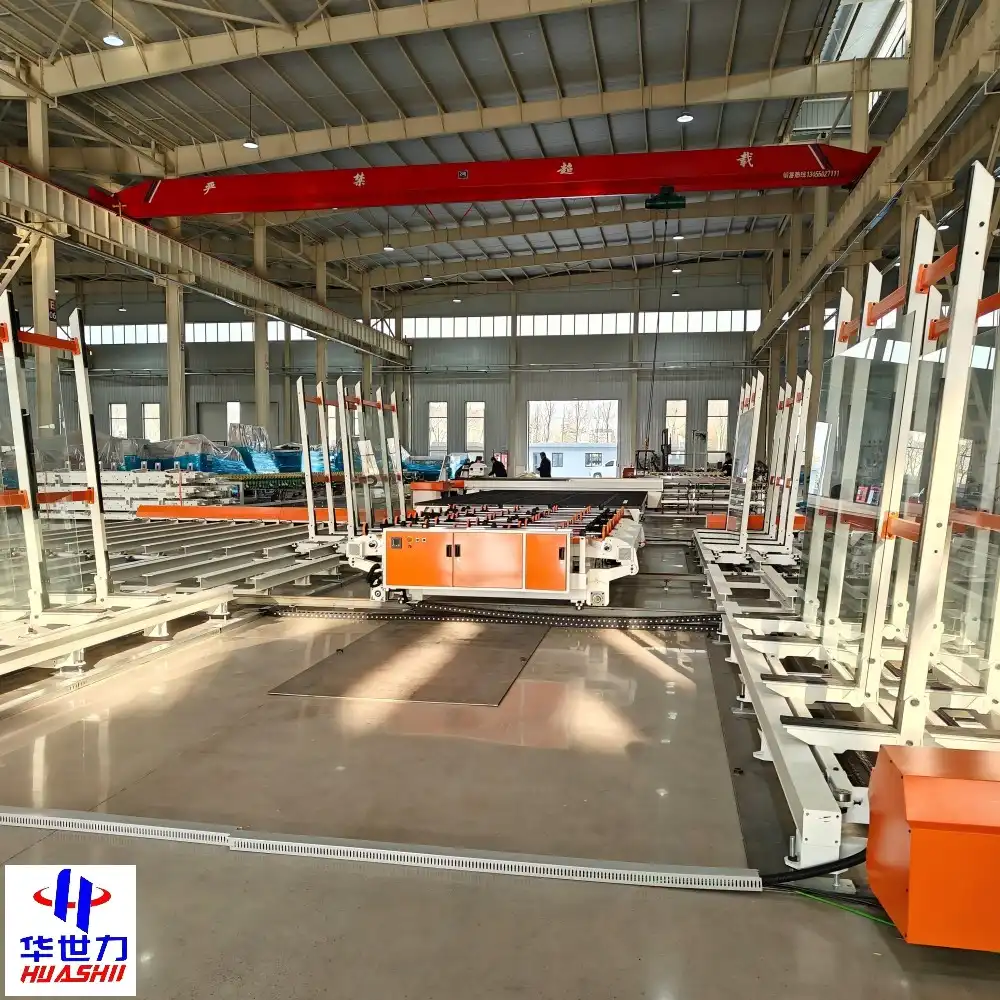

The system can work with either above-ground or underground rail setups, which lets different facility layouts work. Manufacturers can find a balance between output and floor space needs with a 2+2 station setup that can be changed based on production needs. Each side has four "grand arms," which are mechanical supports that hold glass sheets in place while they are being processed. This makes sure that the side is stable even when working with 4200mm by 2800mm panels.
Optimization Software and Precision Control
The intelligence layer that makes decisions is what sets industrial-grade automated lines apart from simple cutting tools. The Optima optimization software looks at each sheet of glass, the customer's order needs, and the cutting patterns to find the layout that uses the least amount of material. This way of computing cuts down on edge trim waste and increases the number of useful pieces that can be taken from each sheet.
The software talks to the CNC cutting heads directly and turns improved patterns into exact tool paths. Laser-guided placement systems make sure that alignment is exact to within fractions of a millimeter, which is very important when making architectural glass parts that need to fit perfectly into building frames. During the whole process, built-in safety features keep an eye on the system's status and stop operations automatically if sensors discover problems that could harm quality or worker safety.
Safety and Compliance Standards
There are risks that come with working with large sheets of glass, but automation successfully reduces them. Modern cutting lines have many safety features, such as emergency stop systems, protective barriers around moving parts, and sensor arrays that can tell when a user is in an area that isn't supposed to be there. These features are in line with international safety standards for the workplace, such as OSHA rules in the US and CE marking rules for tools sold around the world.
The automated handling gets rid of the need for operators to lift, position, or move heavy glass sheets by hand, which is a common way for workers to get hurt in traditional glass manufacturing facilities. Instead of doing hard, possibly dangerous work, operators interact with the system through easy-to-use control panels that are placed a safe distance from the processing zones. They watch operations instead of doing them.
Benefits and Efficiency of Automatic vs. Manual Glass Cutting Lines
Choosing to switch from cutting glass by hand to using a machine means spending a lot of money that needs to be clearly justified. Procurement teams can make stronger business cases when they know the real differences in performance, cost structure, and scalability.
Production Speed and Throughput Comparison
Cutting things by hand depends on the skill and energy of the person doing it. An experienced technician might be able to make 15 to 20 cuts per hour on big sheets, but the quality of their work will get worse as their shifts get longer. Automated systems like the HSL-LSX4228 keep running at the same speed, usually processing 40 to 60 sheets an hour, based on how complicated the job is. Their performance doesn't change over time.
This throughput edge grows as production shifts happen. Under the same conditions, a plant with two eight-hour shifts can handle about 240 to 320 manual cuts per day, but only 640 to 960 automated cuts. The difference in volume is even bigger in high-mix production settings, where switching between different cut patterns often slows down human work but only needs software changes on automated lines.
Precision and Quality Consistency
Variability is introduced by human workers, no matter how experienced they are. There may be millimeter-level differences in measurements, cutting pressure can change, and alignment mistakes can happen. Due to these discrepancies, there are more rejections and the need for extra processing to fix dimensional mistakes. With CNC accuracy, Automatic Glass Cutting Assembly Lines get rid of this variation, making thousands of cuts that are all the same within ±0.3mm.
The effect on quality goes beyond being accurate in terms of dimensions. When automatic systems apply consistent cutting pressure, the edges break cleanly, which means that less grinding is needed in later steps of the process. This cuts down on secondary operations, which lowers overall production costs and improves the look of the final product. This is especially important for architectural glass applications, where the quality of the edges directly affects how the glass looks.
Material Utilization and Waste Reduction
In terms of money, material efficiency may be the most appealing benefit. Even with paper models to help, planning a layout by hand is not as efficient as using a computer. The Optima software quickly sorts through thousands of possible cutting patterns to find the ones that get the most value out of each sheet of glass.
Studies of the industry show that optimization software usually increases the amount of material produced by 5 to 12 percent compared to planning by hand. When processing hundreds of sheets every week, this level of speed saves a lot of money. A facility that processes 500 sheets of paper every month at $150 each saves $37,500 to $90,000 a year on material costs just by making better use of its resources. It often recovers a big chunk of its equipment investment in the first two years of operation.
Return on Investment Analysis
To make a complete ROI model, you need to look at more than just the cost of the tools themselves. The most obvious effect is the drop in labor costs. One operator usually oversees activities on an automated line, while three to four people would be needed to do the same work by hand. This cuts direct labor costs by 60 to 75 percent. When perks, insurance, and overhead costs are taken into account, mid-sized businesses often save more than $120,000 a year.
The savings in labor, the best use of materials, higher output, and better quality all add up to a very appealing financial picture. Payback times for most facilities are between 18 and 36 months, depending on the amount of production. After that, the equipment continues to improve margins, which leads straight to profit. Automation not only makes money, but it also has strategic benefits in terms of capacity growth, which means that production can be increased quickly to meet demand spikes without having to hire more people.
Choosing the Right Automatic Glass Cutting Assembly Line for Your Business
To choose equipment that fits specific working needs, you need to carefully look at it from a lot of different angles. Due to the wide range of systems available, ranging from small single-table units to large multi-station production lines, it is important to carefully match skills with needs.
Assessing Your Production Requirements
The first step in the evaluation process is to take an honest look at the present and planned production volumes. For places that process less than 100 sheets per week, small semi-automated solutions might be enough. But for places that process more than 500 sheets per week, full assembly lines are needed for their ongoing throughput capacity. Think about product mix complexity as well as the number. When it comes to optimization, companies that mostly make rectangular architectural glass have different problems to solve than companies that make complicated shapes for furniture.
The specs of the glass also affect the choice of tools. The HSL-LSX4228 can handle up to 4200x2800mm, which is the largest size that can be used for most architectural and curtain wall projects. However, facilities that mostly work with smaller forms may need to adjust how they use their floor space. Another important factor is the ability to handle different thicknesses. Make sure that the tools you choose can handle all of your thickness ranges, including any planned future product expansions.
Evaluating Manufacturers and Supplier Credentials
There are both large, well-known multinational companies and small, specialized regional companies in the market for automated glass processing tools. Even though knowing a brand name makes you feel better, procurement teams should judge suppliers based on more than just brand knowledge. More than general industrial automation experience, manufacturing experience in glass processing equipment is more important. This is because handling glass offers unique challenges in terms of fragility, weight distribution, and edge quality.
Check the credentials of the provider in more than one way. Ask for references from customers in the same business and area as you are working in, since implementation experiences vary a lot between applications and regulatory environments. Look at case studies that show projects that are about the same size and level of difficulty as the one you want to set up. Equipment certifications add another level of verification. Make sure that the suggested systems have the right safety certifications for your area, like UL listing for installations in the United States.
Key Procurement Considerations
Prices for Automatic Glass Cutting Assembly Lines change a lot depending on how they are set up, what customizations are needed, and what services are included. Plan for the total cost of installation, which includes shipping, setting up the equipment, teaching the operators, and getting the first stock of spare parts. Depending on how automated the system is and how much it is customized, the total cost of a full system is usually between $180,000 and $450,000.
The warranty terms should be carefully read because they show how confident the maker is in the reliability of the equipment. Standard coverage for mechanical parts lasts between 12 and 24 months, but you can get longer coverage for key subsystems. More important than the length of the warranty is the infrastructure for support after the warranty. Make sure that suppliers keep spare parts in stock and offer quick technical help through channels that work with your business hours.
Custom-configured systems usually take 12 to 20 weeks to arrive after the order is confirmed and the installation is finished. Plan your production capacity properly, and keep the lines of communication open with your suppliers about how the milestones are coming along. Flexible payment plans, like leasing equipment or setting up payments over time, can help with capital budgeting and offer tax benefits that financial teams should talk over with their tax experts.
Customization and OEM Capabilities
Standard equipment configurations work for most production situations, but many facilities find that customizing equipment to work best for their unique workflows is more beneficial. Systems that can be configured, like the HSL-LSX4228, which lets you change the number of stations and the way the rails are set up, give you a lot of freedom without having to do all the work yourself. When looking at customization choices, you should weigh the extra cost against the operational benefits and make sure that the changes make a real difference instead of just guessing what people might want in the future.
If a distributor or system integrator wants to buy tools to sell or use in bigger production systems, they should look into OEM programs. These deals usually offer lower prices for large orders, help with customization, and chances to co-brand, all of which improve market standing. When there are a lot of resellers competing on price alone, building strong OEM relationships with dependable makers helps you stand out.
Maintenance and Operational Best Practices for Long-Term Performance
The purchase of equipment is just the start of a long-term working relationship. To get the best return on investment, you need to be disciplined about upkeep, help operators get better at their jobs, and keep improving the process throughout the lifecycle of the equipment.
Routine Maintenance Protocols
Automated glass cutting systems have many mechanical, electrical, and gas parts that need to be checked regularly to keep them working at their best. Setting up thorough preventive maintenance plans keeps small problems from getting worse and stopping production. Critical wear parts should be checked every day, such as the state of the cutting wheel, the integrity of the vacuum cups on the handling arms, and the cleanliness of the rails. Even small pieces of glass building up on the guide rails can make setting less accurate, so they need to be cleaned every day.
As part of weekly maintenance, moving parts are oiled, pneumatic pressure levels are checked, and electrical connections are checked for signs of rust or looseness. As part of the machine's monthly maintenance, the cutting positions should be checked to make sure they match software orders within the acceptable ranges. Recording all maintenance tasks makes useful historical records that help find new patterns before they lead to failures. This way, parts can be replaced before they break during planned downtime instead of being fixed after the fact during production hours.
Troubleshooting Common Operational Challenges
In demanding production settings, operational problems will always happen, even if the design is strong. Loss of edge quality is often a sign that the cutting wheel is worn out and needs to be replaced, which is a simple service that only takes 15 to 20 minutes. Positioning errors can happen because of encoder calibration drift, which can be fixed by using routines for recalibration that are available through operator interfaces. Problems with vacuum systems are often caused by seals wearing out or filters getting clogged. Both of these problems can be fixed by replacing worn-out parts on a regular basis.
Operators who are good at first-level fixing are key to reducing downtime. Operators should be able to figure out what's wrong with common problems, tell the difference between problems that can be fixed by the operator and ones that need technical help, and come up with temporary solutions that keep production going while they wait for service. Keeping detailed fixing records, such as lists of symptoms, diagnostic steps, and steps taken to fix the problem, builds institutional knowledge that makes the organization less reliant on outside help over time.
Operator Training and Skill Development
It doesn't matter how advanced the technology is if the people who run the system don't know how to fully use its powers. Comprehensive training programs should cover a range of skill levels, starting with basic operation for new employees and moving on to improvement techniques for more seasoned workers. Initial training usually happens during installation, with equipment suppliers giving on-site lessons on how to start up, run normally, do regular maintenance, and shut down.
Advanced training lessons teach operators how to use optimization software to test how well a cutting pattern works and change parameters for different types of glass or quality standards. Making internal training materials that are specific to your facility's layout and output mix helps suppliers train new employees and makes room for staff turnover. Operators can keep up with software updates and best practices that come up from operating experience by going to regular refresher sessions.
Predictive Maintenance Through IoT Integration
The most advanced automated systems now have Industrial Internet of Things sensors that keep an eye on equipment health signs all the time. Vibration sensors find worn bearings, thermal sensors find parts that are getting too hot, and current draw tracking shows that motor performance is dropping before they break. This information flows to cloud-based analytics tools that use machine learning algorithms to find patterns that point to failures that are about to happen.
The way maintenance is done changes from time-based schedules to condition-based treatments with predictive maintenance. Instead of changing parts at set times on the calendar, maintenance is done when data shows that they are actually needed. This makes the most of both the component's lifespan and the maintenance resources that are available. With remote diagnostics, equipment manufacturers can keep an eye on their customers' installations and often find and fix problems before workers even notice a change in performance. This team-based method to managing equipment makes the most of uptime while dividing the maintenance work between facility workers and supplier support teams.
Conclusion
Automatic Glass Cutting Assembly Lines have completely changed the way large-format glass is processed, making it faster, safer, and better at quality control than human methods. When precision mechanics, smart optimization software, and automated material handling are all used together, they cover the whole process, from loading to separating finished pieces. The measurable benefits, such as increases in throughput of 200 to 300%, material yield improvements of 5 to 12 percent, and labor reductions of more than 60 percent, make for a strong return on investment that supports strategic growth efforts. As the manufacturing industry moves toward smart integration and AI-enhanced optimization, choosing tools that can do the job and work with new technology is becoming more and more important for staying competitive in markets that are always changing.
FAQ
Q1 What is the typical lifespan of an Automatic Glass Cutting Assembly Line?
Industrial automated glass cutting equipment typically delivers 12-15 years of productive service when maintained according to manufacturer recommendations. The actual lifespan depends heavily on production intensity, maintenance discipline, and operating environment quality. Facilities running single-shift operations in climate-controlled environments often exceed 15-year service lives, while high-intensity three-shift operations in harsh environments may require major refurbishment or replacement around the 10-year mark. Regular replacement of wear components and periodic control system upgrades extend useful life considerably.
Q2 How does automation improve workplace safety compared to manual cutting?
Automation eliminates the primary injury risks in glass processing—manual handling of heavy sheets and direct interaction with cutting tools. Automated loading systems remove the need for operators to lift panels weighing 200-400 pounds, virtually eliminating back injuries and crush hazards. Enclosed cutting zones with interlocked safety barriers prevent operator contact with moving components. The cumulative effect reduces workplace injuries by approximately 75-85% compared to equivalent manual operations, lowering insurance costs while improving workforce morale and retention.
Q3 Can automated systems handle different glass thicknesses and types?
Modern automated cutting lines accommodate substantial variation in glass specifications. The HSL-LSX4228 processes glass ranging from 2mm to 19mm thickness with simple adjustment of cutting pressure and breaking force parameters through the control interface. The system handles annealed, tempered, and laminated glass, though each type requires specific processing parameters. Some specialized coatings may require cutting wheel selection optimization, but the equipment architecture supports diverse product portfolios without mechanical modifications.
