One thing that comes up over and over again when I talk to plant managers and production directors in the glass fabrication industry is how to get cutting accuracy that meets modern standards without going over budget. CNC glass cutting equipment has changed this problem by replacing manual processes that aren't always accurate with automated ones that are. With advanced servo motors, real-time feedback sensors, and CAD/CAM integration, these computer numerical control systems can make the same thing over and over again with an accuracy of ±0.1mm. This leads to less waste, fewer reworks, and much better edge quality, all of which are important for architectural glass fabricators, curtain wall integrators, and furniture manufacturers who need to compete in today's tough markets.
Challenges in Traditional Glass Cutting and the Need for CNC Technology
Accuracy Limitations of Manual Glass Cutting Methods
Cutting glass the old-fashioned way depends a lot on the skill of the person doing it, and even the most skilled craftspeople can make mistakes. Edges made by hand-guided cutters aren't always straight, so a lot of work needs to be done over and over again. This is especially true when cutting complicated shapes or large glass sheets longer than 3000mm. I've seen fabrication plants with scrap rates higher than 8% because manual scoring depths change due to tired operators, changes in room temperature, and tool wear that goes unnoticed for hours.
Rising Costs and Production Delays
These problems with accuracy affect the whole production schedule. Rework takes up time that could be used on new orders, and wasted materials have a direct effect on profit margins. This is especially important when working with specialty substrates like low-iron glass that costs more than regular float glass. When curtain wall contractors are working on projects with tight deadlines, they can't afford to be held up by parts that don't measure up during installation dry-fits.
Why Procurement Managers Must Prioritize Precision
Investing in precise cutting has a measurable return on investment (ROI) that goes beyond saving money right away. Accuracy that doesn't change means fewer customer complaints, fewer warranty claims, and the chance to bid on projects with tighter tolerances, like frameless glass assemblies or high-end shower enclosures that can't have gaps bigger than 1 mm. Automated precision also protects your reputation, which is important in a field where word-of-mouth is a big part of getting contracts.
How CNC Glass Cutting Equipment Works to Enhance Accuracy?
Precision Control Systems and Real-Time Feedback
Modern automated glass cutting machines employ closed-loop servo systems that monitor cutting head position thousands of times per second. When the cnc glass cutting equipment senses a deviation from the planned path, whether it's because the glass thickness changed or the conveyor belt moved, it immediately changes the pressure and speed to keep the target cut line. This responsiveness gets rid of the kinds of mistakes that happen when you do things by hand, like when a 0.5 mm drift at the beginning of a cut turns into a 3 mm mistake by the other edge of the sheet.
The HUASHIL HSL-YTJ3826 model demonstrates this principle through its automatic pressure control system, which changes the cutting force based on the thickness of the glass, which can be anywhere from 2mm to 19mm. With automatic edge-finding sensors, the machine sets precise reference points on every sheet, no matter how it was loaded, removing another common area where people make mistakes.
CAD/CAM Integration and Digital Workflow
Cutting accuracy has changed a lot since paper templates were replaced with digital design files. Engineers use CAD software to make precise cutting patterns, which are then analyzed by the machine's Optima optimization software to find the best way to cut with the least amount of waste. This digital workflow gets rid of transcription mistakes and makes sure that the cutting head does exactly what the designer wants.
There are also cutting parameters stored in CAM systems for different types and thicknesses of glass. These include scoring depth, traverse speed, and oil flow rates. When switching from 6mm tempered glass to 12mm low-iron substrates, operators only have to choose the right program. They don't have to re-calibrate many settings by hand, which can lead to mistakes. This feature has cut setup time from 45 minutes to less than five minutes, and it has also made first-piece accuracy better.
Advanced Cutting Heads and Tool Technology
Cutting head design has a direct effect on the quality of the edges and the accuracy of the measurements. Diamond cutting wheels with hardness ratings above 8000 HV keep scoring depths the same over thousands of linear meters, and spindles that are perfectly balanced keep vibrations to a minimum so that microfractures or chipping don't happen. Some systems use lasers to help score very thin glass (less than 2 mm), which is not safe for mechanical scoring because it could break very badly.
The air flotation system in models like the HSL-YTJ3826 does two things: it keeps heavy glass sheets in place while they are being cut and stops friction that could cause them to move laterally. Cutting accuracy is better when a 3660mm x 2440mm sheet floats on an air cushion instead of dragging across rollers. This is because the substrate stays still in relation to the cutting head the whole time.
Key Features of CNC Glass Cutting Equipment that Guarantee Precision
Servo Motors and Drive Systems
The motion control hardware is what makes any precision cutting system work. Positioning accuracy of up to 0.01 mm is possible with high-resolution servo motors. This is very important when cutting shapes with tight radius curves or complex geometric patterns. Along with linear guides and ballscrew assemblies, these motors keep everything in the machine straight and parallel across its entire working area.
Here are the main technical differences between entry-level CNC glass cutters and industrial-grade ones:
High-Precision Servo Systems in cnc glass cutting equipment: These days' servo drives keep the cutting speed within 1% of being the same across the whole traverse. This stops the changes in speed that cause uneven scoring depth. When combined with encoder feedback, these systems notice changes in mechanical resistance, like when the cutting wheel hits a stone in the glass, and make adjustments in real time to keep the tool from breaking or scoring stops.

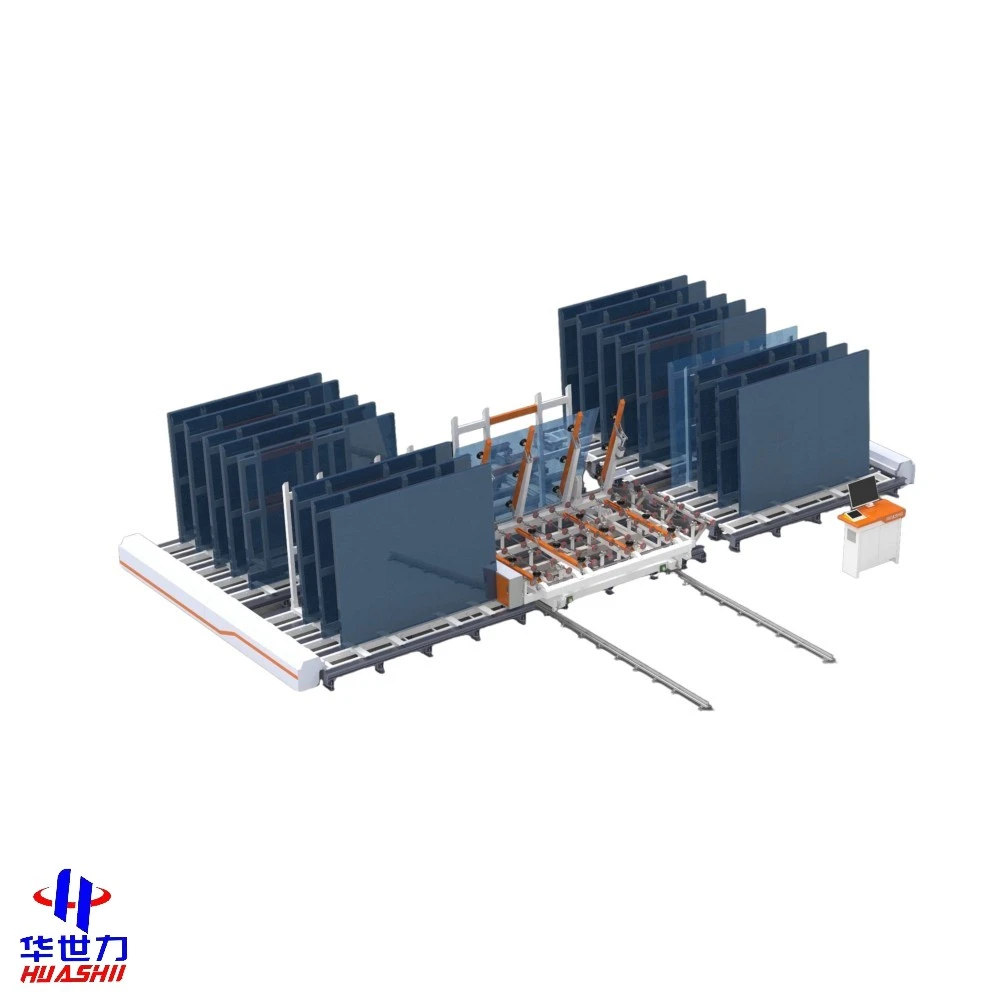

Intelligent Material Handling: Automatic loading systems with vacuum suction cups get rid of mistakes made by hand that put sheets on the cutting table in the wrong place. With a repeatability of ±0.5mm, the HSL-YTJ3826's automatic loading function sets the glass in place, creating a stable reference frame for all future cutting operations. When synchronous belts move glass, the material moves smoothly without jarring or shaking.
Nesting Optimization Software: CAM programs like Optima look at the size of the sheet and the cut patterns that need to be made to come up with layouts that make the best use of the material and often cut scrap from 12% to below 4%. In addition to saving money, this optimization makes sure that cutting paths don't go through troublesome areas near sheet edges, where high levels of mechanical stress make it more likely that the sheet will break.
Safety and Process Monitoring: Proximity sensors sense when an operator is nearby and stop the cutting head within 50 milliseconds, keeping the operator safe and the machine's position accurate. It remembers where it stopped and picks up where it left off, so it doesn't have to be started all over again. Servo drives are built with emergency stop circuits to keep them from overshooting, which could damage both the glass and the cutting tools.
When all of these things come together, they make a factory where accuracy is the norm rather than the exception. Architectural glass fabricators say that within the first six months of using CNC, the number of mistakes drops by 60–75%. At the same time, throughput goes up because operators spend less time fixing mistakes and more time cutting.
Automated Safety and Quality Control
Besides the obvious safety benefits, automated monitoring systems directly improve the accuracy of cutting. When sensors detect broken glass, they stop the machine right away so that the broken pieces don't damage the cutting table surface. Tables that are scratched or pitted create friction points that make it hard to make more cuts. Tool wear monitors keep an eye on the condition of the cutting wheel and let operators know when it gets bad enough that the quality of the edge is compromised.
Types of CNC Glass Cutting Machines and Their Application in Different Industries
Flatbed CNC Cutters for Architectural and Automotive Applications
Flatbed systems are the most popular type of architectural glass because they can handle large sheets (up to 3660mm x 2440mm and even bigger) that are commonly used for commercial building facades and curtain wall construction. The horizontal cutting table keeps heavy glass stable and lets operators see what they're doing as they cut, which is helpful when working with expensive low-iron or coated glass, where mistakes cost a lot.
Flatbed cutters are sought after by auto glass makers because they can easily cut windshields and side windows with complex curves and shapes. Modern models, like the HSL-YTJ3826, have a remote control that can be used in all directions. This lets operators move the cutting bridge precisely into place for the best viewing angles during setup and first-piece verification. This cuts down on setup mistakes that could ruin a whole production run.
Specialized Tools for Working with Furniture and Decorative Glass
Furniture makers who make glass countertops, shelves, and display cases need to be able to cut both straight edges and corners with a radius. CNC systems with rotary cutting heads are great for these mixed-geometry tasks because they can keep the quality of the edge the same whether they're cutting a straight line that's 1200 mm long or a corner with a radius of 50 mm. Because complex nested patterns can be programmed, a single sheet can make many finished parts without having to be handled in between.
The edge-finding and automatic positioning features are especially helpful for people who make shower doors. Because tempered glass can't be cut after it has been heated, it is very important that the measurements are correct when it is first being cut. When the final assembly is done, hardware will fit perfectly into holes, notches, and overall dimensions that are held to within ±0.2mm tolerances on all four edges.
Solutions That Are Made Just for Curtain Wall and System Integrators
Integral production lines that cut, edge, drill, and wash in one continuous automated workflow are often what curtain wall contractors need. OEM manufacturers, such as HUASHIL, make custom configurations where the cutting table feeds directly into processes further down the line. This eliminates the need for workers to move materials by hand between operations. With little work, these integrated systems can take a standard-size panel from a raw sheet to a part that is ready to be installed in less than 10 minutes.
The HSL-YTJ3826 is a great base for these kinds of custom lines because its 5550mm x 4925mm footprint makes it easy to connect both storage systems and processing equipment further down the line. The CE and ISO9001 certifications make sure that the company meets international safety standards, which is very important when exporting finished glass products or when working with multinational companies that need quality systems that are written down.
Conclusion
Consistently cutting glass with accuracy is no longer a choice for companies that want to compete in markets like architecture, cars, and furniture, where quality standards keep going up. CNC glass cutting equipment gets around the main problems with manual methods by combining precise servo control, real-time feedback systems, and CAD/CAM integration into automated systems that work well together. The HSL-YTJ3826 is a good example of how modern cutting systems can improve accuracy in measurements, edge quality, and material use while also cutting down on labor costs and production cycle times. Plant managers and engineering directors who invest in high-precision equipment set up their businesses to have a long-term competitive edge in markets that are becoming more demanding.
FAQ
Q1 What factors have the most impact on the accuracy of CNC glass cutting?
Cutting accuracy is based on three main factors: how rigid the machine frame and motion parts are mechanically, how well and quickly the servo control system works, and how good the cutting wheel is in condition. The HSL-YTJ3826 solves these problems with its strong 5550mm x 4925mm structure, high-resolution servo drives, and automatic pressure control that takes into account tool wear. Environmental factors like stable temperatures and vibration isolation also play important roles, especially in places where tolerances are less than ±0.15mm.
Q2 How does CNC cutting accuracy compare to laser cutting for glass?
Accuracy of ±0.1 to ±0.2mm for straight cuts and ±0.3mm for complex curves is typical for CNC mechanical scoring followed by controlled breaking. This is good enough for most architectural and furniture applications. Laser cutting is a little more accurate (down to ±0.05mm) and doesn't put any stress on the parts, but it costs a lot more to set up and run. The choice depends on the needs of the application. For example, laser precision is needed for automotive windshields and specialty electronics cover glass, while CNC mechanical systems are more cost-effective for making window units and shower doors.
Q3 What is the typical return on investment timeline for CNC glass cutting equipment?
Calculating ROI depends on how much is being made, how much labor costs, and how much materials cost, but most fabricators get their money back in 18 to 30 months. The calculation should include both hard and soft benefits. Hard benefits include less scrap and rework, which saves money, and soft benefits like more capacity and the ability to take on higher-margin jobs that need tight tolerances. A medium-sized business that works on 300 square meters of space every day can save between $2,000 and $3,500 a month just by cutting down on waste. This is before the time saved by automating tasks.
