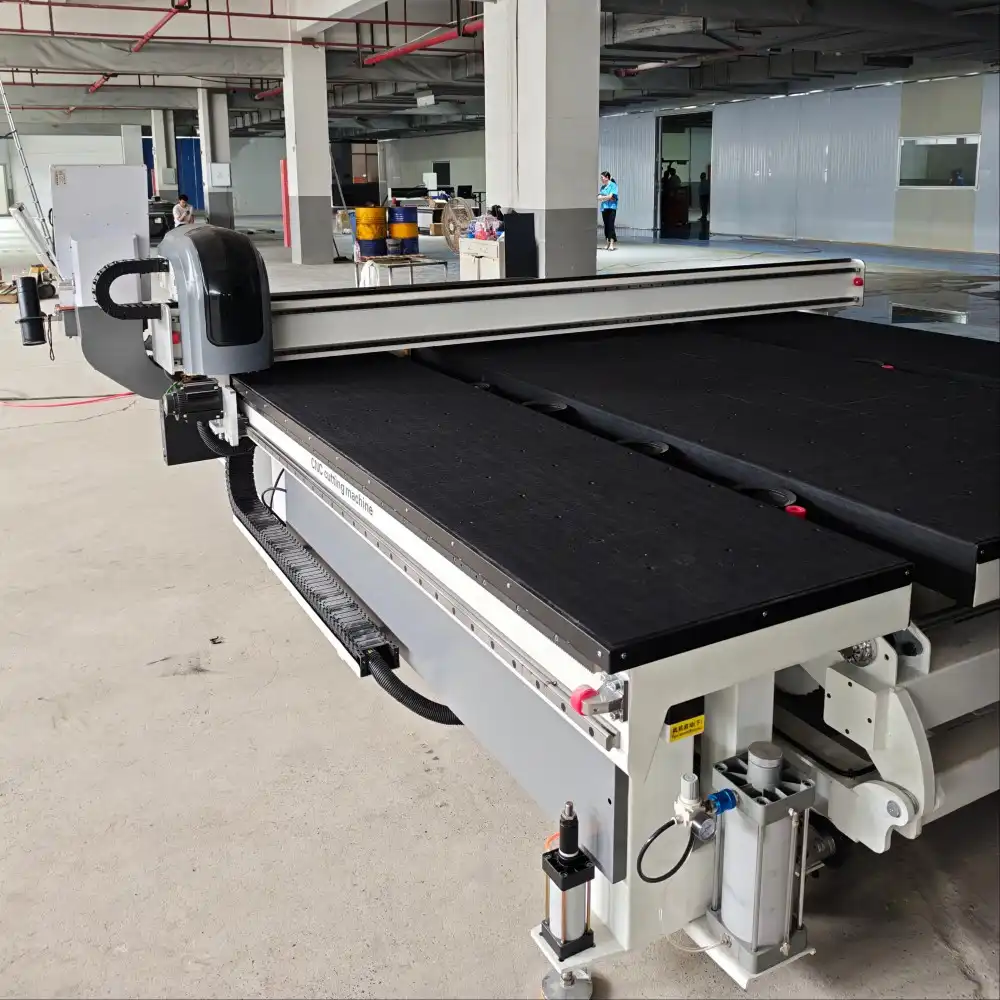

When it comes to protecting your manufacturing investment, the single most effective method is to ensure that your semi automatic glass loading machine is undergoing proper maintenance. In order to maintain its reliability, this particular kind of equipment, which comprises a flipped cutting table with manual loading, three ejector rods, and Optima optimisation software, is intended to handle glass sheets with dimensions of up to 3660×2440mm and needs continuous care and attention. Even well-built machines might have jamming, misalignment, and hoover loss if they do not have a planned maintenance schedule in place over their lifetime. Your team will be able to maintain tight cycle times that are tight and safe glass handling that is safe if they follow this guide, which talks through everything from daily maintenance to troubleshooting.

Understanding Common Maintenance Challenges of Semi-Automatic Glass Loading Machines

If you want to make a strategy for the maintenance of your equipment, it is useful to know why they break down. Problems do not materialise out of nowhere; rather, they begin on a modest scale and gradually become more severe over time.

Jamming and Misalignment

When garbage is located in close proximity to the guide rails or the conveyor route, it is the majority of the time that it prevents the glass from loading. There are a few factors that may potentially come in the way of the orientation of the glass sheets that are being loaded, which can be as large as 3660x2440mm. In situations where the ejector rods and the turned cutting table are not properly aligned, people put a lot of strain on one another. It is possible that this will result in errors in the score or shattered glass.

Wear on Suction Cups and Vacuum Components

After being used several times, sticky cups eventually become unusable. Heavy glass sheets need to be held securely, but a cup that is worn out cannot maintain the vacuum seal that is necessary. There is a possibility that the machine could stop working or, even worse, that the glass will fall while it is being moved if the vacuum pressure lowers to an unsafe level. Both the vacuum lines and the vacuum cups need to be inspected on a regular basis.

Electrical and Sensor Malfunctions

The cycle logic of the machine is controllable via sensors. Dust, vibration, and connections that are too loose on the lines are the primary causes of the majority of sensor mistakes. For machines that cannot walk via remote control, such as this one that can't walk but has walking wheels that can be attached and moved by hand, it is even more critical to have this capability. There is a possibility that the control signals will not function properly if the ejector rods move at the incorrect moment. As a result, the loading procedure would be started.

If these problems are not addressed, not only will the job be slowed down, but it will also put individuals in danger and significantly reduce the amount of time that the equipment may be used.

Essential Maintenance Procedures for Semi-Automatic Glass Loading Machines

Facilities that fail to meet their production objectives and those that suffer from unscheduled downtime are differentiated by the presence of a systematic maintenance program. One way to break it down is as follows.

Daily and Weekly Cleaning Routines

For a semi automatic glass loading machine, every shift should end with a wipe-down of the guide rails and conveyor belt using a lint-free cloth and a mild, non-abrasive cleaning agent. Glass dust is abrasive and accelerates wear on moving parts. The suction cups should be checked visually for cracks or deformation. Weekly, apply a recommended lubricant to the guide rails and check the conveyor belt tension. Avoid petroleum-based lubricants near rubber components.

Periodic Mechanical and Electrical Checks

On a monthly basis, perform the following:

• Sensor calibration: Verify that position sensors are triggering at the correct points in the loading cycle. Recalibrate using the manufacturer's reference settings.
• Wiring inspection: Check terminal connections for corrosion or looseness. Vibration from daily operation gradually loosens connections over time.
• Mechanical fastener check: Tighten bolts on the three ejector rod assemblies and the flipped cutting table hinge mechanism. Loose fasteners cause positional drift during glass loading.
• Conveyor alignment: Measure belt tracking and adjust if the belt has shifted more than 2mm from center.

These checks take less than an hour but prevent the majority of unplanned stoppages.

Safety System Inspections

Emergency stop buttons, safety sensors, and warning indicators must be tested weekly. Press each E-stop and confirm the machine halts within the required response time. Check that all warning lights function correctly. Operator control panels should be cleaned and inspected for sticky or unresponsive buttons. Safety compliance isn't optional — it protects both personnel and glass inventory.

Practical Troubleshooting Tips to Minimize Downtime

When you take good care of a machine, it will still break down. So that work can begin again as soon as possible, it is important to figure it out quickly.

Diagnosing Glass Loading Jams

As you load the glass, if it stops moving, look at the guide rail for clear trash or a sheet that has moved. Next, make sure that the ejector rods are fully extended. Most likely, the air pressure has dropped if they are only partly extended. It is important to make sure that the air pressure is within the range of levels that the control allows. Before you load the cutting table, check the table hinge and its limit switch to make sure it didn't flip to the right angle.

Identifying and Fixing Vacuum Loss

Loss of air is one of the most common issues with tools used to load glass. First, check each suction cup for cracks that you can see. Then, look for kinks or parts that aren't connected in the vacuum lines. An air pressure gauge is used to find out how much air pressure is on the cup face. If the pressure is right at the pump but low at the cup, there is a leak in the line that goes from the pump to the cup. When you change out old cups, only use the original parts. Most of the time, cups from other brands don't fit the cup face's shape.

When to Call a Professional Service Team

An in-house team can't always fix mistakes.

• Persistent sensor errors after recalibration
• Unusual noise from the ejector rod drive mechanism
• Electrical faults that reset but recur within hours
• Any issue involving the Optima software's communication with the machine controller
• Sensor errors that don't go away even after they are recalibrated

Comparative Maintenance Insights: Semi-Automatic vs. Fully Automatic Machines

The planning and buying teams sometimes want to know whether their building would benefit more from a fully automatic or semi automatic glass loading machine. A big part of that answer is whether it needs to be used.

Maintenance Complexity

On fully automatic tools, there are more sensors, motors, and software that need to work together. When there is more technology, more things can go wrong. Because the materials are put on the flipped cutting table by hand at first, there are fewer automated parts to keep up with in a semi-automatic model. Because it's easier, it's easier to figure out what's wrong and faster to fix it.

Total Cost of Ownership Comparison

An all-automatic machine might save money on workers per shift, but it will cost more for service contracts and take longer to get parts for unique parts. For medium-sized fabricators and furniture glass makers who work one to two shifts a day, semi-automatic equipment is usually less expensive to maintain over the course of five years.

Matching Maintenance Strategy to Factory Scale

It might be worth the extra cost of maintenance for an architectural glass plant that makes a lot of glass. Companies that make furniture, bathroom doors, or smaller curtain walls should use Optima software to set up a semi-automatic glass loading system that gets the best layout. This system will give them the most flexibility and the lowest upkeep costs. There is no breaking table in this model, which also means that one whole system doesn't need to be maintained.

Leveraging Maintenance to Maximize Machine Performance and Longevity

Not only do good repair habits keep your machine from breaking down, but they also make it work better and longer.

Building a Preventive Maintenance Program

Use a logbook or a computer system to keep track of all the repairs you make. Note the times, what you found, and any changes. Trends can be seen in this data over time. If, say, an average load means that the suction cups need to be changed every 90 days, you can order new ones ahead of time so that they don't break. It's also easier to train new repair workers without having to teach them everything they already know when the plan is written down.

Operator Training as a Maintenance Tool

A worker who knows how to load the machine, use the three ejector rods, and understand how the flipped cutting table works is more likely to notice issues quickly. Normal patterns of sound and vibration, how to put glass in the right way, and how to read indicator lights should all be taught. A user will know there is a problem before it stops the machine if they notice that the ejector rod is moving more slowly.

Sourcing Genuine Spare Parts

To get replacement parts like suction cups, conveyor belts, sensor units, or pneumatic fittings, you should always buy them from the company that made them or an official wholesaler. If you load off-spec parts, they might fit, but they might not work the same way. When you buy parts from the maker, you know they will work with this machine's ejector rod setup and the largest glass size that it can handle, which is 3660 x 2440 mm.

Conclusion

A semi automatic glass loading machine is easy to keep up if you do things the same way every time. It works best when you clean it every day, check the electricity once a month, and fix any problems right away. When procurement teams know how to maintain semi-automatic and fully-automatic tools in different ways, they can make better decisions. There will be no stopping your glass loading equipment for years if you use original parts, train your staff, and write down a care schedule.

Frequently Asked Questions

1. How often should suction cups be replaced on a glass loading machine?

Suction cups typically need replacement every 60 to 120 days depending on shift volume and glass weight. Inspect them weekly for surface cracks, deformation, or loss of grip. Replace immediately if vacuum pressure drops below the specified threshold.

2. Can I use third-party lubricants on guide rails?

You can use compatible industrial lubricants, but always check the manufacturer's specification first. Avoid petroleum-based products near rubber components. Using manufacturer-recommended lubricants reduces the risk of material incompatibility and premature wear.

3. What does the Optima software do for maintenance scheduling?

Optima is primarily a glass layout optimization tool. While it doesn't manage maintenance schedules directly, its cut plan data can help identify unusual production patterns — such as increased offcuts — that may signal cutting table or ejector rod misalignment.

4. Is it necessary to hire a technician for sensor recalibration?

Minor recalibration using the machine's reference settings can be done in-house with proper training. However, if sensors continue misfiring after recalibration, an authorized technician should inspect the wiring and controller logic.
