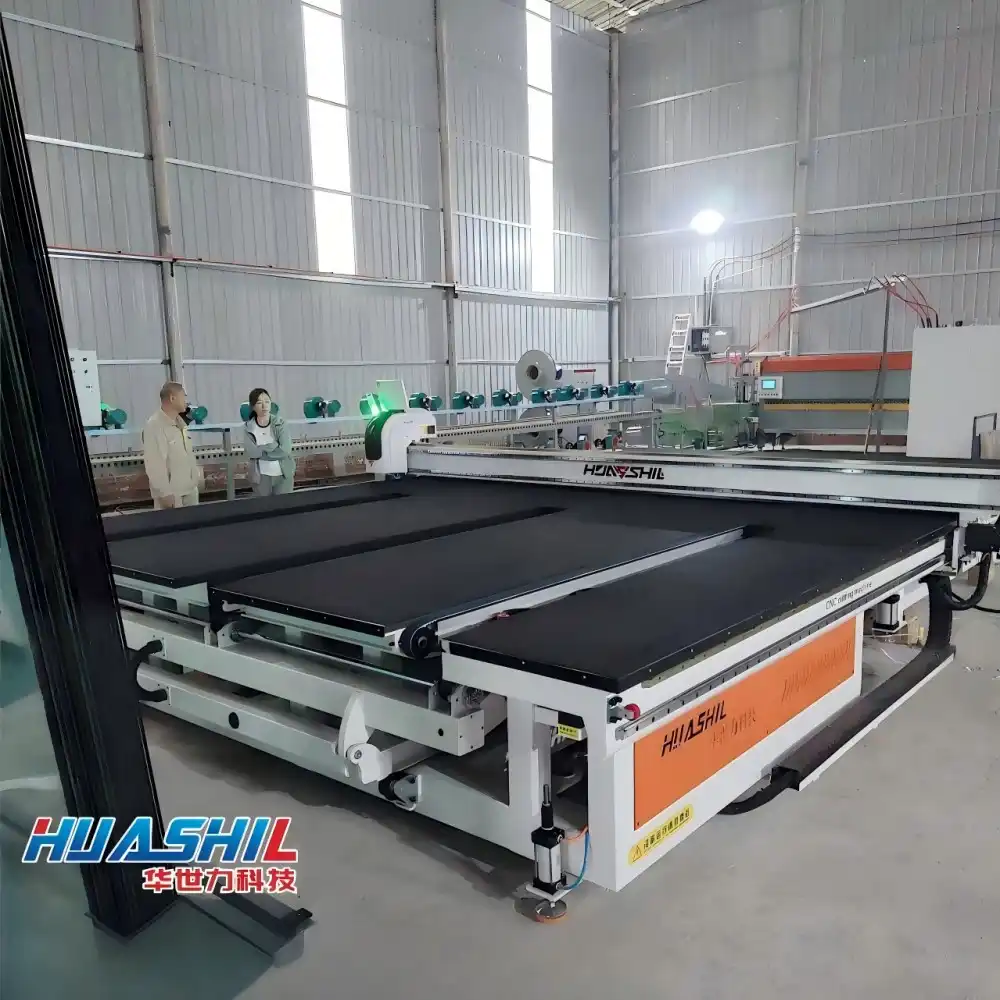

If you are evaluating machinery for a modern glass fabrication line, the automatic CNC glass loading machine sits at the center of the conversation. At its best, this type of equipment eliminates manual sheet handling entirely, replacing it with a precise, programmable loading process that feeds glass into the cutting and breaking sequence without operator intervention at each step. The HSL-LSX4228 from Shandong Huashil Automation Technology Co., Ltd illustrates the standard well: a three-table system integrating a loading table, cutting table, and breaking table, driven by Optima optimization software, with a maximum glass size capacity of 4,200 × 2,800 mm and a configurable 2+2 station layout on above- or under-ground rails. Four grand arms on each side handle sheet positioning with consistent force and accuracy. For fabricators competing on throughput and quality, understanding what these features actually deliver is the starting point for a sound investment decision.
Core Mechanical Features That Drive Performance
The Three-Table System: Loading, Cutting, and Breaking

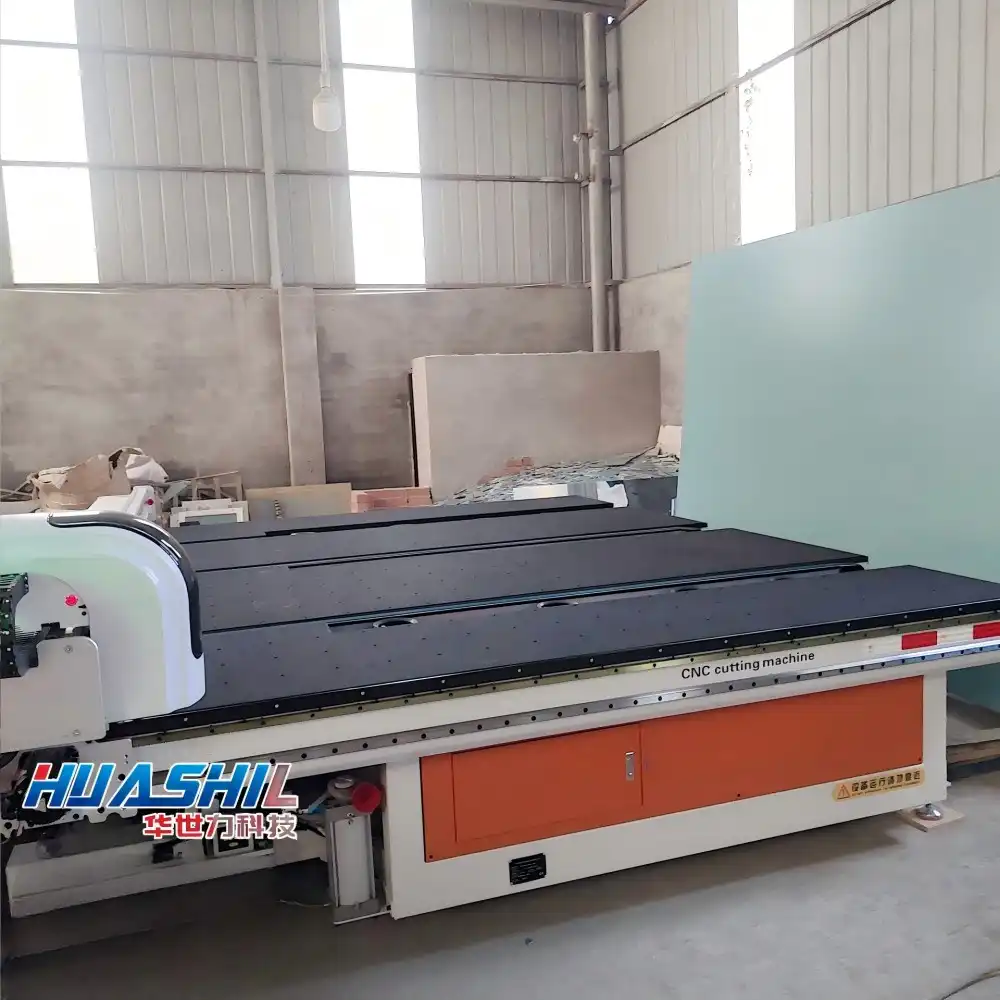

The defining architectural choice in a well-engineered automatic CNC glass loading machine is the integration of three functional tables into a single, continuous workflow. The loading table receives raw glass sheets from storage or an upstream conveyor and positions them precisely for the cutting sequence. The cutting table is where the CNC scoring head operates, executing the programmed cut pattern with the positional accuracy that CNC control makes possible. The breaking table completes the cycle, separating scored pieces cleanly and routing them to downstream processing. In the HSL-LSX4228, these three stages operate as a coordinated system rather than independent stations, which means glass flows through the process without the repositioning and re-alignment steps that add time and introduce error on less integrated machines. For production floors where throughput is measured in square meters per shift, the elimination of inter-station handling is a direct productivity gain. It also reduces the risk of edge chips and surface damage that occur when sheets are manually transferred between separate machines — a quality benefit that compounds over high-volume production runs.
Grand Arms and Station Configuration
One of the most operationally significant features of the HSL-LSX4228 is its four grand arms on each side of the machine, combined with a configurable 2+2 station layout. The grand arms are the mechanical interface between the machine and the glass sheet: they grip, lift, and position each piece with the repeatability that automated production requires. Having four arms per side distributes the load across a broader contact area, which is particularly important when handling large-format sheets up to 4,200 × 2,800 mm, where uneven support can cause flex stress and surface damage. The 2+2 station configuration — adjustable based on production requirements — allows the machine to handle two input and two output positions simultaneously, supporting parallel loading and unloading cycles that keep the cutting table continuously productive. Above- or underground rail options give installation teams flexibility to configure the machine layout around existing floor space and material flow patterns. For fabricators designing or reconfiguring a production line, this adaptability means the automatic CNC glass loading machine can be integrated into diverse facility layouts without compromising the workflow logic it is designed to support.
Maximum Glass Size and Format Flexibility
Format capacity is one of the first specifications buyers check, and with good reason — a machine that cannot handle your largest production formats creates a bottleneck that no amount of automation can compensate for. The HSL-LSX4228 accommodates glass sheets up to 4,200 × 2,800 mm, a specification that covers the majority of architectural, commercial, and residential glazing applications. Equally important is how the machine handles this full-size range without performance degradation at the extremes. Large sheets require precise, vibration-free positioning to achieve the cut-line accuracy that downstream processing depends on, and the grand arm system of the HSL-LSX4228 is engineered to deliver this across the rated size range. For fabricators whose order books include both standard residential formats and oversized architectural panels, the ability to process the full range on a single automatic CNC glass loading machine — without changeover delays or manual interventions for larger pieces — translates directly into scheduling flexibility and higher equipment utilization.
Software and Intelligence: What Optima Brings to the Line
Nesting Optimization and Material Yield
The Optima optimization software integrated into the HSL-LSX4228 addresses one of the most financially significant challenges in glass fabrication: material yield. Every square meter of glass wasted to inefficient nesting or poor cut sequencing is a direct cost that accumulates rapidly at production scale. Optima converts incoming cut lists into yield-maximized nesting plans, arranging parts on each sheet to minimize remnant glass while respecting the geometric and process constraints of the cutting system. In practical terms, fabricators using optimization software of this caliber consistently report yield improvements of 3–7% compared to manual or rule-based nesting, and at typical glass material costs, these gains translate into meaningful annual savings. Beyond material efficiency, Optima sequences jobs to reduce sheet changeover frequency, which keeps the automatic CNC glass loading machine running productively rather than waiting for new stock to be positioned. The combination of material savings and reduced idle time makes the software layer one of the highest-return components of the entire system.
CNC Precision and Programmable Cut Sequences
CNC control transforms the cutting process from an operator-dependent skill into a repeatable, programmable operation. Once a cut program is defined and validated, the HSL-LSX4228 executes it with the same positional accuracy on the thousandth piece as on the first — a consistency that manual scoring cannot approach at production volumes. This matters most in applications where cut-line deviation directly affects downstream fit: insulating glass unit assembly, for example, requires edge straightness and corner squareness tolerances that CNC control reliably delivers and manual processes do not. Programmable sequences also enable rapid job changeovers: switching from one cut pattern to another is a software operation rather than a mechanical reconfiguration, which reduces the downtime between production runs. For fabricators running mixed-format order books — a common reality in both commercial and residential glass supply — this flexibility is a direct competitive advantage. The automatic CNC glass loading machine eliminates the setup time penalty that would otherwise make short runs economically unattractive.
Remote Monitoring and Production Data
Modern automatic CNC glass loading machine platforms increasingly support remote monitoring and production data logging as standard or near-standard features. These capabilities allow production managers to track machine utilization, cycle times, and fault events without being physically present at the machine, supporting both real-time decision-making and longer-term performance analysis. For multi-shift operations, data logging provides an objective record of production output that supports quality traceability and helps identify patterns — such as specific shift or time-of-day performance variations — that would otherwise be invisible. Remote diagnostics capabilities, where available, allow service engineers to assess fault conditions and, in many cases, guide resolution without an on-site visit, reducing downtime duration. As glass fabrication operations grow more data-driven, the ability of an automatic CNC glass loading machine to participate in a connected production environment becomes an increasingly important factor in equipment selection decisions.
Why Fabricators Choose Automated Loading Over Manual Processes
Throughput and Labor Efficiency
The productivity case for automated glass loading is straightforward: an automatic CNC glass loading machine operates at a consistent pace across an entire shift without fatigue, distraction, or variability in positioning accuracy. Manual loading, by contrast, is both slower and inherently inconsistent — experienced operators perform better than new ones, morning performance differs from end-of-shift performance, and individual variation between team members creates quality dispersion that is difficult to manage. By replacing manual sheet handling with a programmable, repeatable loading system, fabricators gain predictable cycle times that support reliable production scheduling, consistent quality outputs that reduce rework rates, and labor reallocation opportunities that improve overall workforce productivity. The HSL-LSX4228's configurable station layout supports this transition without requiring a complete production floor redesign, making it accessible to established fabricators upgrading existing lines as well as new entrants building from scratch.
Safety and Handling Risk Reduction
Large glass sheets are among the more hazardous materials handled in manufacturing environments. Their combination of weight, fragility, and sharp edges creates injury risk during manual handling that automated loading systems directly address. When an automatic CNC glass loading machine takes over sheet positioning and transfer, the frequency and duration of direct human contact with large glass panels decreases substantially, reducing the exposure to the primary injury mechanisms — cuts from edge contact and strain injuries from repeated lifting of heavy sheets. Beyond personnel safety, automated handling also reduces product loss from handling damage. Dropped or mis-positioned sheets in manual operations result in breakage losses that disappear almost entirely when the machine manages positioning. For operations where glass breakage during handling has been a persistent cost, this alone can contribute meaningfully to the financial return on an automated loading investment.
Consistency Across Shifts and Operators
One of the most underappreciated benefits of an automatic CNC glass loading machine is the uniformity it brings to multi-shift operations. In manual or semi-automatic loading environments, quality and output vary by shift, by operator experience level, and by time of day in ways that create downstream problems — variable edge quality, inconsistent cut-line accuracy, and unpredictable yield rates. When loading and positioning are automated, these sources of variation are removed from the process. The machine performs to the same specification on the night shift as on the day shift, and on a Monday morning as on a Friday afternoon. For fabricators supplying customers with tight quality requirements — architectural glazing contractors, automotive suppliers, or premium furniture glass buyers — this consistency is not just operationally convenient; it is a commercial requirement that automated loading makes sustainably achievable.
Conclusion
The features reviewed in this article — integrated three-table workflow, grand arm positioning, Optima software, CNC precision, and broad format capacity — combine to make the automatic CNC glass loading machine one of the most impactful investments available to glass fabricators today. Shandong Huashil Automation Technology Co., Ltd brings years of proven R&D, manufacturing expertise, and global export experience to this product category, offering technically advanced solutions with the stable quality and excellent after-sales service that customers worldwide rely on. The HSL-LSX4228 represents what serious, production-ready automated loading looks like in practice.
FAQ
1. What is the maximum glass size the HSL-LSX4228 can handle?
The HSL-LSX4228 accommodates glass sheets up to 4,200 × 2,800 mm, making it suitable for a wide range of architectural and commercial applications. This large format capacity, combined with the four grand arms per side, ensures stable, accurate positioning even at the upper size limit — a critical requirement when cut-line precision directly affects downstream assembly quality. It is one of the specifications that distinguishes this automatic CNC glass loading machine from mid-range alternatives.
2. Can the station layout be customized for different production floors?
Yes. The HSL-LSX4228 offers a configurable 2+2 station setup that can be adapted based on production volume and floor layout, with both above- and underground rail options available. This flexibility allows the machine to fit into existing facilities without requiring major structural changes, and the station count can be adjusted as production requirements evolve — an important practical advantage for growing fabrication businesses.
3. How does Optima software improve material utilization?
Optima generates yield-maximized nesting plans from incoming cut lists, arranging parts on each glass sheet to minimize waste while respecting cutting constraints. Fabricators typically see material yield improvements of 3–7% compared to manual nesting methods. At production scale, these gains represent significant annual savings on raw material costs and make the software integration one of the highest-return features of the automatic CNC glass loading machine platform.
4. What are the main safety benefits of automated glass loading?
Automated loading substantially reduces direct operator contact with large, heavy glass sheets during positioning and transfer — the primary source of both cut injuries and musculoskeletal strain in manual handling operations. It also eliminates breakage losses from mis-positioning. For production managers responsible for both personnel safety and material cost control, transitioning to an automatic CNC glass loading machine addresses both concerns simultaneously and sustainably.
Upgrade Your Glass Line with the Right Equipment | HUASHIL
Are you looking for a reliable automatic CNC glass loading machine supplier with the technical depth to support your production goals? Shandong Huashil Automation Technology Co., Ltd is ready to be that partner. Our engineering team combines advanced manufacturing capability with genuine application knowledge to help you select, configure, and commission the right solution for your facility — whether you are building a new line or upgrading an existing one. Do not let manual handling bottlenecks limit your throughput or quality. Contact us today to discuss your requirements, request detailed specifications, or arrange a demonstration. Contact us: salescathy@sdhuashil.com.
