A complete automated system that combines several glass processing tasks into a single output unit is known as a "all in one glass cutting machine." The cutting, finding the edge, controlling the pressure, and breaking functions are all done by these high-tech tools in a single, streamlined system. It's made for companies that make a lot of things, and it gets rid of the need for multiple separate machines. This saves a lot of floor space and makes production more efficient. The technology is a big step forward for companies that work with building glass, curtain wall systems, and making furniture that want to update their methods without sacrificing speed or accuracy.

The Problem It Solves in Modern Glass Manufacturing

In the old way of making glass, different tools are used, and the glass is moved by hand between each step. Glass sheets have to be moved from loading tables to cutting stations and then back to breaking tables. This broken process causes a lot of problems that have a direct effect on your bottom line.

When operators have to carefully position each glass sheet and keep an eye on several machines, the cost of their time adds up quickly. In standard setups, breakage rates can hit 5 to 8 percent when people make mistakes while moving materials. When one machine works faster than the others, it creates a production slowdown because it wastes time and capacity.

Not having enough space is another big problem. A normal production line with several different machines needs 200 to 300 square meters of floor space. This makes it hard for manufacturers to grow in urban industrial areas where property prices keep going up.

When different people work on different parts of the production process, quality and stability are lost. During cutting, one technician might use a little bit of different pressure than another, which can be seen in the final product. These differences hurt your image with architects and contractors who want all of your big building projects to have the same results.

By combining tasks, the all in one glass cutting machine solves these basic problems. Transfer harm is eliminated by automating material handling. A workflow that is synchronized gets rid of bottlenecks. Parameters that are managed by a computer make sure that every cut fits perfectly, from the first to the thousandth.

Core Features & Functionality Deep Dive

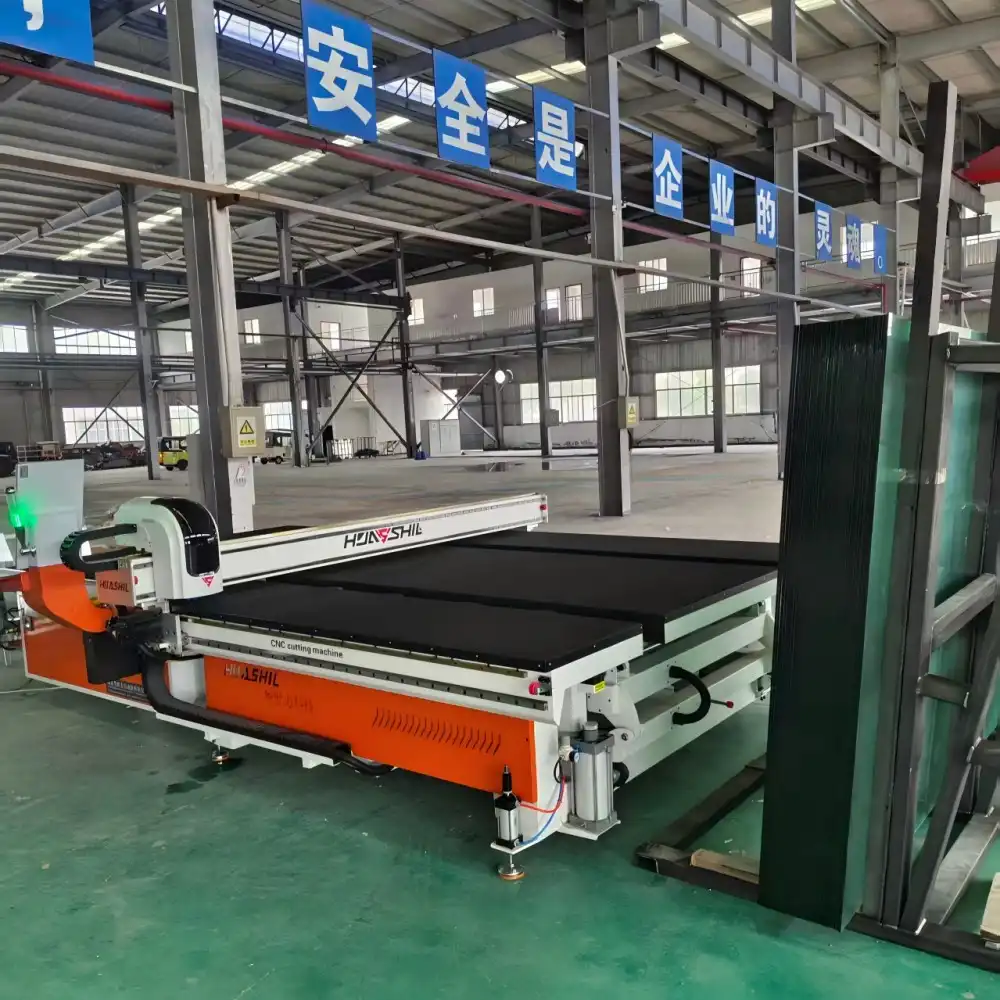

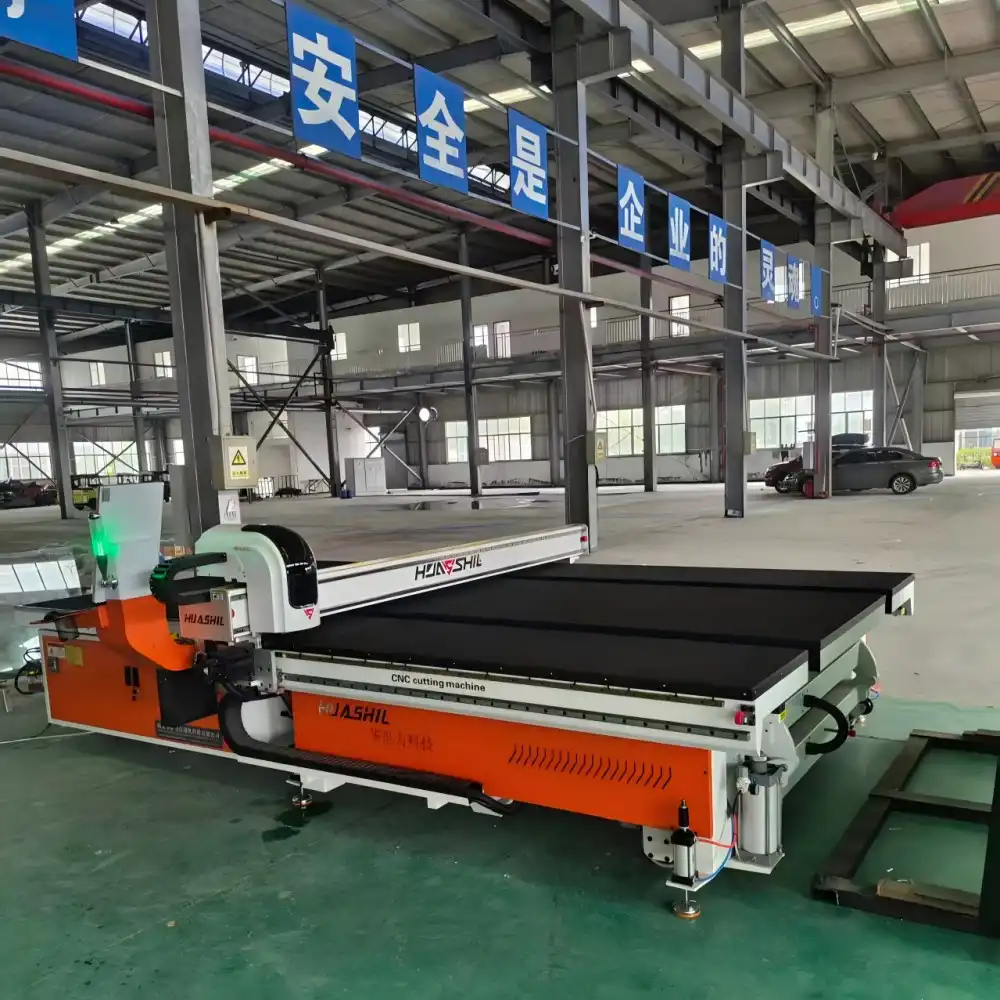

The HSL-YTJ3829 model exemplifies how integrated automation transforms glass processing. This system handles glass sheets up to 3660×2800mm, accommodating the oversized panels increasingly specified in contemporary architecture. The thickness range of 2-19mm covers everything from delicate mirror glass to robust structural glazing.

Automatic loading begins the cycle. Suction cups lift glass from storage racks and position sheets onto the cutting table without human intervention. This robotic precision prevents the micro-scratches and edge chips that commonly occur during manual handling. The system processes up to 120 sheets per shift, tripling output compared to conventional methods.

Automatic pressure control adjusts cutting force based on real-time feedback sensors. When processing 3mm decorative glass, the diamond cutter applies minimal force to prevent stress fractures. Switch to 19mm architectural glass, and the system automatically increases pressure to achieve clean scores. This adaptive intelligence eliminates the trial-and-error adjustments that waste materials during production changeovers.

Edge-finding technology uses laser scanners to map the exact position and orientation of each glass sheet. Even when sheets arrive slightly misaligned on the loading rack, the system compensates automatically, ensuring cuts land precisely where intended. This feature proves invaluable when working with expensive low-iron glass or specialty coatings where material waste directly erodes profit margins.

The air flotation system reduces friction between the glass and the cutting table to near zero. Thousands of tiny air jets create a cushion that allows 200-kilogram glass sheets to glide effortlessly during positioning. This innovation protects surface coatings and eliminates the scratches that plague roller-based systems.

Integrated breaking tables complete the process. After cutting, automated breaking pliers follow the score lines, applying calibrated force to separate pieces cleanly. Operators retrieve finished components directly from the outfeed conveyor, ready for immediate edge processing or packaging.

Synchronous belt conveyors move glass between stations with millimeter accuracy. Unlike chain drives that can jerk or stutter, synchronous belts provide smooth acceleration and deceleration, preventing internal stress that might cause delayed fracturing hours after cutting.

The 360-degree remote control allows operators to manage the entire system from a safe distance. Walking alongside the machine, technicians can fine-tune parameters or pause operations without entering the work envelope, significantly enhancing workplace safety.

Technical Foundation Behind the Performance

Optima optimization software serves as the brain coordinating all functions. This program calculates the most efficient cutting patterns, arranging shapes to minimize waste. When processing a batch of windows in five different sizes, Optima analyzes thousands of layout combinations in seconds, selecting the arrangement that yields the highest material utilization.

The software communicates with servo motors controlling the cutting head, achieving positional accuracy within ±0.1mm. This precision matters tremendously when cutting components for curtain wall systems where panels must align perfectly across multi-story facades.

CNC control systems respond to Optima's instructions in real time, adjusting cutting speed based on glass thickness and type. Thin glass requires faster traverse speeds to prevent heat buildup that can cause edge chipping. Thicker materials need slower, more deliberate cutting to ensure complete scoring through the entire thickness.

CE certification and ISO9001 compliance demonstrate that the all in one glass cutting machine meets rigorous international safety and quality standards. These certifications prove particularly important for North American buyers who must satisfy OSHA requirements and demonstrate due diligence in equipment selection to insurance providers.

Key Advantages for Production Operations

Manufacturers report 40-60% labor cost reductions after implementing all-in-one systems. One operator can supervise the entire machine, whereas conventional setups require three to four workers performing loading, cutting, and breaking tasks separately.

Material utilization improves by 8-15% thanks to optimized nesting algorithms. On an annual glass consumption of $500,000, this optimization saves $40,000-$75,000 in raw materials. These savings often cover the equipment investment within 24-36 months.

Production capacity increases become possible without facility expansion. The compact footprint of integrated machines allows manufacturers to install additional capacity in existing buildings, avoiding the substantial costs of constructing new production space.

Quality consistency strengthens your competitive position when bidding on large commercial projects. General contractors increasingly specify tight tolerances and uniform appearance across thousands of glass units. Automated systems deliver this consistency naturally, whereas manual operations struggle to maintain standards during rush production periods.

Faster changeover between jobs improves scheduling flexibility. Programming a new cutting pattern takes five to ten minutes compared to the 30-45 minutes required to reconfigure separate machines. This agility allows you to accept smaller custom orders that competitors reject as unprofitable.

Potential Limitations & Considerations

Initial capital investment ranges from $80,000 to $150,000, depending on configuration and optional features. This substantial outlay requires careful financial planning and typically involves multiple approval layers within organizations. Production directors must build compelling business cases demonstrating ROI timelines to satisfy finance executives.

The learning curve for Optima software requires dedicated training. Operators accustomed to manual methods need two to three weeks to become proficient with digital optimization tools. Plan for temporary productivity dips during this transition period.

Maintenance demands technical capabilities beyond basic mechanical skills. Servo motors, pneumatic systems, and electronic sensors require troubleshooting knowledge that some facilities lack in-house. Establishing relationships with qualified service technicians becomes essential, particularly for plants in remote locations distant from major industrial centers.

Power requirements may necessitate electrical infrastructure upgrades. Three-phase 380V service with adequate amperage capacity is mandatory. Older facilities built decades ago sometimes need electrical panel upgrades to safely supply the equipment.

Spare parts inventory planning impacts operational continuity. Critical components like diamond cutting wheels, suction cups, and pneumatic valves should be stocked on-site to minimize downtime when replacements become necessary. This inventory represents an additional $5,000-$8,000 investment beyond the machine purchase.

All in One Glass Cutting Machine vs. Traditional Multi-Machine Setups

Comparing integrated systems against conventional equipment reveals significant operational differences. Traditional setups offer lower initial costs, with basic cutting tables starting around $30,000. However, you'll need separate loading equipment ($15,000), breaking tables ($8,000), and additional floor space.

The cumulative investment for comparable capacity approaches $60,000-$70,000 when accounting for all components, narrowing the actual price gap substantially. Traditional systems do provide redundancy – if one machine fails, others continue operating. Conversely, when an integrated system goes down, the entire line stops until repairs are completed.

Integrated machines excel in labor efficiency and quality consistency. Multi-machine setups offer easier incremental expansion, allowing manufacturers to add capacity in smaller financial steps as business grows. Your choice depends largely on current production volumes and growth trajectory.

Curtain wall contractors building full production lines often prefer integrated solutions for their flagship plants while maintaining traditional equipment for smaller regional facilities. This hybrid approach balances efficiency at high-volume locations against operational flexibility at sites handling specialized custom work.

Target Audience & Ideal Use Cases

Architectural glass fabrication plants processing 5,000+ square meters monthly find the strongest ROI. High-volume production amortizes the equipment cost quickly while labor savings compound daily. A plant running two shifts can process enough additional capacity to justify a second line within 18 months.

When using the all in one glass cutting machine, curtain wall system integrators bidding on commercial towers and institutional buildings benefit from the quality consistency that protects their reputation. When your company name appears on a 40-story office building for the next 50 years, precision cutting prevents costly warranty callbacks.

Furniture manufacturers producing glass tabletops, shelving, and display cases appreciate the flexibility to process varied shapes throughout each day. The quick changeover capability supports the product variety demanded by interior designers and homeowners.

Shower door fabricators cutting rectangular panels all day long maximize throughput potential. The repetitive nature of their work allows operators to perfect optimization patterns, achieving material utilization rates exceeding 92%.

Operations planning facility expansions or replacing aging equipment should evaluate integrated systems. The technology delivers maximum return when incorporated during major operational transitions rather than as incremental additions to existing conventional lines.

Conclusion

The all in one glass cutting machine represents the evolution of glass fabrication toward integrated automation. By consolidating multiple operations into a single coordinated system, manufacturers achieve the efficiency, quality, and labor savings necessary to compete in markets demanding both precision and competitive pricing. As architectural designs increasingly feature expansive glass surfaces and building codes tighten quality requirements, automated processing becomes essential rather than optional. The technology continues advancing with improved sensors, faster computing, and enhanced optimization algorithms that will further expand capabilities and returns on investment.

FAQ

Q1: How long does installation and commissioning take?

A: Installation typically requires 5-7 working days, including mechanical setup, electrical connections, and software configuration. Commissioning and operator training add another 3-5 days. Most facilities achieve full production within two weeks of delivery. We provide on-site technicians who work alongside your maintenance team, transferring knowledge to support long-term operational independence.

Q2: Can the system handle coated or laminated glass?

A: Yes, the system processes low-E coatings, reflective films, and laminated safety glass. Automatic pressure control adjusts cutting force to prevent delamination. The air flotation table protects surface coatings from scratching. You should inform us during the specification phase about specialty materials so we can optimize vacuum suction settings for your specific products.

Q3: What ongoing maintenance does the equipment require?

A: Daily maintenance involves cleaning the cutting table and checking diamond wheel condition, taking approximately 15 minutes. Weekly tasks include inspecting pneumatic connections and lubricating linear guides, requiring 30-45 minutes. Monthly preventive maintenance covers servo motor checks and software updates, typically scheduled during production downtime. We provide detailed maintenance schedules and video tutorials supporting your team.

Q4: How does the machine handle irregular or curved shapes?

A: The HSL-YTJ3829 excels at cutting straight lines and geometric shapes but cannot cut curves. Curved glass requires specialized waterjet or CNC grinding equipment. Most architectural applications involve rectangular panels and angled cuts for trapezoid shapes, which the machine handles efficiently. If your production includes significant curved work, we can recommend complementary equipment to complete your processing line.

Why Partner with HUASHIL as Your All in One Glass Cutting Machine Supplier

Shandong Huashil Automation Technology brings decades of specialized manufacturing expertise in glass processing automation. Our engineering teams design equipment specifically for the demanding requirements of architectural glass, curtain wall systems, and furniture fabrication. The HSL-YTJ3829 all in one glass cutting machine demonstrates our commitment to integrating advanced technology with practical production requirements.

We provide comprehensive support throughout the equipment lifecycle. Technical documentation helps your engineers evaluate specifications against production requirements. Commercial proposals clearly outline warranty coverage, spare parts programs, and training services. Contact our team at salescathy@sdhuashil.com to discuss your specific production challenges and receive detailed technical specifications tailored to your application.
