An air flotation table is a precision-engineered device to simplify material handling in glass manufacture and processing. These tables use sophisticated air cushion technology to generate a near-frictionless surface that lets workers handle large glass sheets easily, safeguarding product integrity and improving production. The HSL-SPT3624 model from HUASHIL combines air flotation mechanics with intelligent controls and safety features to meet the operational needs of architectural glass fabricators, curtain wall manufacturers, and furniture manufacturers seeking reliable automation investments.

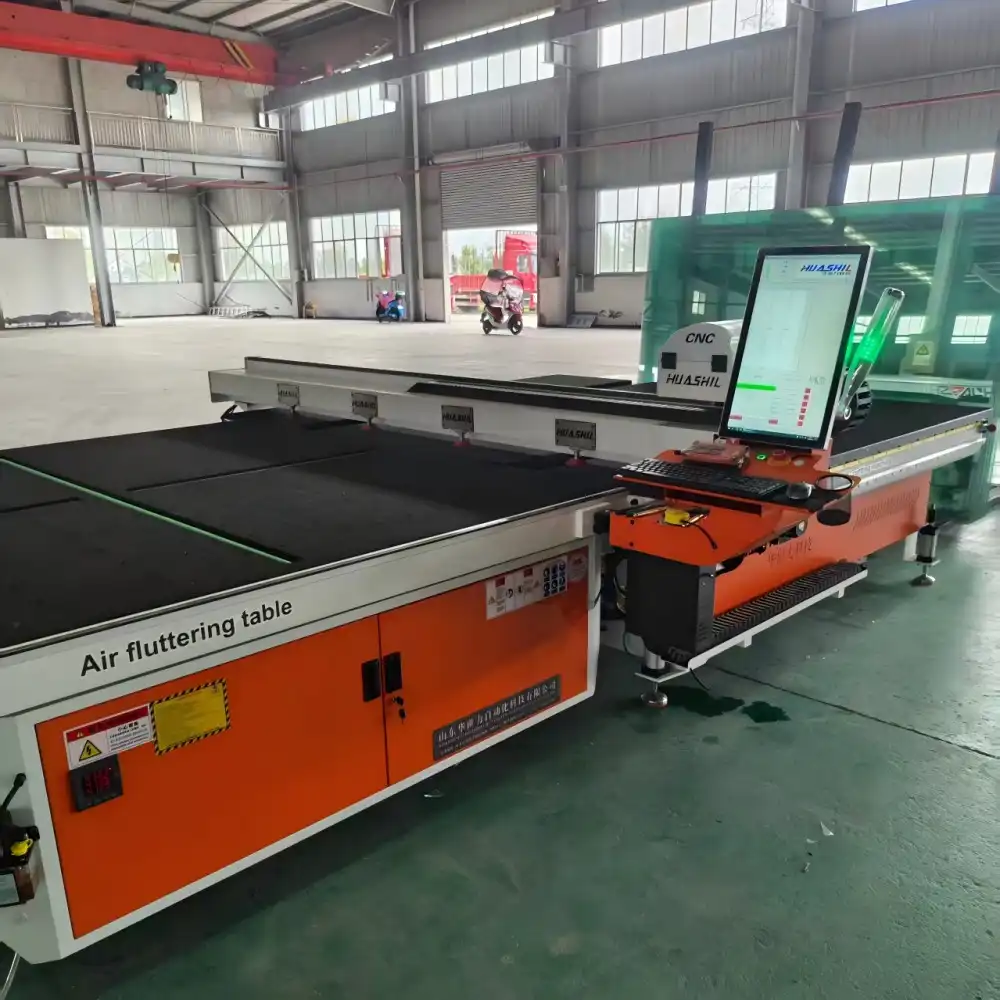

What is an Air Flotation Table and How Does It Work?

Understanding Air Float Loading Systems

Moving huge, delicate sheets is difficult in glass factories. The air flotation table pumps compressed air through strategically placed nozzles across a flat surface. This provides an ultra-thin air cushion that elevates the glass just enough to prevent friction, allowing smooth movement without scratching or harming it.

The technique differs greatly from conveyor conveyance. Air flotation supports the entire glass surface without rollers or belts. This is useful when handling large architectural glass or delicate low-E coated panels where surface contact might degrade quality.

Core Components and Technology Integration

Modern air float tables have coordinated systems. An automated loading system positions glass sheets from upstream operations properly on the flotation surface in the HSL-SPT3624 type. Glass weight and dimensions automatically modify the air distribution network to maintain table pressure.

Breaking tables provide regulated glass separation after scoring in advanced models. The 360-degree remote control walking capability lets operators move the complete system across the manufacturing floor to accommodate changing layouts without human repositioning. This mobility solves a problem for production managers who need variable equipment configurations during line builds and product changes.

Operational Principles That Enhance Production

Precision air pressure management works. Pressure must be sufficient to raise the glass; too much might induce instability. Quality systems continuously adjust pressure to maintain optimal float height regardless of glass thickness.

When glass hits the table, sensors identify its size and existence. Air zones activated by the system provide targeted support. Intelligent zoning avoids air waste and ensures constant performance for 1000×1500mm and 3660×2440mm panels in the HSL-SPT3624.

Core Technical Specifications That Define Performance

Dimensional Capacity and Construction Standards

Understand size constraints when buying equipment. Designed for large-format architectural applications, the HSL-SPT3624 supports glass sheets up to 3660×2440mm. Production directors should match this specification to their regular task orders and choose a capacity that manages 90-95% of the current output without continual modifications.

Durability depends on construction quality in challenging industrial situations. Industrial-grade air flotation tables are corrosion-resistant to cut fluids, glass particles, and temperature changes in fabrication processes. Over years of operation, the frame structure must handle dispersed loads without bending, ensuring surface flatness for equal air dispersion.

Air System Parameters and Automation Features

Specific air pressure affects lifting. Systems operate between 0.4-0.8 MPa and may accommodate varying glass weights. Bubble size—or air cushion thickness in flotation tables—affects stability. Ideal cushion heights are 0.1-0.3mm, allowing smooth movement without excessive float that might cause placement problems.

Modern automation integrates isolated equipment with production assets. Automatic loading sequences synchronized with upstream cutting tables eliminate manual transfer delays in the HSL-SPT3624. Technical managers like systems with diagnostic interfaces that indicate air pressure anomalies, filter health, and cycle counts for predictive maintenance scheduling.

Integration goes beyond machine controls. Multi-processing station plants benefit from equipment that connects via industrial protocols for centralized monitoring. Full production line systems require coordinated cutting, edging, washing, and packing stations to maximize productivity.

Throughput Capacity and Compliance Certifications

In glass processing, hydraulic loading metrics—pieces per hour—depend on glass size, handling sequence complexity, and operator skill. A well-configured air float loading table can handle 120-180 pieces per eight-hour shift for common architectural glass sizes, depending on upstream and downstream process speeds.

Certification assures procurement managers of risk mitigation. CE marking verifies European safety regulatory compliance, whereas ISO 9001 certification verifies quality management system compliance. Certifications are important for overseas equipment acquisitions since regulatory compliance influences customs clearance and responsibility.

HUASHIL's accreditation shows worldwide procurement awareness. These standards can help engineering managers prepare capital approval specifications by verifying equipment quality and safety.

Benefits and Advantages in Glass Fabrication Operations

Understanding how air flotation table technology improves operations justifies capital spending. Production facilities switching from manual handling or simple roller systems to automated air flotation usually see tangible gains.

Enhanced Product Quality Protection: Micro-scratching that degrades the glass look is prevented by eliminating direct surface contact. This matters for coated glass goods, as even little surface damage is noticeable after installation. Surface fault rejection rates drop 40-60% in air flotation facilities.

Labor Efficiency and Safety Improvements: Manually lifting a 3.6-meter glass sheet needs numerous people and poses hazards from awkward lifting positions. Single-operator remote control of air flotation frees up labor for higher-value duties. Automation reduced handling-related injuries by 70–80%, according to safety incident reports.

Operational Flexibility During Product Changeovers: Job shops with various order quantities benefit from 360-degree mobility. Repositioning fixed equipment causes a delay when production transitions from residential window glass to curtain wall panels. Adjusting mobile air float tables takes minutes, not hours.

Reduced Production Cycle Times: Automatic loading sequences reduce manual positioning delays. Manual versus automated loading saves 25-35 seconds per piece in cycle time tests. For daily production levels, this increases throughput without adding floor space or manpower.

The benefits increase the total cost of ownership estimates. Although initial equipment investment exceeds simple handling solutions, medium to high-volume enterprises often see ROI within 18-24 months due to reduced breakage, labor, and throughput.

Selecting the Right Air Float Table for Your Facility

Structured evaluation frameworks that match technological capabilities with operational needs aid procurement decisions. Equipment selection should be analyzed from several angles.

Matching Capacity to Production Demands

Start with reliable production data. Determine glass size distribution from six months of job records—what percentage falls inside certain dimension ranges? With 85% of manufacturing using glass under 2500×2000mm and occasional big orders up to 3600×2400mm, the HSL-SPT3624 offers flexibility without excessive expenses.

Consider growth forecasts. Market changes should be considered when replacing equipment after 8-12 years. If the curtain wall project prospects develop, architectural glass fabricators should seek higher capacity even if existing production doesn't need it.

Evaluating Technical Integration Requirements

Assess the new equipment's system integration. Automatic loading benefits manual cutting table plants less than automated cutting line plants. Automation that generates end-to-end process flow rather than efficiency benefits affects the investment case.

Remote control handles operational scenarios. Facilities with flexible production layouts profit greatly from mobility characteristics, while linear plants may not. Avoid picking sophisticated features that don't alleviate process bottlenecks.

Supplier Reliability and Support Infrastructure

Manufacturing quality and after-sales support affect equipment dependability. Assess supplier skills in many areas:

Tech support response times matter during production disruptions. 24-hour technical hotlines reduce downtime expenses for manufacturers. Remote diagnostics by HUASHIL's skilled engineering staff generally address issues without site visits, difficult troubleshooting requires on-site help.

Spare parts availability impacts maintenance planning. Air valves, pressure sensors, and control modules should be stocked domestically for international purchasers to save weeks on shipping. Procurement managers should obtain written parts availability assurances during contract negotiations.

Warranty periods vary widely by source. Comprehensive manufacturers provide 18-24 months of parts replacement and labor for serious component failures. Warranty details are crucial for high-value automation systems when component replacement might cost thousands.

Comparative Analysis Against Alternative Solutions

The air flotation table technique is unique in material handling. Roller conveyors are cheaper but cause surface contact points that damage high-quality glass. Vacuum lifters are useful for vertical movement but not horizontal transfer. Misapplied technological investments are avoided by knowing when air flotation is best.

The method works best for large-format glass processing where manual handling is impracticable, quality standards restrict surface touch, and production quantities justify automation expenses. Smaller fabricators making normal home sizes may find simpler solutions cheaper.

Maintenance Best Practices for Sustained Performance

Instead of reactive repairs, proactive maintenance extends equipment life and performance. Production managers should design systematic maintenance methods for several categories.

Routine Preventive Maintenance Procedures

Daily inspections save time but avoid serious concerns. Air pressure should be checked at shift start to ensure system pressure matches requirements. Checking the table surface for dirt that might obstruct air nozzles and hearing strange valve noises are fast ways to identify problems.

Weekly maintenance includes compressed air filter examination and replacement when contaminated. Maintaining air quality with clean filters prevents nozzle obstructions and uneven flotation. According to manufacturer standards, moving component lubrication points should be checked weekly for high-use installations.

Monthly procedures involve comprehensive air system checks. Technical personnel should test zone activation to ensure all table portions respond to control inputs. Pressure testing the nozzle array identified clogged openings for cleaning. These regular inspections detect issues before production disruptions.

Troubleshooting Common Operational Issues

Even well-maintained systems sometimes operate differently. Understanding common symptoms and solutions speeds response.

Zone-specific nozzle obstruction causes uneven glass floating. Air passageways can collect dust, dampness, and glass. Minor clogs can be cleared by compressed air blowback, but chronic difficulties need nozzle removal and ultrasonic cleaning.

Air leakage in distribution lines or damaged pressure regulation valve seals may cause insufficient lifting force despite precise pressure settings. From compressor to distribution manifold to zone, pressure testing isolates leaks. Seal replacement is normal maintenance that fixes performance without replacing parts.

Control system faults may impede autoloading. Diagnostic screens indicate problem codes in modern systems like the HSL-SPT3624. Cleaning photo sensors or changing position switches fixes many difficulties caused by sensor misalignment, not component failure.

Partnering with Manufacturers for Long-term Support

Collaboration with equipment providers improves maintenance. Multiple installations give manufacturers technical expertise and troubleshooting experience that individual facilities cannot match.

Beyond emergency service for the air flotation table, manufacturer technicians' annual preventive maintenance visits are crucial. These professionals analyze wear patterns that indicate future problems, enhance performance with operational tweaks, and update control software with the latest advances. Most manufacturer service contracts cost less than a significant unexpected downtime event.

Technical training for plant maintenance workers is another significant manufacturer service. Understanding system design, control logic, and adjustment methods lets in-house teams tackle regular issues without outside help. Customers may enhance equipment uptime with HUASHIL's comprehensive operational and maintenance training.

Conclusion

Air flotation tables have grown from simple material handling aids to complex automation components that improve glass manufacturing productivity and quality. The method solves the problems of moving huge, fragile items while ensuring surface integrity and operator safety. Automated loading, sophisticated controls, and transportable capability make the HSL-SPT3624 suitable for high-volume architectural glass plants and decorative glass fabricators. Equipment should produce demonstrable value rather than unneeded complication, and procurement choices should balance technical specifications against operational needs. Success requires proper equipment selection, regular maintenance, and trusted supplier partnerships to maintain performance over the equipment's lifespan.

FAQ

Q1: How does an air float table differ from traditional roller conveyors?

Multiple points of direct surface contact on roller conveyors can damage glass and need careful alignment. Air flotation raises the glass fully without surface contact, allowing omnidirectional movement without alignment limitations. Air systems are better for coated or high-clarity glass, which needs surface protection.

Q2: What glass thickness range can air flotation systems handle effectively?

The majority of industrial air float tables can hold 3mm to 25mm glass. Thick architectural glass needs more air pressure to lift, whereas thinner glass needs lower pressure to prevent distortion. The HSL-SPT3624 system automatically changes pressure based on glass weight to optimize performance throughout thickness with no operator intervention.

Q3: What factors most significantly affect equipment lifespan?

Compressed air quality, operating environment cleanliness, and maintenance consistency determine lifetime. System reliability exceeds 12-15 years in clean conditions with filtered air and regular maintenance. In contrast, inadequate air filtration and neglected maintenance may necessitate substantial component replacements within 5-7 years.

Partner with HUASHIL for Advanced Glass Handling Solutions

Choosing the proper air flotation table manufacturer turns equipment purchases into long-term collaborations that boost output. HUASHIL has decades of automated experience solving glass processing problems for architectural fabricators, curtain wall integrators, and furniture makers. CE and ISO 9001-certified HSL-SPT3624 technology improves facility efficiency worldwide. Our technical staff offers thorough specifications for engineering evaluation, full TCO studies for financial approval, and customization choices to meet particular manufacturing requirements since procurement decisions include various stakeholders. Our commitment goes beyond equipment delivery with quick technical support, dependable replacement parts, and continuing advice to enhance your material handling procedures. Contact salescathy@sdhuashil.com to discuss your glass handling difficulties and obtain a thorough proposal on how HUASHIL's air flotation table solutions may significantly increase production efficiency, breakage costs, and workplace safety.
