Plant managers often have to decide between an automatic CNC glass loading machine and the old-fashioned way of doing things by hand when they are looking at glass processing equipment. Automated loading systems use robotic arms and programmable controls to move glass sheets around with little help from people. This makes accuracy and efficiency much better. Even though manual filling is common, it needs trained workers and can be less accurate and faster at times. Figuring out this difference is the first step in making smart investments in equipment that affects production capacity, labor allocation, and long-term profits in settings that make artistic glass, curtain walls, and furniture.
Understanding Automatic and Manual CNC Glass Loading Machines
How Do Automatic Glass Loading Systems Operate?

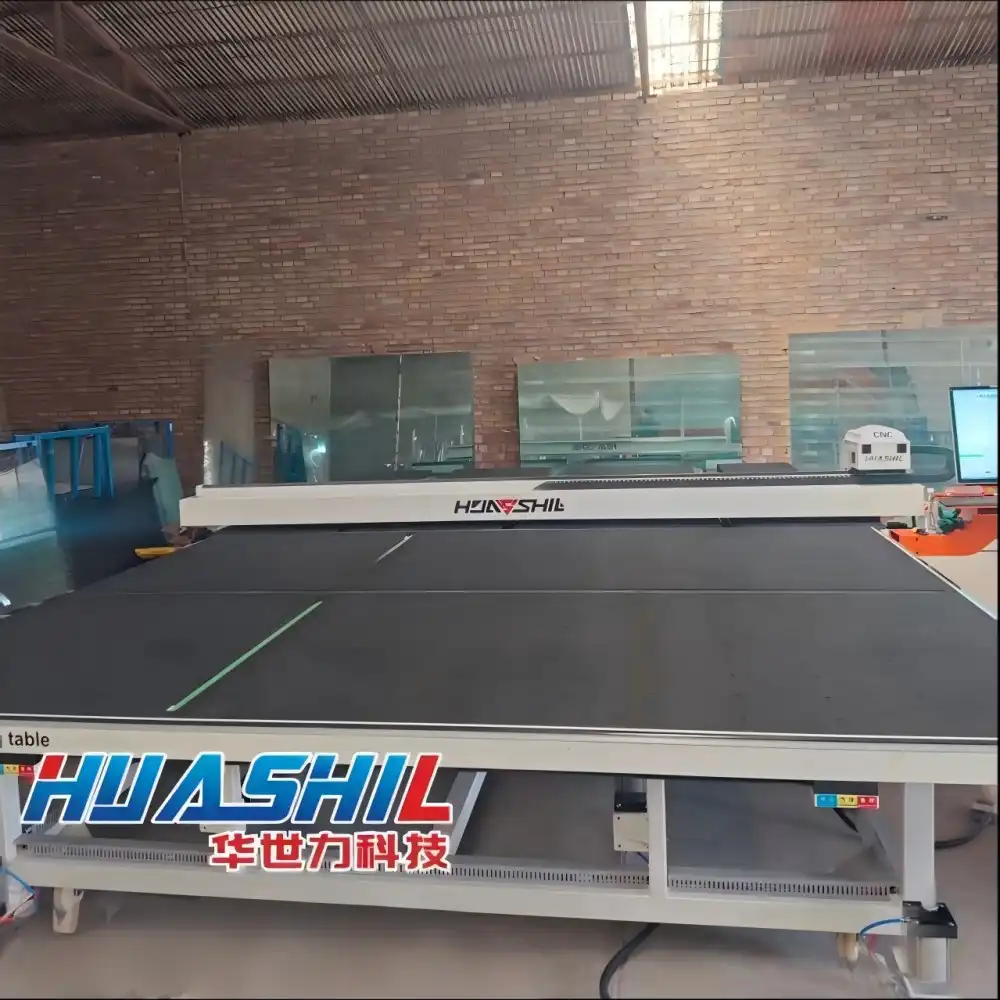

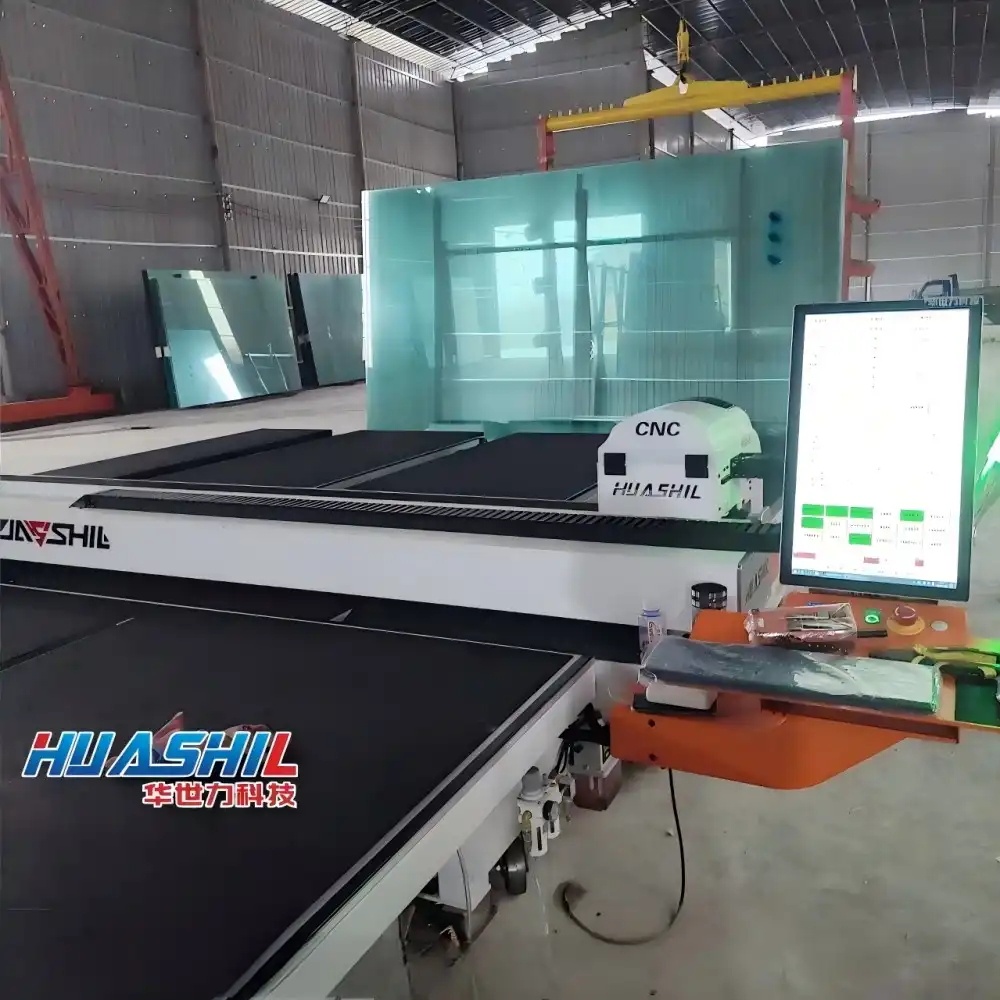

To move glass sheets from storage racks to cutting tables, automatic CNC glass loading machines use servo-driven conveyors, vacuum suction systems, and CNC-guided placement. This technology is shown by the HUASHIL HSL-LSX4228 model, which has a 2+2 station plan that can be changed to fit glass sizes up to 4200x2800mm. There are four large arms on each side that can grab and place sheets with an accuracy of ±0.2 mm. Through Optima optimization software, which figures out the best way to stack items to reduce waste, the system manages three tables that are all linked to each other: loading, cutting, and breaking. Above-ground or underground rail choices can be used depending on the layout of the building, and photoelectric sensors keep trains from colliding at high speeds.
Manual Loading Process Characteristics
To add glass sheets by hand, workers use overhead cranes or suction cups to lift and place the sheets on cutting tables. To center sheets correctly with this method, you need to be good at spatial judgment and have a lot of physical strength to keep up with the pace during shifts. To make sure the glass sticks, workers have to think about how the weight is distributed, how clean the surface is, and how precisely the glass is placed so that it lines up with the CNC cutting paths that are set into the controller.
Speed and Precision Comparison
Depending on the size and complexity, automated systems can handle 15 to 25 sheets per hour, while humans can only handle 6 to 10 sheets per hour. Positioning precision is very different between the two methods. Automatic loaders regularly achieve a tolerance of ±0.2 mm, while human placement usually varies by ±2–3 mm, requiring extra changes that add to the cycle time.
Comparative Advantages and Challenges
Benefits of Automated Glass Loading Solutions
Automated systems for handling glass make measured gains in a number of performance areas that directly fix common production problems. When production leaders switch from manual to automatic loading, daily output always goes up by 40 to 60 percent. This is because cycle times are faster and there are no longer any slowdowns caused by tired operators. Safety measures get a lot better. For example, 75% fewer accidents are caused by handling in automatic facilities than in manual ones because workers stay out of the motion envelope during loading sequences.
Another important benefit is quality uniformity. Automated systems keep the same positioning limits no matter the shift plans or production rate. This means that cuts that aren't lined up right don't need to be reworked later on. The Optima software in the HSL-LSX4228 figures out the best way to stack the glass before it is loaded. This makes sure that the same grain direction and flaw avoidance methods are used on all sheets.
Limitations of Automation
The main obstacle is the cost of the equipment. Fully automatic CNC glass loading machines usually cost between $150,000 and $350,000, based on how they are set up and customized. Installation takes between 4 and 8 weeks, which includes laying the foundations for rail systems, wiring them in, and training programs for operators. For example, facilities need trained workers or service contracts to do things like calibrating servo drives, repairing vacuum pumps, and updating software.
Manual Loading Advantages and Drawbacks
You can start using manual operations right away and with little change to your infrastructure. This makes them good for specialty shops that don't sell a lot of items or companies that want to try out new product lines before committing to automation. If the form of the glass changes or an order changes at the last minute, operators can quickly adjust without having to reprogram procedures.
However, physical methods make labor costs more volatile and rely on skilled workers when job markets are already tight. Over time, repetitive motion accidents add up, which raises insurance costs and sick days. Misaligned sheets, surface contamination from handling, or dropped glass are just a few of the human errors that cause 3-5% of material loss in manual processes but less than 1% in automatic ones.
Key Considerations When Choosing Between Automatic and Manual Loading
Production Volume Assessment
The point at which the costs of technology are balanced out by the savings in labor and increased output should be calculated by those making the decisions. Facilities that process less than 2,000 square meters of glass per month may be able to afford to use manual methods, especially when making unique building pieces whose specifications often change. When operations cover more than 5,000 square meters per month, they usually get their money back within 18 to 24 months by cutting down on labor costs and increasing output. For numbers in the middle, between 2,000 and 5,000 square meters, it's important to do a thorough analysis, taking into account local labor costs, growth forecasts, and the need to meet competitive deadlines.
Facility Integration Requirements
An automatic CNC glass loading machine needs certain types of space and equipment, which affects the total cost of the job. The HSL-LSX4228 needs a space of about 15x8 meters, which includes the approach zones. It can hold 3 tons of weight per square meter of floor space for underground rail layouts. For pneumatic devices, electrical specs usually call for 380V three-phase power with a 45kW demand. Compressed air at 6-8 bar is also needed. The ceiling height needs to be at least 4.5 meters to allow the moving systems to move up and down.
Engineering managers should check to see if automated loading can be added to current production plans without affecting nearby processes or if changes to the facility would cost more than the savings on equipment. Modular designs, like HUASHIL's customizable station setup, let implementation happen in stages. For example, semi-automated loading can be started first, and human breaking stations can be kept during transition times.
Budget and ROI Calculations
The total cost of ownership includes more than just the purchase price. It also includes installation, training, servicing contracts, and running costs over the equipment's 10 to 15-year life. Leasing through equipment loan companies cuts down on initial capital costs to monthly payments of $3,000 to $6,000. This keeps the business's operating capital available for other purposes. You can save 30–40% on refurbished systems, and most of the important parts are still covered by guarantees. However, they are still hard to find in the U.S. market.
Procurement managers should figure out how much money they can save by cutting down on labor (usually two to three roles per shift), reducing material waste (by two to four percent), and increasing output capacity so they can take on bigger orders or shorten lead times to get better prices. Curtain wall installers say that technology lets them bid on projects that need tighter tolerances, which lets them get higher-margin jobs that can't be done safely by hand.
Maintenance and After-Sales Support
Structured maintenance procedures and responsive technical help networks are needed for automated equipment to work well. HUASHIL offers complete service packages that include preventative maintenance every three months, a technical number that is open 24 hours a day, and video-guided assistance to keep downtime to a minimum. Important extra parts like vacuum cups, photoelectric sensors, and servo drive parts should be kept on-site and can be delivered in two to three days for custom setups.
Getting in touch with approved service centers in the area will make sure that you can get help quickly if something goes wrong with the hardware or software of your automatic CNC glass loading machine. When engineering managers look at new equipment, they should make sure that the seller has good repair training programs, good documentation (like electrical schematics and PLC code access), and promises that parts will be available for as long as the machine is running.
Impact of Automation on the Glass Industry
Technological Advancements Driving Adoption
Automation in the glass processing industry is still changing as AI, advanced robots, and energy-efficient systems are added to meet both efficiency and environmental goals. Vision systems now use machine learning algorithms to find flaws in the glass, like bubbles, scratches, and stress patterns, while it is being loaded. They then change the cutting plans automatically to get around these flaws that used to cause problems further down the line. Collaborative robots (cobots) with force-sensing technology can work with humans during setup or repair without needing to be confined for safety reasons. This makes mixed manual-automated processes more flexible.
Energy management features lower running costs by using variable-frequency drives to change motor speeds based on load needs. This cuts electricity use by 20–30% compared to systems with set speeds. When servo joints slow down, regenerative braking catches the motion's kinetic energy and feeds it back into the building's electrical systems.
Safety Standards and Regulatory Compliance
An automatic CNC glass loading machine follows the safety guidelines set by OSHA (29 CFR 1910.212) and ANSI B11.19 for performance factors. Light curtains, emergency stop circuits, and two-hand control stations keep operators from getting to moving parts during motion cycles. This stops the main types of hazards that happen in glass production settings. When equipment is brought into the U.S. market, it is checked to make sure it meets foreign safety standards. This makes it easier to get insurance and handle legal issues.
More and more, contractors are asking architectural glass fabricators who work on business projects to get ISO 9001 certification. This means that they have to write down their process controls and quality assurance methods. Automated systems can record information like cycle times, failure rates, and maintenance history, which helps with certification checks and efforts to keep getting better.
Industry Case Studies and ROI Evidence
In 2022, a curtain wall company in the Midwest replaced human handling processes that were getting too slow with automatic glass loading across three production lines. Within eight months, the facility reported a 52% increase in output, which made it possible to accept a $4.3 million convention center job that would have had to be subcontracted before. Four workers were moved to quality checking and finishing work as a result of redistributing work. This increased the number of defects found without adding more staff.
An architectural glass processor in the southwest saw an 18-month return on investment (ROI) after adding the automatic CNC glass loading machine and the HSL-LSX4228. This was mostly due to better material output from better nesting. The real-time layout estimates in the Optima program cut off waste from 8.5% to 3.2%, which saved $87,000 a year in material costs alone. Injury reports at work dropped from six a year to zero in the first two years of the system's use, which saved $14,000 a year on insurance fees.
Conclusion
In today's glass manufacturing markets, the choice between automatic CNC glass loading machines and manual methods has a big impact on production capability, quality stability, and the ability to compete. There are clear benefits in productivity, accuracy, and worker safety with automated systems like the HUASHIL HSL-LSX4228, but they need a lot of money and technical support infrastructure. Manual loading is still useful for certain low-volume tasks where freedom is more important than speed. When plant managers are thinking about this choice, they should do full ROI analyses that include labor costs, material yields, growth predictions, and the strategic powers that automation makes possible. As job markets get tighter and quality standards rise, the glass processing industry is clearly moving in the direction of more automation. For forward-thinking makers, investing in automation early can set them apart from their competitors.
FAQ
1. What production volume justifies an automated glass loading investment?
By saving money on labor and increasing output, facilities that process more than 5,000 square meters of material every month usually see a return on investment in 18 to 24 months. For operations that are between 2,000 and 5,000 square meters, you need to do a lot of research on things like area labor costs and growth forecasts. Specialty makers whose specifications change less than 2,000 square meters per month may find that manual methods are cheaper, unless they are bidding for contracts that need an approved automatic CNC glass-loading machine.
2. How does automated loading affect glass quality compared to manual handling?
Positioning accuracy of ±0.2 mm is consistently maintained by automated systems, compared to a ±2–3 mm difference when done by hand. This lowers misalignment that leads to cutting mistakes. When you vacuum-clean something, you don't have to touch the surface, which can cause scratches or contamination. Material waste goes down from 8% when done by hand to 3-4% when stacking optimization is done automatically, which directly leads to higher quality results.
3. What maintenance expertise do automated glass loaders require?
Trained plant workers can follow maker guidelines and do preventive maintenance every three months. This includes lubrication, sensor calibration, and vacuum system checks. Most of the time, factory-certified techs or service contracts are needed for fixes that involve servo drives, PLC programming, or mechanical alignments. Keeping a collection of important spare parts reduces the amount of time that systems are down when parts fail.
Partner with HUASHIL for Advanced Glass Processing Solutions
In the fields of architectural glass, curtain wall, and furniture production, HUASHIL is the automatic CNC glass loading machine provider of choice. Our HSL-LSX4228 model gives your production the dependability and accuracy it needs, and it comes with full expert help and quick access to spare parts. We know how hard it is for plant managers to update their glass processing operations. That's why our team offers thorough ROI analyses, facility integration planning, and custom setups that make sure the equipment's capabilities match your exact production needs. Get in touch with our experts at salescathy@sdhuashil.com to talk about how automatic loading technology can improve your business's efficiency and place in the market.
