Selecting the right door glass cutting machine transforms production efficiency and product quality in glass fabrication facilities. Modern automated systems deliver precision cuts on panels up to 3660×2440mm, handle glass thickness from 2mm to 19mm, and integrate optimization software that reduces material waste while maximizing throughput. Understanding the technical specifications, automation features, and total cost of ownership helps plant managers and engineering teams make confident purchasing decisions that align with operational goals and budget constraints.
Understanding Door Glass Cutting Machines: Technology & Types
Modern technology for cutting glass has come a long way, and now fabricators can choose from a wide range of options, from manual cutters to fully automated CNC systems. The basic idea stays the same: a cutter with a diamond tip scores the surface of the glass, making a controlled fracture line. What makes these systems very different is how they provide accuracy, speed, and working efficiency.
Manual vs. Automated Cutting Systems
To use manual cutting equipment, skilled people must place the glass panels, move the cutting tools, and keep an eye on the quality of the work throughout the process. The costs of the initial investment stay low, but the costs of work add up quickly. With electric systems, automatic cutting heads that follow pre-programmed tracks make mistakes less likely to happen. CNC machines are the standard in the industry right now. They use computer-controlled positioning systems to make complex cuts with repeatability measured in hundredths of millimeters. These high-tech systems have edge-finding algorithms, pressure control sensors, and automatic filling devices that make each cut cycle better.
Specialized Machines for Different Glass Types
Making glass for architecture needs different skills than making glass for cars or decorations. When cutting tempered glass, the temperature needs to be carefully controlled. For sensor housings and display integration, the production of smart mirrors needs to be able to handle complex shapes. The HSL-YTJ3826 model is flexible because it can handle a wide range of thicknesses (2–19mm) and big formats (3660 x 2440 mm). It can be used for curtain wall panels, furniture parts, and custom door installs. Its Optima optimization software figures out the best nesting patterns, which cuts down on scrap by 8–12% compared to planning the layout by hand.
Recent Technological Advancements
The way glass is cut has changed a lot since digital controls were added. Air flotation systems now reduce the amount of surface contact that happens when materials are moved. This lowers the number of tiny scratches that weaken structures. Panels are moved easily from one processing station to the next by synchronous belt conveyors. Remote control lets operators run several machines from a central workstation, which makes it easier to coordinate work in places with a lot of people. These new ideas directly address the worries about rising labor costs and the need for consistent quality that lead production directors and plant managers to decide to improve their equipment.
Key Criteria for Choosing the Right Door Glass Cutting Machine
A structured evaluation framework that balances operational needs with technical requirements and cost factors is helpful for procurement teams.
Production Volume and Glass Complexity Requirements
Whether a building needs single-station tools or integrated production lines depends on how much work it needs to do each day. Small manufacturers who make 20 to 30 panels a day might be able to get by with semi-automated systems. Large architectural glass plants that make more than 200 units need technology that can feed glass continuously with little time for switching. It doesn't matter how complicated the glass is—rectangular cuts require less complex code than curved sides or complicated cutouts for hardware installations. Advanced models have a breaking table that speeds up the splitting process and cuts the cycle time by 30 to 40 seconds per panel.
Critical Performance Metrics
Cutting accuracy on a door glass cutting machine has a direct effect on the quality of the edge and the efficiency of processing that comes after. Systems that keep a range of ±0.2mm across the whole screen size avoid having to do expensive repairs. It's important for speed capabilities to find a balance between throughput goals and quality standards. For example, rushing cuts with bad pressure control makes edges more likely to chip. When testing for durability, you should look at how the frame is built, the bearing specs, and the motion control parts. Machines that are approved to meet CE safety standards and ISO 9001 quality management practices show that the company is dedicated to making reliable engineering. The automatic pressure control feature changes the cutting force based on the thickness of the glass. This keeps the score depth constant and extends the life of the tool.
Total Cost of Ownership Analysis
The purchase price is only one part of an investment's long-term value. Installation costs, operator training needs, maintenance schedules, and costs for consumables add up to a lot of money. Electric methods use 30 to 40 percent less energy than hydraulic ones. With automation, one supervisor is in charge of several units instead of two operators for each machine. Warranty periods of one to three years change how much it costs to fix things. Uptime percentages are directly affected by the quality of after-sales support, which can be judged by reaction time, availability of spare parts, and ease of access to expert help. When comparing equipment offers, procurement managers should ask for thorough TCO estimates for five years of use.
Supplier Reliability and After-Sales Support
Manufacturers that have been around for a long time and have a lot of experience in their field usually have better support systems than newer companies. The terms of the warranty should list the parts that are covered, how long you have to respond, and how the service will be delivered. HUASHIL is dedicated to providing excellent after-sales service, which includes expert advice, help with installation, and ongoing operating support. This is because the company has years of experience producing and exporting goods. When evaluating a supplier, you should find out if they can provide real replacement parts, software changes, and emergency help during busy production times. References from current customers in similar production industries can tell you a lot about how well equipment works in the real world and how quick a maker is.
Maintaining and Operating Your Door Glass Cutting Machine for Optimal Performance
Structured repair procedures make equipment last longer while keeping it safe to use and cutting accurately. These actions directly protect the large amount of money that automated glass cutting systems cost.
Daily to Monthly Maintenance Checklists
Cleaning cutting tools, checking the tightness of moving belts, and checking air flotation pressure levels should all be part of daily tasks. Linear guides need to be oiled, synchronous belt alignment needs to be checked once a week, and emergency stop functions need to be tested. For monthly maintenance, all electrical connections must be checked thoroughly, the setting of pressure control sensors must be confirmed, and the state of the cutting wheels must be checked. The automatic edge-finding system needs to be recalibrated every so often to keep its accuracy as the mechanical parts wear out. Keeping records of all maintenance tasks makes people responsible and helps find problems that keep happening before they cause unplanned downtime.
Safety Protocols and Operator Protection
Working with glass comes with a lot of risks that must be strictly followed for safety reasons. Operators must wear safety glasses with side shields, gloves that won't cut, and shoes with steel toes. Machine guards should keep people from getting to moving parts while the machine is running. The 360-degree walking feature on the remote control lets operators stay away from cutting zones while keeping an eye on the process. Every week, emergency stop buttons must be checked and placed so that all operator stations can easily reach them. Proper air systems get rid of the fine glass particles that are made when glass is cut and broken, which is good for your lung health.
Troubleshooting Common Performance Issues
Cutting quality that isn't consistent is often caused by worn-out cutting wheels, wrong pressure settings, or dirty scoring surfaces. Operators should keep spare wheels on hand and replace them at the times recommended by the manufacturer. Positioning mistakes are caused by belts that don't track properly; tension adjustment methods fix this problem in minutes. Software bugs can sometimes make it hard for control systems and motion components to talk to each other. Most temporary problems can be fixed by restarting the sequences. When automatic loading systems fail to place panels correctly, cleaning the sensing lenses and checking the calibration of the sensors usually fix the problem. Keeping detailed troubleshooting logs helps technical teams find patterns and put in place solutions that stop problems before they happen.
Comparing Top Door Glass Cutting Machines
There have been big improvements in the level of automation, energy efficiency, and user interface design in the door glass cutting machine products that are currently on the market. Knowing about these improvements helps people make decisions about what tools to use in different working situations.
Leading Models and Key Innovations

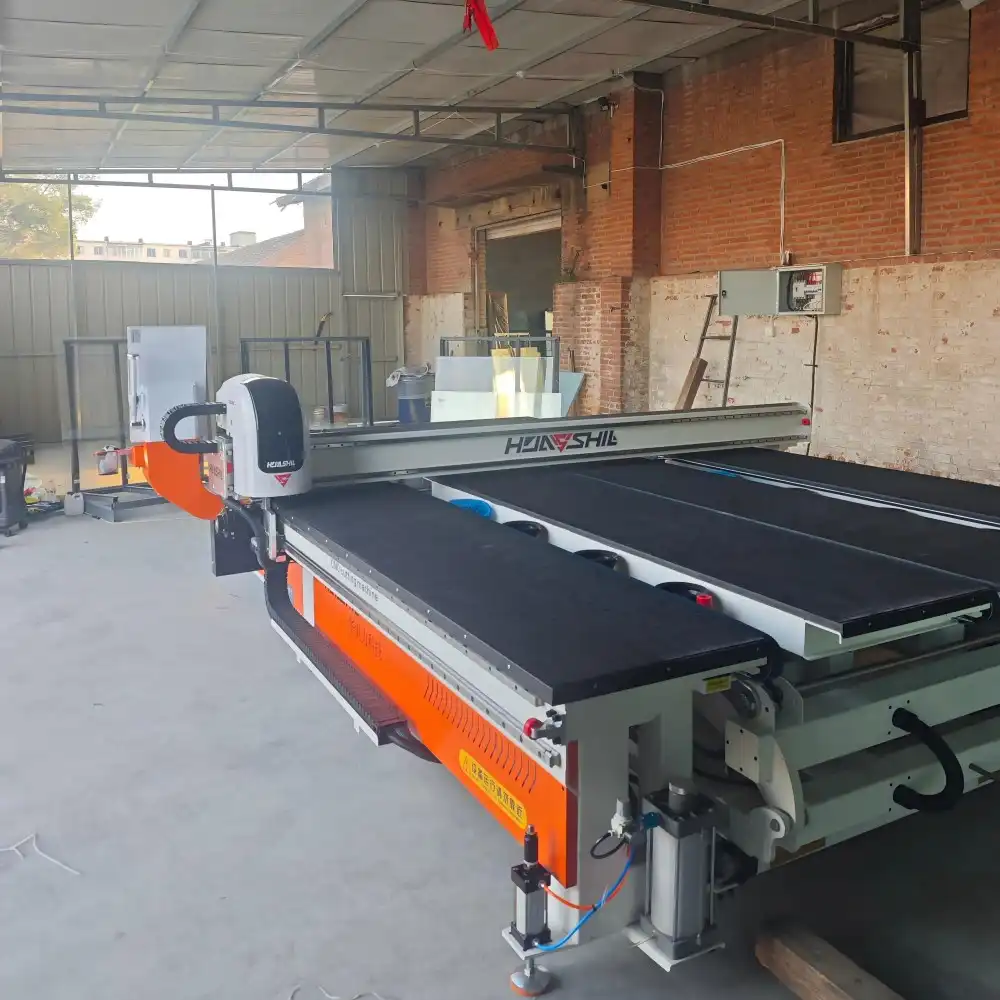

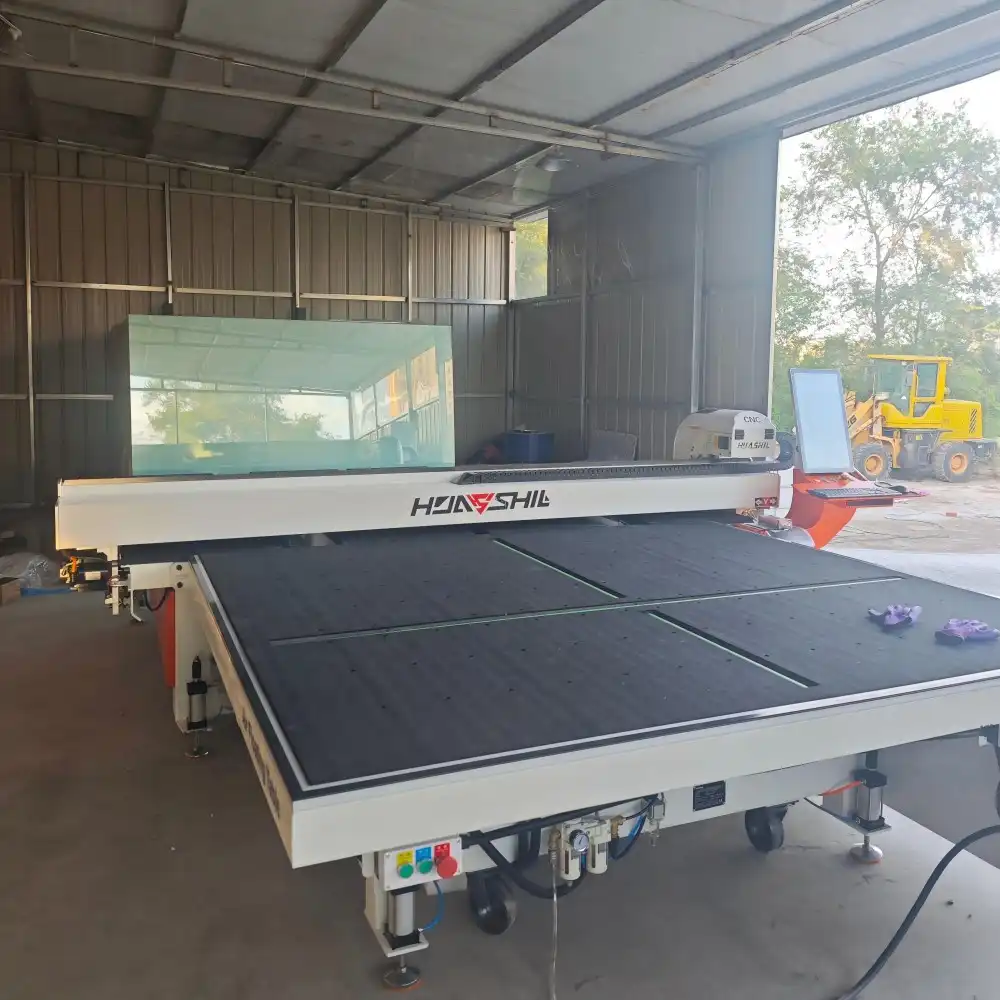

The HSL-YTJ3826 is the most advanced machine in its class. It has a large cutting area (3660mm x 2440mm) and can handle thicknesses from 2mm to 19mm. Its clever nesting methods that make the best use of materials set its Optima software integration apart from competitors. The air flotation system keeps the surface from getting damaged while it is being handled, which is very important when working with expensive architectural glass. Automatic loading cuts down on the amount of work that needs to be done by hand, and the built-in breaking table speeds up the separation process. These features work together to meet the needs for consistency and speed that production leaders and engineering managers stress.
Budget-Friendly Options Under $5000
Entry-level systems may work for smaller makers and specialty producers who only need to make a small amount of goods. Most of the time, these machines have semi-automatic cutting paths, manual loading, and fewer automated features. Although their cutting accuracy may only reach ±0.5mm instead of the ±0.2mm that expensive systems can achieve, they are good enough for certain uses. Some of the trade-offs are longer processing times, more skilled operators, and less software efficiency. Most warranties only cover 12 months, while industrial-grade equipment warranties cover 24 to 36 months. If your business is new or focuses on custom work rather than mass production, these systems are a good fit.
Customer Ratings and Warranty Comparisons
Real-world comments from architectural glass plants and curtain wall makers are very helpful because it goes beyond technical specs. Users always stress that the quality of after-sales support is just as important as the performance of the machine itself. When a piece of equipment gets 4.5 stars or more, it usually works reliably in a variety of production settings, has little unexpected downtime, and responds quickly to maker assistance. When comparing warranties, it's important to look at both how long they last and what they cover. For example, some makers don't cover worn parts or software problems. Even tho extended warranty options cost more up front, they often pay for themselves in the long run for facilities with multiple shifts where broken equipment directly affects customer relationships and delivery promises.
Procurement Considerations: Buying, Shipping & After-Sales Support
Strategic choices about what to buy include more than just choosing the right tools. They also include transportation planning, installation planning, and building an ongoing infrastructure for practical support.
Trusted Purchasing Channels for B2B Procurement
Most of the time, industrial wholesalers, direct maker sales teams, or well-established B2B platforms move glass fabrication equipment. When you work directly with manufacturers like HUASHIL, you can often get better customization options, technical advice, and price flexibility for different production line configurations. Trade shows give people the chance to see live examples, compare different systems, and talk about products in person. Buyers can find possible systems before committing to more in-depth technical reviews by doing online research on company websites and industry platforms. Managers in charge of buying things should ask for thorough quotes that include information about the equipment's configuration, shipping terms, installation services, training requirements, and guarantee coverage.
Installation Services and Spare Parts Sourcing
Professional installation makes sure that the machine works at its best from the start. Technicians who are qualified check electrical connections, set up control systems, and use customer materials to do test runs. For single tools, this process usually takes two to three days. For linked production lines, it takes longer. Operators learn how to run daily operations, do regular upkeep, and fix basic problems through training programs. Setting up an inventory of spare parts before putting the equipment into service keeps downtime from being too long when a part fails. Cutting wheels, belt systems, pressure monitors, and backup control boards are all important parts. HUASHIL helps international customers by keeping spare parts in stock and providing clear documentation.
Shipping Logistics and International Delivery
The HSL-YTJ3826's 5550×4925mm size means it needs to be carefully planned for shipping. Glass cutting machines are big pieces of freight. For overseas orders, shipping is usually done by ocean freight, which takes 4 to 8 weeks, based on where the package is going. Sensitive parts are kept safe during shipping with proper crating. To make the clearance process easier, customs paperwork needs to correctly label the type of equipment, list the country where it came from, and include full technical specs. Letter of Credit payment terms protect both buyers and sellers when they do business across borders. It's important for procurement teams to make sure that the prices they're given include delivery to the factory floor or just the port of entry, since the last mile of delivery and unloading equipment adds a lot of cost. Working with suppliers who are experienced in international logistics cuts down on problems and makes sure that the project can be started on time.
Conclusion
Buying the right door glass cutting machine tools has a direct effect on how much can be produced, how well the products are made, and how profitable the business is. Modern automatic systems have measured benefits thanks to careful building, smart software optimization, and less work that needs to be done. For buying to go well, technical skills, total cost of ownership, and source stability must all be carefully considered. The HSL-YTJ3826 meets the latest standards in its field thanks to its many automation features, ability to print on big formats, and proven CE and ISO 9001 certifications. Glass fabricators can get better results by working with well-known manufacturers that offer strong after-sales support, easy access to spare parts, and quick technical help throughout the lifecycle of their equipment.
Frequently Asked Questions
1. What safety features should be prioritized when selecting cutting equipment?
Important safety features include emergency stop buttons that can be reached from any operator position, machine guarding that keeps people from touching moving parts, and functions that turn the machine off automatically when safety interlocks are not engaged. When something has CE certification, it means that it meets European safety standards that are used all over the world. With extra features like remote control operation, operators can stay at a safe distance during cutting cycles, which lowers the risk of getting hurt when the glass breaks or the machine stops working.
2. How often should maintenance be performed on automated glass cutting systems?
Cleaning and visual checks that take 15-20 minutes each day are part of upkeep. Checking the belt tightness and greasing once a week takes about an hour. Every month, full reviews take three to four hours to fully check all electrical systems, make sure they are calibrated, and check for wear on parts. Servicing by trained experts once a year guarantees optimal performance and finds possible problems before they cause problems that stop operations. When compared to reactive maintenance methods, following the manufacturer's recommended maintenance schedules usually makes equipment last 30 to 40 percent longer.
3. Can these machines accommodate different glass types used across multiple fabrication sectors?
Quality automatic cutting systems can be used for many things, like building panels, car parts, furniture, glass, and decorative pieces. The flexibility of equipment is based on its thickness range. Processing equipment for 2–19 mm can meet most business needs. Software that is flexible lets you create complicated forms for smart mirrors, furniture with complicated designs, and doors that are set up in any way you want. Advanced models have an air flotation handling system and automatic pressure control that can adjust to different types of glass. This makes sure that the results are the same no matter what the production needs are.
Partner with HUASHIL for Your Glass Cutting Machine Needs
HUASHIL offers tried-and-true automation solutions backed by years of experience making things and exporting them around the world. Our HSL-YTJ3826 model combines cutting-edge technology with useful features that help architectural glass fabricators, curtain wall manufacturers, and furniture manufacturers solve real production problems. The CE and ISO 9001 marks on the machine show that we are dedicated to safety and quality standards. We offer full support, including help with installation, training for operators, and ongoing expert support. As a company that has been making door glass cutting machines for a long time, we know how important it is to have reliable equipment and quick service in order to keep up with production schedules and keep customer promises. Email our team at salescathy@sdhuashil.com to talk about your particular needs and ask for full technical details.
