A glass transport table line is a connected set of tables, rollers, belts, sensors, and controls that moves flat glass between loading, positioning, edging, washing, inspection, and storage stations. It replaces manual lifting, which lowers scratch risk and keeps each panel square before it reaches the next machine. I wrote this guide for plant managers, engineers, and buyers in the United States who want to understand how the system works, what to check before buying, and where our HSL-LSX4228 fits.

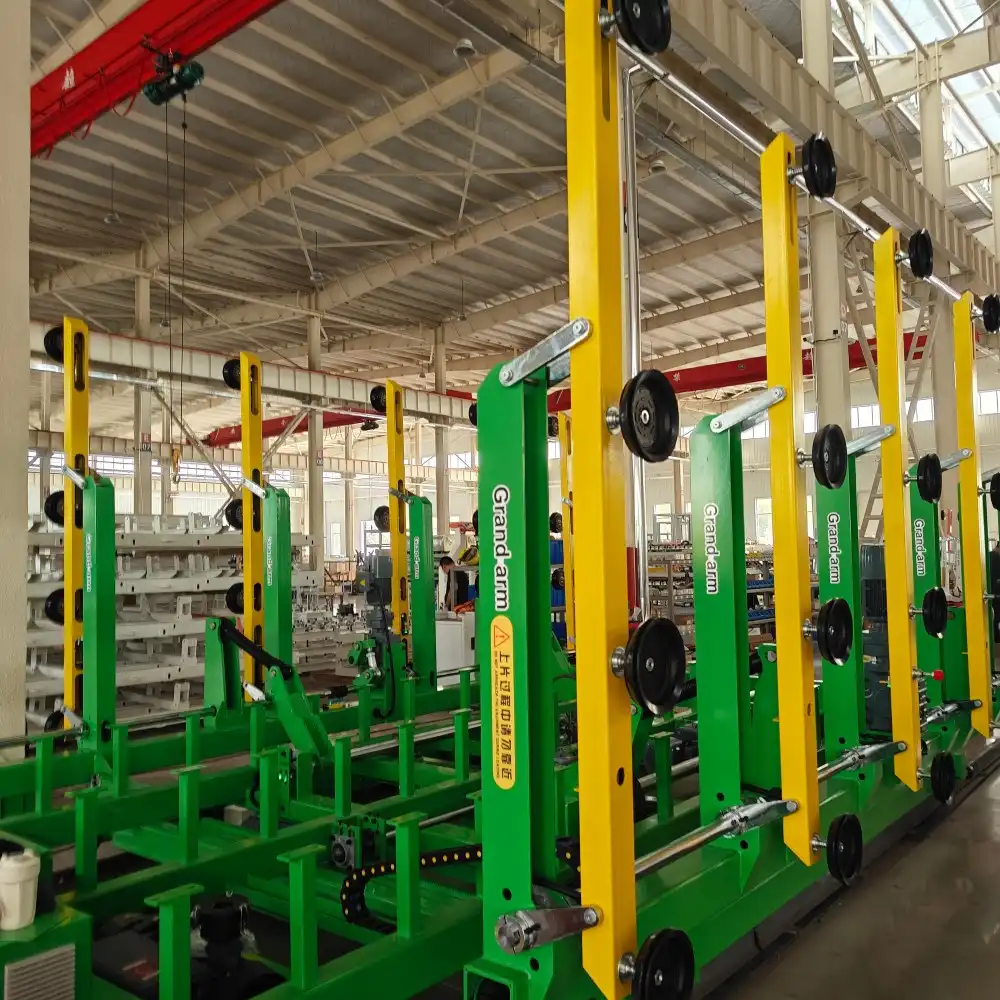

What Is a Glass Transport Table Line for Edging and Processing?
Definition and Role in the Workflow
Flat glass is moved through a plant by a glass transport table line, so no one has to lift it by hand. Every panel is moved from loading to placing, cutting, washing, inspecting, and storing by tables, rollers, belts, and sensors. The line can also connect a cutting line to a machine for edges, a machine for insulating glass, equipment for laminating, or a furnace for tempering. Many buyers look at cutting tools first and then think about how they will be used. That order slows things down because a fast edger still has to wait for panels that are late or crooked. Everything else moves to the beat of the handling system.
How It Differs From a Basic Conveyor
The only thing a simple conveyor can do is move things from A to B. There are aligning, lifting, transfer, sensors, and links to machine controls that come with a glass transport table line. You need these functions because glass edges break easily and coated surfaces scratch when you touch them without being careful. At the grinding stage, less work needs to be redone because the centering units make sure that each panel is sent to the edging machine in the same position every time. People who run a plain conveyor do that job. The extra features help keep rejected panels to a minimum in plants that use panels of different sizes.
Glass Types and Sizes It Must Handle
The glass itself is the first thing that you should choose. It depends on the thickness, panel size, weight, coatings, and how sensitive the surface is. Soda-lime glass has a mass of about 2,500 kg per cubic meter, which makes it easy to guess how much something weighs. At 6 mm, a 4200 x 2800 mm panel (about 165 x 110 inches) weighs about 176 kg, which is 390 lb. It's about 10 mm thick and weighs about 294 kg (650 lb). It tells you how strong the frame, drives, and supports need to be. ASTM C1036 tells you what kinds of flat glass you will probably work with, and coated glass needs surfaces that are soft to the touch.
Glass Transport Table Structure and Main Components
Frame and Contact Surfaces
As each panel rests on top of the frame, it needs to stay level and rigid under heavy loads. If the frame sags even a little, it changes how the glass fits against the rollers, which makes the travel uneven. It doesn't matter what the contact surface is. Covers made of rubber or polyurethane on rollers and belts keep coated and polished glass from getting scratched or slipping. Regular checks by plant teams should be made to these areas because worn covers leave marks that can't be seen before they are edged.
Drive, Sensors, and Controls
Motors and gearboxes move things, and frequency converters let people change the speed of the transport. A PLC controls the tables so that the panels move in sync with the machine that edges them, rather than running into each other or having to wait. Sensors check to see if a panel is there and where it is placed. This sends a signal to the next step. When engineers look at a quote, I tell them to ask which brands provide the drives and controllers, since that affects how easily they can get spare parts. Making clear records about electrical work also helps repair staff find problems quickly.
Positioning, Lifting, and Transfer Devices
Before edging or inspection, side guides and centering units make sure that each panel is in a known place. Moving parts move the glass to a new track, and lifting parts raise it to cross a gap or change direction. People who buy things may also ask for vacuum lifts, air cushion support, or custom connections for OEM machines and workplace automation systems, depending on the job. Support with air cushions is good for sensitive surfaces because it keeps them from touching. Each choice adds a fee, so choose the option that fits the glass you run most often instead of the hard-to-find one.
How Does a Glass Transport Table Line Work?

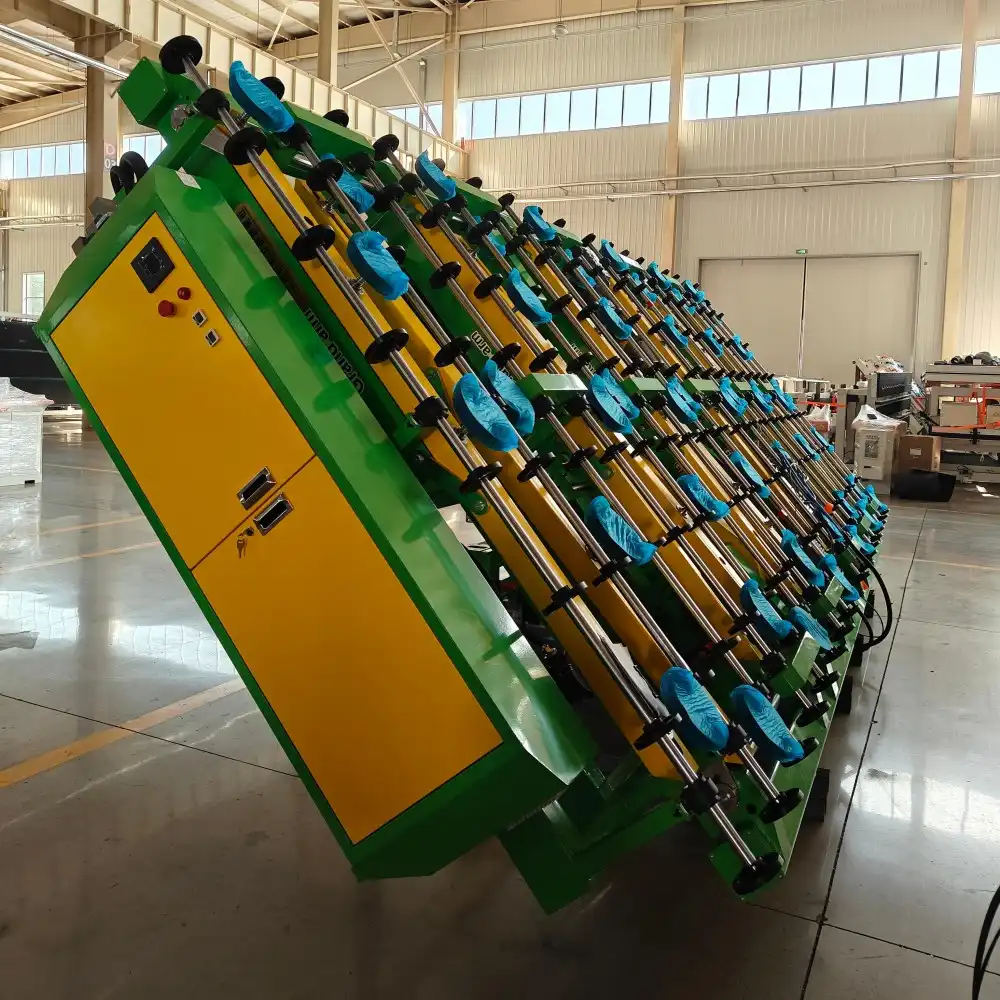

Loading and Presence Detection
It all starts when glass comes in from an A-frame, a cutting table, a rack, or a loading station. It can be loaded by hand or automatically. Then, sensors check to see if the panel is there and in the right place. After that signal, the rollers, belts, or surfaces that are held up by air begin to move. This check makes sure that the line doesn't get empty or glass gets into a machine that isn't ready. Also, operators get a clear signal at every stage, which makes it faster to figure out what's wrong when a panel stops working for no reason.
Transport and Alignment
The glass transport table line can move in steps that match each edging and processing cycle, or it can run all the time. Indexed movement is better when machine cycles change, while continuous motion works best for steady volume. Alignment devices put the glass in the middle and control its position, squareness, and how well it stops. Because an edging wheel removes material along a fixed path, a panel that isn't square will have edges that aren't even. So, good alignment protects both the quality of the edges and the size of the finished product. Ask providers how the line gets to the point where it can stop accurately, and ask for test results for the sizes of glass you use.
Transfer After Edging and Operating Modes
After being edged, the panel is washed, inspected, tempered, used to make insulating glass, or put away. Different work plans and quantities can be handled by manual, semi-automatic, and fully automatic modes. A small shower door shop might like a system that works partly automatically and has a worker at each station. To cut down on work hours, a bigger design plant might want to fully automate everything. A lot of buyers start with one mode and plan the layout so that they can add automation any time later. Talk about that growth path early on, since it's harder to change things like floor space and electricity once they are installed.
Applications of Glass Transport Table Lines in Glass Processing
Edging, Grinding, Cutting, and Breaking
Glass transport table lines can be used for trimming, grinding, cutting, breaking, washing, and checking. When cutting, the line moves a sheet from the stack to the cutting table and then to the breaking table, where it is scored and broken into pieces. These pieces are sent to machines that grind away sharp edges and set the finish of the edges. Before hardening or insulation, the glass is washed and inspected. Workers don't have to touch each panel as often when they are all tied to one system. This makes chips and scratches less likely. Any of these moving tools must follow OSHA safety rules.
Industries and Buyer Needs
People who buy from us work for architectural glass and window companies, curtain wall and system integrators, companies that make furniture, shower doors, and partitions, and companies that make sintered stone or artificial stone. There are different reasons why each group buys. Engineers check specs and make sure everything works together. Plant managers look for output and lower labor costs. The purchasing teams look at the total cost of ownership, which includes price, installation, training, and upkeep. Finance then gives the go-ahead for bigger orders. Terms of the guarantee, delivery time, and OEM or ODM customization are also important. We put together technical data for engineers and make sure that buyers understand the business terms.
HSL-LSX4228 Glass Cutting Line
When cutting, the HSL-LSX4228 shows how table-based handling works. There are three tables that are used: one to load, one to cut, and one to break. It works with Optima software, which is used to plan layouts for glass cutting. You can put the rail above or below ground, and you can change how the 2+2 stops are set up to fit your plant. There are four arms on each side. Glass can be up to 4200 x 2800 mm (165 x 110 inches) in size. Send us your glass sizes and daily amount, and we'll talk about the plan with you.
Conclusion
A glass transport table line combines loading, cutting, breaking, edging, washing, inspecting, and storing. It's more than just a belt because it can align, lift, move, and sense. It has a frame, touch surfaces, drives, PLC controls, and placement devices that all work together to keep the panels flat and scratch-free. How strong and soft the system needs to be depends on the glass weight and coating. The line can run continuously or in steps, and it can be fully automated, partially automated, or run by hand. Along with the specifications, buyers should think about output, total cost of ownership, spare parts, delivery, and customization. These are all things that the HSL-LSX4228 has: three tables, Optima software, two+two stations, and a maximum glass size of 4200 x 2800 mm.
FAQ
1. What does a glass transport table line include?
A glass transport table line includes a rigid frame, rollers or belts, drive motors, sensors, PLC controls, and positioning tools like centering units and side guides. Depending on your glass and layout, you can choose between lifting, transferring, vacuum, and air-cushion support.
2. What is the maximum glass size of the HSL-LSX4228?
As big as 4200 x 2800 mm (165 x 110 inches), the HSL-LSX4228 can handle it. It comes with a cutting table, a breaking table, and a loading table. The rail can go above or below ground.
3. How long does a purchase usually take?
Most of the time, one machine makes a decision in a few weeks. It usually takes three to six months to set up a full production line or a custom system. This is because there needs to be technical review, site visits, and financial approval. A deposit plus final payment and the balance due are common ways to pay, or an overseas order can be paid for with a Letter of Credit.
Request a Glass Transport Table Line Quote from HUASHIL
Shandong Huashil Automation Technology Co., LTD does research and development, makes machines, and sells them. They have been exporting for years. Customers all over the world trust us because of our cutting-edge technology, consistent quality, and friendly service. If you are looking for a new or upgraded glass transport table line provider, HUASHIL can look at the sizes of the glass you need, how much you use each day, and how your plant is set up. You can send information about your project to salescathy@sdhuashil.com for more information.
References
1. ASTM International, Standard Specification for Flat Glass (ASTM C1036), 2021
2. ASTM International, Standard Specification for Heat-Treated Flat Glass (ASTM C1048), 2018
3. American National Standards Institute, Safety Glazing Materials Used in Buildings (ANSI Z97.1), 2015
4. Occupational Safety and Health Administration, Safeguarding Equipment and Protecting Employees from Amputations (OSHA 3170), 2007
5. Royal Society of Chemistry, Introduction to Glass Science and Technology (J. E. Shelby), 2020
6. Bansal and Doremus, Handbook of Glass Properties, 1986
