Precision tile cutting tools are at the heart of modern ceramic and stone production. They offer amazing accuracy that guarantees professional-grade finishes in a wide range of uses. Today's B2B buying world is competitive. That's why production managers who want to get the best results need to know about the technology features that help make cutting more precise. It has become easier to meet the needs of the industry now that large tile cutting machines are becoming more common. These machines can handle big ceramic pieces, sintered stone, and architectural panels with perfect precision. We look at the important technical changes and machine features that have a direct effect on cutting performance. This helps people who buy things make good choices that fit with their needs and quality standards for production.
Understanding Precision Tile Cutting: Core Concepts and Challenges
The precision of cutting rests on consistently getting the same results, with as little waste and difference in size as possible. Today, precision cutting means keeping limits within ±0.1mm on a range of tile materials, from fragile ceramics to heavy, thick slabs of sintered stone. The problems become clearer when working with bigger forms, because even small movements or problems with alignment can cause big mistakes in size.
Material-Specific Cutting Requirements
Different tile materials have their own problems that make it harder to cut them accurately. Natural stone needs certain blades to get clean lines, and porcelain tiles need cutting speeds that are under control to keep them from breaking. Sintered stone is used more and more in building projects, but it needs large tile cutting machine tools that can handle widths from 3mm to 20mm and keep the cuts straight across the whole surface.
Scale-Related Precision Challenges
When you work with tiles that are too big, things get more complicated in a way that old-fashioned cutting methods can't fix. Large tiles that are 1200x2400mm or larger need better machine steadiness and more advanced control systems. The longer cuts make any technical issues more noticeable, which is why precision control systems are needed to keep the accuracy throughout the cutting process.
Essential Features That Improve Accuracy in Large Tile Cutting Machines
When you combine multiple technologies so that they work together, you can get really high precision in cutting. When cutting large-format materials, modern industrial cutting systems use advanced controls that deal with the unique problems of the job.
Advanced Control Systems and Automation

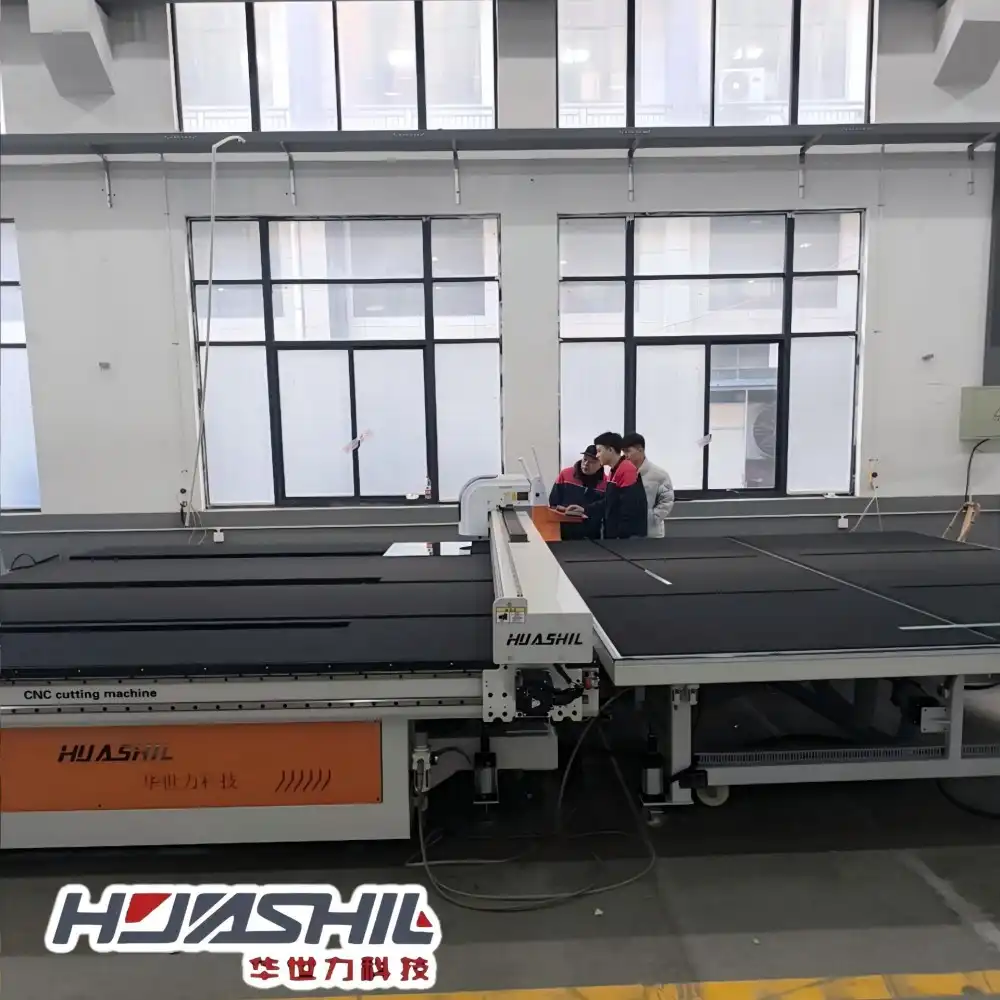

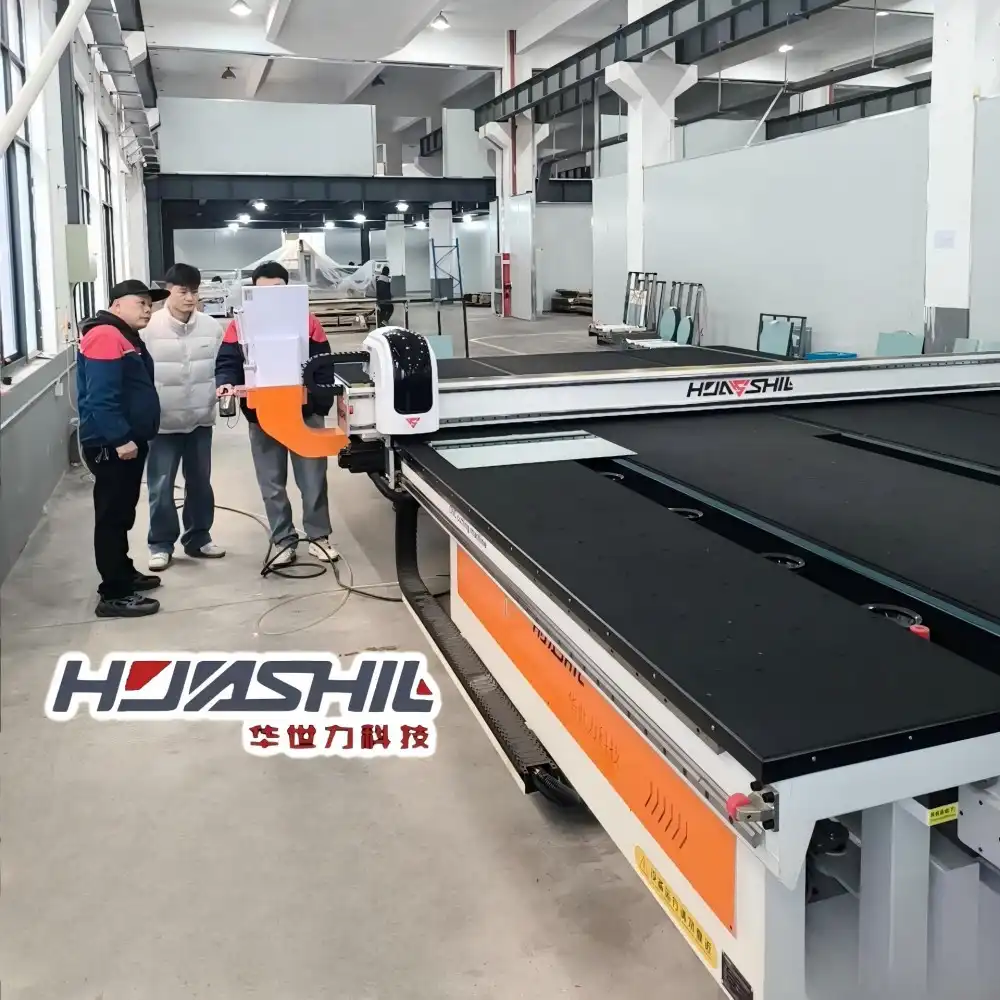

The HSL-CNC2716 model is an example of cutting-edge control technology for a large tile cutting machine. Its EOS-CNC system can handle tiles with thicknesses from 3 mm to 18 mm and dimensions up to 2700 mm by 1600 mm. This method automatically controls pressure and changes the cutting force based on how thick and dense the material is. This makes sure that all tile types have the same results. The built-in edge finder means you don't have to measure by hand, which gets rid of mistakes. Also, the air float system lowers friction and stops scratches when moving the material around.
Precision Guidance and Measurement Systems
Laser-guided cutting systems show the user where to cut, which makes them more accurate and lowers the time needed to get ready to work. Digital measurement tools get rid of mistakes in math and help people switch between jobs quickly. These guide systems are especially useful for working with costly materials, since mistakes in cutting them can lead to major losses of money.
Mechanical Stability and Vibration Control
Strong machine frames made of precisely machined parts keep movement to a minimum during cutting operations. Vibration calming systems make sure that the cutting motion is smooth, which has a direct effect on the quality of the edge and the accuracy of the dimensions. When you work with big tiles that create strong cutting forces, these mechanical changes become very important.
Comparing Cutting Technologies: Large Tile Cutting Machines vs Alternatives
It is easier for buying teams to choose the right cutting technology for their needs when they know how the different technologies work. At the industrial level, they need to find a balance between accuracy, output, and cost. They can do this with the right tools.
Automated vs Manual Cutting Systems
Automated cutting systems are perfect for settings where a lot of production is needed because they always get the same results, no matter how skilled the person operating them is. Even though they are cheaper at first, manual cutting methods can't match the accuracy and consistency of CNC-controlled systems for large-format materials. The HSL-CNC2716's automatic feature cuts out human factors that usually cause differences in cutting.
Wet vs Dry Cutting Methods
Wet cutting methods used in a large tile cutting machine keep the blade cool and stop a lot of dust from forming, which gives you better edge quality. The cooling effect keeps materials from bending and breaking due to heat and extends the life of blades. While dry cutting is an easy way to do things, it might hurt the quality of the edge on thick materials such as solid stone. The choice of ways relies on the type of material, how much needs to be made, and the infrastructure of the building.
Maintenance and Safety Practices to Sustain Cutting Accuracy
Systematic upkeep routines that look after both hardware and software parts are needed to keep up cutting precision. Regular testing makes sure that measurements are correct, and preventive maintenance stops sharpness from degrading over time.
Calibration and Measurement Verification
Calibrating the measurement tools every month keeps the correctness of the dimensions within the range that has been set. Digital systems need to be checked against approved reference standards to make sure they keep working correctly. Before it has an impact on the quality of production, the EOS-CNC control system's monitoring features can spot measurement shift.
Blade Maintenance and Selection
Choosing the right blade has a big effect on how well and how accurately you can cut. When diamond-tipped blades with the right kind of tip are used on the right kind of material, they work best. Regularly checking the blade and sticking to a replacement plan stops the quality from dropping and keeps the cutting performance steady.
Guide to Choosing the Best Large Tile Cutting Machine for Precision and Reliability
Choosing the right cutting tools depends on several things that affect both short-term and long-term success. The technical skills, support infrastructure, and total cost of ownership must all be taken into account when making a choice.
Technical Specification Evaluation
Key parameters are the highest cutting dimensions, thickness capacity, and how advanced the control system is for a large tile cutting machine. The HSL-CNC2716 has a 2700x1600mm capacity that meets the needs of most building tiles, and a width range of 3–18mm that works with a variety of material specs. The EOS-CNC control system has advanced automatic features that make training easier for operators.
Support and Service Infrastructure
Dependable technical help becomes very important for keeping production schedules and machine performance. Looking at what a provider can do, such as having parts on hand, training programs, and online diagnostic support, helps make sure the business's long-term operational success. Technical training and quick-response service networks are part of HUASHIL's full support system.
Conclusion
Advanced control systems, strong mechanical design, and good operating practices all working together make precise tile cutting possible. Large-format tiles are processed with specialized tools that can handle the difficult job of cutting large materials while still keeping the correct size of each piece. The HSL-CNC2716 is an example of what today's technology can do; it features automatic, precise control and systems that can handle all kinds of materials. When you choose equipment, you need to balance technical skills with working needs. This way, the equipment works right away and stays reliable over time. In competitive factory settings, the amount of money spent on precision cutting technology eventually affects how quickly and how well products are made.
FAQ
Q1: What thickness range can modern large tile cutting machines handle effectively?
A: Advanced machines like the HSL-CNC2716 can process materials from 3-18mm thickness, covering most ceramic, porcelain, and sintered stone applications used in architectural and decorative projects.
Q2: How does automatic pressure control improve cutting accuracy?
A: Automatic pressure control adjusts cutting force based on material density and thickness, preventing blade deflection and ensuring consistent cut quality across different tile materials without manual adjustment.
Q3: What role does the air flotation system play in precision cutting?
A: Air flotation systems reduce friction between the tile and cutting table, preventing surface scratches while ensuring smooth material movement that maintains cutting alignment and dimensional accuracy.
