For glass fabrication firms, architectural glazing companies, and decorative glass makers, a stained glass cutting machine is a very important investment. When these high-tech devices have problems, production schedules are pushed back, quality standards drop, and expenses go up. Knowing how to find and fix common problems with your stained glass cutting machine will help it work better and keep it from going down for long periods of time. To keep these precise tools cutting accurately and working reliably in a variety of glass cutting situations, they need to be troubleshot in a systematic way.
Understanding Your Stained Glass Cutting Machine
Key Parts of Your Stained Glass Cutting Machine and What They Do
Modern glass cutting machines work by using complex systems that all work together perfectly. Diamond-tipped wheels or specific cutting tools are part of the cutting head assembly. These tools are made to score glass surfaces with great accuracy. The pneumatic pressure system controls the cutting force and changes it automatically based on the thickness and qualities of the glass. Your machine's servo motor drives make sure that it moves smoothly along the cutting paths you set, and that it keeps a steady pace throughout the cutting process.
The control system is like the brain of the operation. It takes cutting patterns from CAD files or optimization software and processes them. Operators can enter cutting parameters, keep an eye on production progress, and get diagnostic information through touch screen interfaces. Knowing these basic parts will help you find possible failure points and make it easier to fix problems when they come up.
Different Kinds of Stained Glass Cutting Machines

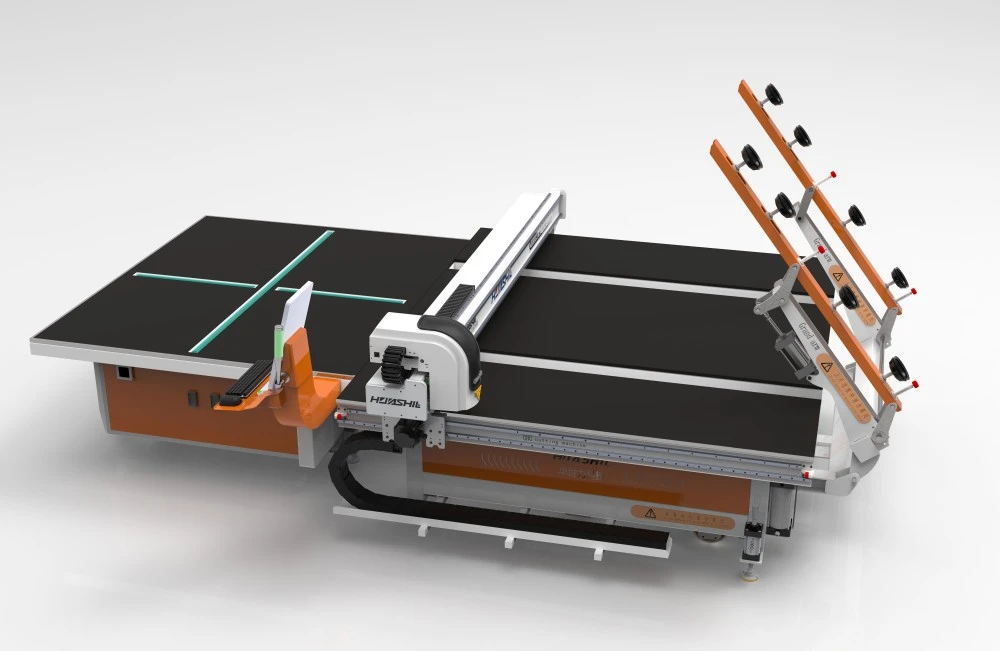

There are many different ways to cut glass in factories, from semi-automatic table methods to completely automated production lines. Manual cutting tables are great for custom projects and small-batch production because they let operators set the cutting rates and pressures directly. Semi-automatic systems combine loading by hand with computerized cutting patterns. This strikes a balance between operator control and mechanical accuracy.

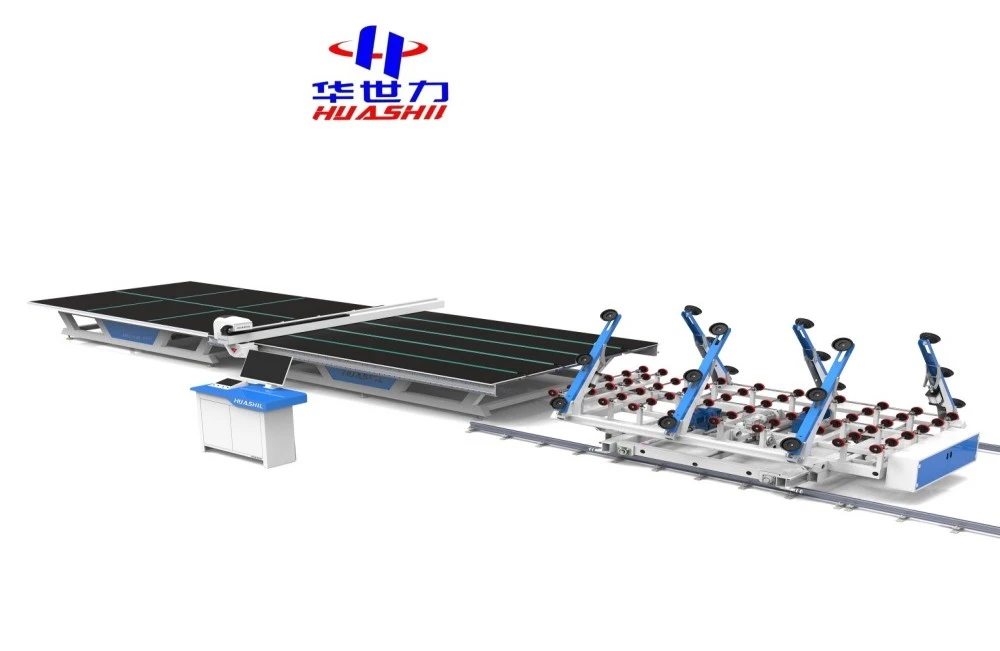

Fully automatic glass cutting lines combine material handling, cutting, breaking, and sorting into smooth manufacturing processes. These modern devices can automatically cut shapes, optimize straight lines, and cut vinyl film for specific uses. Every sort of equipment has its own set of problems that need to be solved in a certain way and with certain maintenance procedures.
Finding Problems That Happen a Lot
The machine won't start
Problems with the power supply often stop stained glass cutting machines from starting up. Check the main power connections and the circuit breakers to see whether they are tripped before you start troubleshooting. Emergency stop buttons may still be pressed from previous actions, which can block normal startup routines. Check the main control panel for trouble messages or warning lights that provide you particular diagnostic information.
You need to carefully check all of the electrical connections in the system for loose terminals, broken wires, or corroded contacts. For pneumatic parts to work well, the compressed air supply system needs to keep the right pressure levels. When the air pressure drops too low, safety interlocks stop the machine from working until the pressure is restored to a safe level. Also, make sure that all of the safety guards and protective panels are in the right place and firmly fastened. Many machines have safety switches that stop them from working when coverings are taken off.
Wrong Cuts
Problems with cutting accuracy usually come from instruments that are worn out or not aligned correctly. To keep the cutting head in the right position with the glass surface, it needs to be calibrated on a regular basis. When the blade wears down, it causes uneven scoring depths, which results in poor break quality and incorrect dimensions. Regularly checking the blades and replacing them when they need to be done will keep these quality problems from hurting production productivity.
Checking the accuracy of linear encoders, making sure the servo motor is in the right place, and making sure that the cutting paths match the set dimensions are all part of machine calibration. Over time, cutting accuracy can be affected by things like changes in temperature and vibrations in the environment. Using precision measuring equipment to set up regular calibration schedules makes sure that the cutting quality is the same and cuts down on material waste caused by dimensional errors.
Advice on Safety and Maintenance
Regular Maintenance Habits
Preventive maintenance plans greatly increase the lifespan of equipment and cut down on unexpected malfunctions. Cleaning routines done every day get rid of glass particles and other debris that build up around cutting mechanisms and guide rails. These particles can cause precision parts to wear out too soon and make machines run less smoothly. Lubricating linear bearings and drive mechanisms once a week keeps them working at their best and stops them from rusting in humid conditions.
To make sure that everything works properly, below are the most important maintenance tasks:
- To keep glass shards from building up on cutting tables and vacuum systems, clean them every day. This could damage precision surfaces or clog filtration systems.
- Check the cutting wheels once a week for signs of wear, chips, or contaminants that could impair the quality of the scoring and the consistency of the cuts.
- To keep the linear guide rails and ball screws moving smoothly and to stop them from wearing down too quickly, use the lubricants that the manufacturer recommends once a month. Check the pneumatic system parts every three months for air leaks, dirty filters, and adequate pressure regulation.
These maintenance tasks work together to keep machines running at their best and find problems before they create production delays. Regular maintenance schedules also help businesses keep their warranties and get help from the manufacturer.
Precautions for Safety
When using glass cutting tools, it's important to follow stringent safety rules to protect both people and equipment. Safety glasses, cut-resistant gloves, and steel-toed shoes are all examples of personal protective equipment that can help keep you safe from accidents caused by glass. Machine operators need to get full instruction on how to handle glass safely, how to follow lockout/tagout rules, and how to handle emergencies.
Organizing your workspace is really important for keeping things safe. Clear paths around equipment keep people safe and make sure they can get to it quickly in an emergency. Regular safety assessments find possible dangers and make sure that protective systems work as they should.
Things to Think About When Comparing Stained Glass Cutting Machines
Choosing the right stained glass cutting machines demands a lot of thought about the needs of the production and the capabilities of the tools. Different glass thicknesses and quality standards are only appropriate for cutting with certain levels of precision. For architectural uses, modern machines can get tolerances of ±0.1 mm and keep the edge quality the same throughout long production runs.
The speed of a machine affects how much it can make and how much it costs to make. High-performance systems can handle several glass sheets at once and can load and unload them automatically. Advanced machines may automatically change the speed and pressure based on the qualities of the glass, making the best cutting settings for each type of material without any help from the operator.
Benefits and Costs
When looking at the cost of glass cutting equipment, you need to think about more than just the price you pay to buy it. Automated systems cut down on labor expenses while making cuts more consistent and using materials more efficiently. Modern machines use complex optimization algorithms to minimize waste during nesting processes, which allows them to use more than 85% of the glass they cut.
Long-term savings on operations include lower costs for rework, more flexible production schedules, and more consistent product quality. Facilities usually get their money back on equipment expenditures in two to three years by making things more efficient and lowering the cost of production. Energy-efficient designs help the environment and cut down on operating costs even further.
HUASHIL: Your Reliable Partner for Glass Cutting Tools
Shandong HUASHIL Automation Technology Co., LTD is a top maker of automated glass processing equipment for modern manufacturing settings. Because we have a lot of experience in research, development, and production, we can guarantee that each machine fulfills strict quality standards and works reliably in a wide range of situations. We work with architectural glass fabricators, curtain wall manufacturers, and decorative glass makers all around the world.
Our dedication to new ideas keeps cutting technologies, control systems, and automation capabilities getting better all the time. Advanced engineering knowledge and thorough testing procedures make sure that every machine works the same way, even when the production conditions are tough.

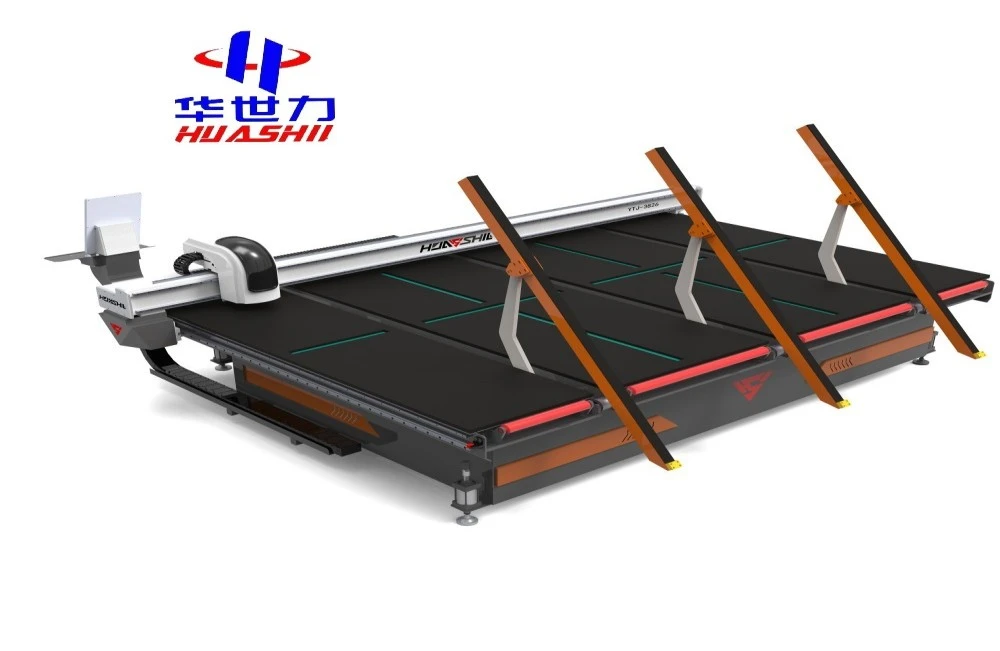

HUASHIL has a wide range of glass cutting solutions, from semi-automatic cutting tables to fully integrated production lines. Our stained glass cutting machines can handle complex shapes while still meeting very high standards of accuracy. Specialized features include the ability to cut glass with vinyl film and Low-E glass edge deletion devices made for energy-efficient glazing applications.
Custom engineering services meet the needs of each production process with OEM and ODM solutions that are made to fit those needs. Our technical team works directly with clients to create cutting solutions that operate well with their current production workflows and get the most out of efficiency gains.
In conclusion, to fix glass cutting equipment effectively, you need to use a systematic method that combines technical expertise with regular maintenance. Knowing about frequent problems and how to fix them keeps production running smoothly and keeps quality standards high. Regular maintenance, good operator training, and easy access to trustworthy technical assistance all help keep equipment running at its best for a long time. HUASHIL's dedication to making high-quality products and providing full customer support is what makes glass cutting work well in a wide range of industrial settings.
Questions that people often ask
Q1: What should I do if my machine stops operating all of a sudden?
A: First, check the emergency stop button and make sure that all safety systems have been reset correctly. Look for error codes or warning messages on the control panel that point out specific problems. Before trying to restart, check the electrical connections, the supply of compressed air, and make sure that all of the protective covers are in place.
Q2: How often should I clean and care for my stained glass cutting machine?
A: Most operational problems can be avoided by cleaning and checking things visually every day. To keep things running at their best, moving parts should be lubricated once a week and calibrated once a month. To make sure that the machine works reliably, it should be fully maintained every three months, which includes checking the electrical connections and adjusting the belt tension.
Q3: What are the benefits of utilizing a stained glass cutting machine instead of other methods?
A: Automated cutting technologies are more accurate, consistent, and faster than cutting by hand. Modern machines cut down on material waste by using optimum nesting algorithms and getting rid of mistakes made by people when cutting. Mechanized cutting procedures also lower labor costs and make the work safer.
Experience HUASHIL Technology for precise glass cutting.
HUASHIL offers state-of-the-art glass processing systems that improve your production capacities while maintaining high quality requirements. Our full line of automated cutting equipment can meet a wide range of manufacturing needs, from architectural glazing to decorative glass applications. We are a trusted maker of stained glass cutting machines, and we offer technical know-how, dependable equipment, and full support services to help you run your business as well as possible.
Find out how our cutting-edge automation technologies can help you make more while spending less. Our skilled technical team is ready to look at your individual needs and suggest the best cutting solutions for your manufacturing goals. Email us at salescathy@sdhuashil.com for more information about our products and to set up a one-on-one consultation.
Visit huashil.com to learn more about our full range of glass processing equipment and automation systems. There, you'll find detailed product information and technical resources.
References
1. Smith, J.A. "Advanced Glass Processing Techniques in Modern Manufacturing." Industrial Glass Technology Journal 45(3): 78–92, 2023.
2. Chen, L.M. and Rodriguez, P.R. (2022). "Automated Glass Cutting Systems: Performance Analysis and Optimization Strategies." Manufacturing Automation Review, 18(7), 134-148.
3. Thompson, K.D. (2023). "Troubleshooting Guide for Industrial Glass Processing Equipment." The second edition of the Glass Industry Technical Manual from Glass Publications International.
4. Williams, S.J. et al. (2022). "Guidelines for Maintaining Precision Glass Cutting Machines." Engineering for Reliable Equipment, 29(4), 67–81.
5. Anderson, M.B. (2023). "Safety Issues in Automated Glass Manufacturing Settings." Industrial Safety Quarterly, 51(2), 23-37.
6. Lee, H.Y. and Park, D.K. (2022). "Cost-Benefit Analysis of Automated and Manual Glass Cutting Operations." Review of Manufacturing Economics, 33(8), 112-127.
